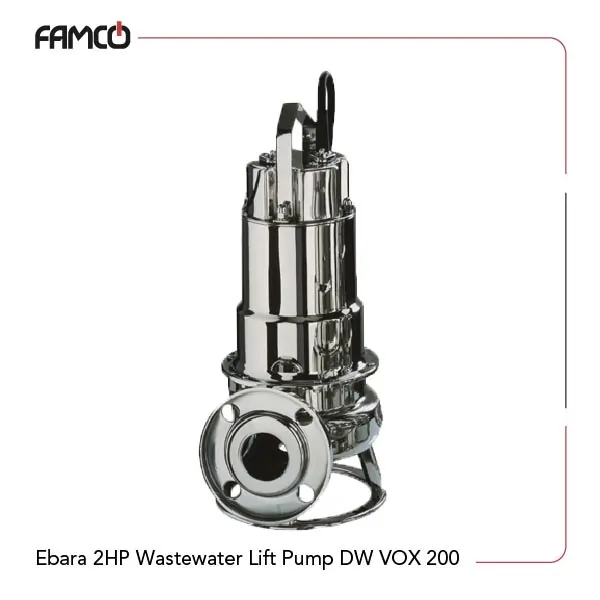

Ebara 2HP Wastewater Lift Pump DW VOX 200 Specifications
Ebara 2 HP wastewater lift pump DW VOX 200 is designed for handling dirty and sewage water. This series of Ebara wastewater pumps operates efficiently at a maximum temperature of 40°C and can handle solids up to 50 mm in size. Deeper installation capability with a maximum immersion depth of 7 meters means more flexibility in placement in challenging environments. This Ebara sewage pump features a rotation speed of approximately 2800 min-1, keeping performance effective still. It has an insulation class of F and a protection degree of IP X8, which is durable and safe even in wet environments. Operating at a frequency of 50 Hz, it delivers a power output of 1.5 kW (2 HP) and achieves a maximum flow rate of 42 m³/h. The head range is between 1.6 to 13.8 meters, and it operates on a three-phase voltage of 400 ±10%.
| Specification | Value |
| Type of liquid | Dirty water, sewage water |
| Max temperature (°C) | 40 |
| Max solids size (mm) | 50 spherical |
| Maximum immersion (m) | 7 |
| No. of Poles | 2 |
| Rotation speed (min-1) | ≈ 2800 |
| Insulation Class | F |
| Protection degree | IP X8 |
| Frequency (Hz) | 50 |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Max. flow rate (m3/h) | 42 |
| Head (m) | 1.6-13.8 |
| Three-phase voltage (V) | 400 ±10% |
Ebara 2HP Wastewater Lift Pump DW VOX 200 Materials
- Casing: AISI 304
- Impeller: AISI 304
- Casing cover: AISI 304
- Mechanical Shaft Seal on Pump Side: SiC/SiC/NBR
- Mechanical Shaft Seal on Motor side: Carbon/Ceramic/NBR
Ebara 2HP Wastewater Lift Pump DW VOX 200 Technical Data
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 |
| M3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 |
| Head (m) | 13.8 | 12.5 | 11.2 | 9.8 | 8.3 | 6.4 | 4.2 | 1.6 |

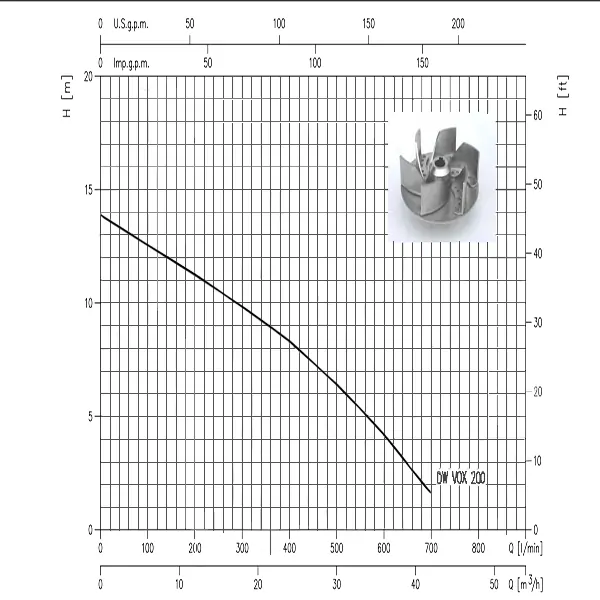

Ebara 2HP Wastewater Lift Pump DW VOX 200 Performance Curve
Ebara 2HP Wastewater Lift Pump DW VOX 200 Applications
- Wastewater treatment facilities
- Construction site dewatering
- Flood control and drainage
- Agricultural irrigation systems
Ebara 2HP Wastewater Lift Pump DW VOX 200 Benefits
- Handles dirty and sewage water efficiently
- Robust design for challenging conditions
- High flow rate for quick water movement
- Versatile applications across various industries
Ebara 2HP Wastewater Lift Pump DW VOX 200 Price List
| No. | Name | Price |
| 1 | Ebara 2HP Wastewater Lift Pump DW VOX 200 Price | Contact us |
