Ebara 2HP Submersible Wastewater Lift Pump (80)65DVS51.5 Specifications
Ebara 2HP submersible wastewater lift pump (80)65DVS51.5 operates with a power of 1.5 kW (2 HP) and features a cast iron impeller for durability. It can handle a maximum flow rate of 550 liters per minute, equivalent to 33 cubic meters per hour, making it suitable for various high-demand applications. The pump delivers a maximum head of 15.8 meters, allowing it to efficiently move liquids over considerable heights. It is designed to work with liquids up to 40°C, ensuring versatility in different environments. The mechanical seal combines SiC/SiC/NBR on the impeller side and Carbon/ceramic/NBR on the motor side, providing reliable sealing performance. With a 2-pole motor running at 2850 rpm and a frequency of 50 Hz, this Ebara sewage pump is optimized for steady operation. It supports a voltage range of 280-415V and is powered by a three-phase system, which enhances efficiency. The protection degree of IP 68 ensures the pump is dust-tight and waterproof, suitable for outdoor or harsh conditions. Additionally, it has built-in overload protection to prevent damage during overload situations, ensuring longevity and safety during operation.
| Specification | Value |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Maximum flow rate (l/min) | 550 |
| Maximum flow rate (m3/h) | 33 |
| Maximum delivery head (m) | 15.8 |
| Maximum liquid temperature (°C) | 40 |
| Impeller | Cast iron |
| Mechanical seal | SiC/SiC/NBR (impeller side), Carbon/ceramic/NBR (Motor side) |
| Poles | 2-pole |
| Protection degree | IP68 |
| Speed (rpm) | 2850 |
| Frequency (Hz) | 50 |
| Voltage (V) | 280-415 |
| Phase | Three-phase |
| Overload protection | Built-in |

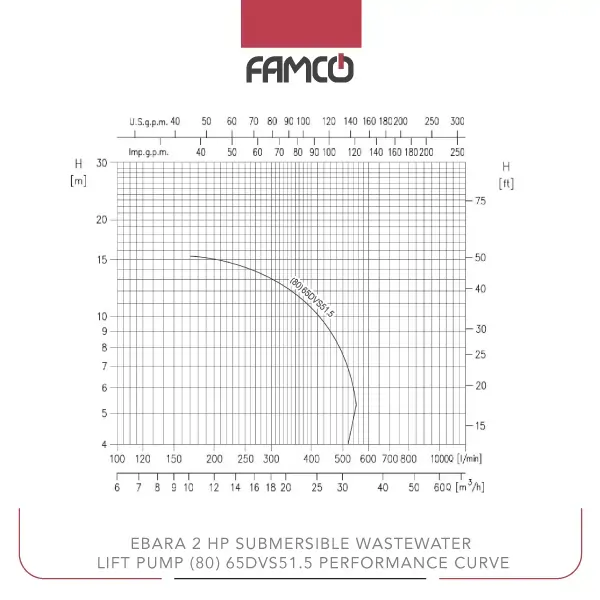

Ebara 2HP Submersible Wastewater Lift Pump (80)65DVS51.5 Performance Data
| Flow rate (l/min) | 0 | 100 | 150 | 200 | 300 | 400 | 500 | 550 |
| Flow rate (m3/h) | 0 | 6 | 9 | 12 | 18 | 24 | 30 | 33 |
| H (m) | 18.6 | – | 15.8 | 14.9 | 13.2 | 10.9 | 7.6 | 5.3 |
Ebara 2HP Submersible Wastewater Lift Pump (80)65DVS51.5 Applications
- Industrial water transfer
- Agricultural irrigation systems
- Municipal drainage and sewage management
- Construction site water removal
Ebara 2HP Submersible Wastewater Lift Pump (80)65DVS51.5 Benefits
- High flow capacity for demanding tasks
- Durable cast iron construction ensures long service life
- Waterproof IP 68 protection for outdoor use
- Built-in overload protection enhances safety and reliability
Ebara 2HP Submersible Wastewater Lift Pump (80)65DVS51.5 Price List
| No. | Name | Price |
| 1 | Ebara 2HP Submersible Wastewater Lift Pump (80)65DVS51.5 Price | Contact us |
There are no reviews yet.
