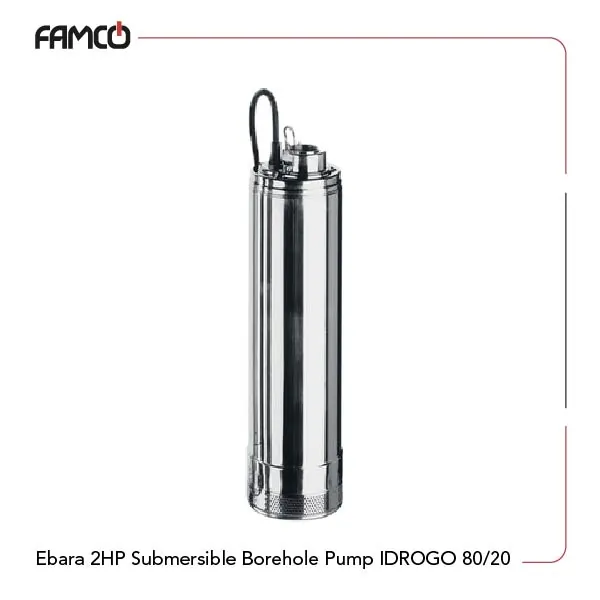

Ebara 2HP Submersible Borehole Pump IDROGO 80/20 Specifications
Ebara 1.5HP submersible borehole pump IDROGO 80/20 operates at a maximum temperature of +40°C and handles solids up to 2.5 mm in size. The casing is made from EN 1.4301 (AISI 304) stainless steel for added durability and resistance to corrosion. The impeller inside this product is reinforced with sturdy materials, such as PPE and PS glass fiber. This Ebara submersible pump features a dual shaft seal system: SiC/Carbon/NBR on the pump side and Carbon/Ceramic/NBR on the motor side to provide reliable sealing all the way through. This top-notch product uses white mineral oil (Esso Marcol 152) for lubrication, with a capacity of 90 cc. The motor also operates at a speed of approximately 2800 rpm and has an insulation class of F working in a three-phase configuration only. The pump’s protection degree of IP 68 is suitable for submerged applications. The power output is 1.5 kW (2 HP), and it operates on three-phase (230-400V) systems. This pump’s ability to handle solids and operate under various voltage conditions have made it a versatile choice for many users. Its optional float switch feature adds convenience in the automation of operations to enhance its usability in different scenarios.
| Specification | Value |
| Maximum liquid temperature (°C) | +40 |
| Max solids size (mm) | 2.5 |
| No. of Poles | 2 |
| Rotation speed (rpm) | ≈2800 |
| Insulation Class | Class F |
| Protection degree | IP 68 |
| Frequency (Hz) | 50 |
| Float Switch | Optional |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Voltage in three-phase (V) | 230-400 |
| Head (m) | 22.8-74.4 |
| Height (mm) | 590 |
Ebara 2HP Submersible Borehole Pump IDROGO 80/20 Materials
- Casing: EN 1.4301 (AISI 304)
- Impeller: PPE+PS glass fiber reinforced
- Shaft seal on Pump side: SiC/ Carbon /NBR
- Shaft seal on Motor side: Carbon/Ceramic/NBR
- Lubricating liquid: White mineral oil, Esso Marcol 152 (90 cc)
- Motor frame: AISI 304

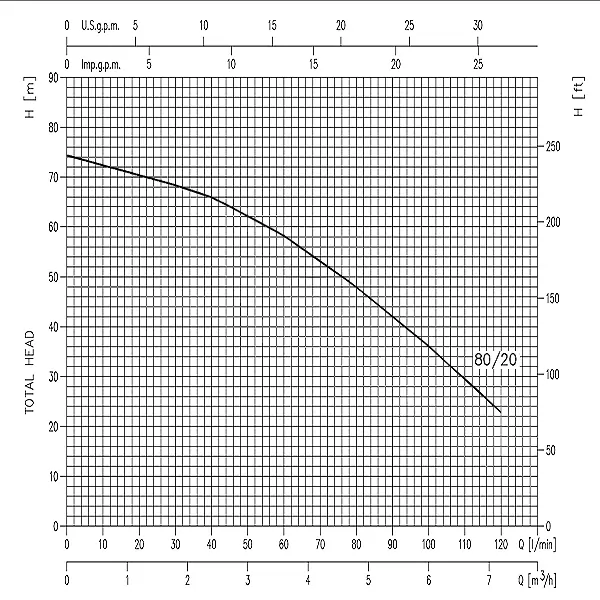

Ebara 2HP Submersible Borehole Pump IDROGO 80/20 Performance Curve
| l/min | 0 | 20 | 30 | 40 | 60 | 80 | 100 | 120 |
| m3 /h | 0 | 1.2 | 1.8 | 2.4 | 3.6 | 4.8 | 6 | 7.2 |
| H (m) | 74.4 | – | 68.4 | 66 | 58.2 | 48 | 34.8 | 22.8 |
Ebara 2HP Submersible Borehole Pump IDROGO 80/20 Applications
- Industrial fluid transfer
- Wastewater management
- Irrigation systems
- Cooling systems
Ebara 1HP Submersible Borehole Pump IDROGO 80/20 Benefits
- Durable stainless steel construction
- High efficiency with low maintenance
- Versatile voltage compatibility
- Optional float switch for automatic operation
Ebara 2HP Submersible Borehole Pump IDROGO 80/20 Price List
| No. | Name | Price |
| 1 | Ebara 2HP Submersible Borehole Pump IDROGO 80/20 Price | Contact us |
