Ebara 25 HP Wastewater Lift Pump 300DL518.5

18.5 kW (25 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Ebara 25 HP Wastewater Lift Pump 300DL518.5

This Ebara pump is a 25 HP ultimate solution for wastewater management. It is ideal for transferring sewage in industrial, municipal, or commercial settings. The pump’s construction with cast iron ensures durability and resistance to corrosion. Its 660 m³/h high flow rate and 16.6-meter head height make it suitable for even the large-scale sewage systems. The pump’s design allows it to operate efficiently at a maximum temperature of 40°C and handle solids up to 70 mm. With IP68 protection, it can be submerged safely. The motor’s 4 poles and high insulation class have greatly contributed to its stable operation and longevity.

Related Products

Ebara 25 HP Wastewater Lift Pump 300DL518.5 Specifications

This sewage pump is designed to handle wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and an impeller, which is why this Ebara submersible pump lasts so well under pressure. Built with high-quality mechanical seals on both the impeller and motor sides, made from SiC/SiC/NBR and Carbon/Ceramic/NBR, respectively, this Ebara sewage pump withstands leaks and harsh conditions. The motor has 4 poles, running at 1450 rpm, with an insulation class of F for safety and durability. Its protection degree is IP68, making this pumping solution fully protected against dust and water ingress. The pump operates on a 50 Hz frequency with a voltage range of 380-415V or 400-415V, providing reliable power. It delivers a maximum flow rate of 11,000 liters per minute and can generate a head height of up to 16.6 meters, making a suitable solution out of this Ebara pump for various sewage transfer applications. The power consumption is 18.5 kW or 25 HP, ensuring strong performance for demanding tasks.

Ebara 25 HP Wastewater Lift Pump 300DL518.5



Specification Value
Type of liquid sewage
Max. temperature (°C) 40
Max. solids size (mm) 70
Max. immersion depth (m) 7
Casing material cast iron
Impeller cast iron
Mechanical seal on impeller side SiC/SiC/NBR
Mechanical seal on motor side Carbon/Ceramic/NBR
Number of poles 4
Rotation speed (rpm) 1450
Insulation class F
Protection degree IP68
Frequency (Hz) 50
Voltage (V) 380-415, 400-415
Power (kW) 18.5
Power (HP) 25
Max. flow rate (l/min) 11000
Max. head height (m) 16.6



Ebara 25 HP Wastewater Lift Pump 300DL518.5 Performance Data

l/min 0 3000 4000 5000 6000 7000 8000 9000 10000 11000
m³/h 0 180 240 300 360 420 480 540 600 660
Head (m) 16.6 12.8 11.7 10.7 9.7 8.8 7.9 7.0 6.0 4.8

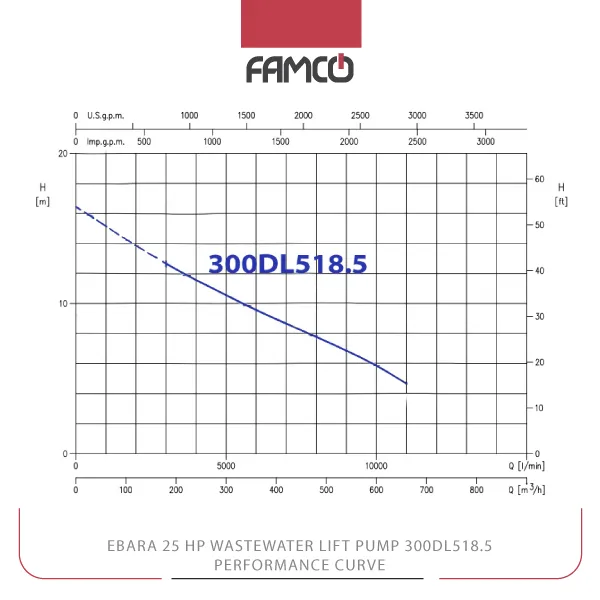

Ebara 25 HP Wastewater Lift Pump 300DL518.5 Performance Curve



Ebara 25 HP Wastewater Lift Pump 300DL518.5 Dimensions

Dimensions (mm) Weight (kg)
A B C D E F H J L1 CL (m) 440
1135 618 818 317 595 668 1131 440 450 10



Ebara 25 HP Wastewater Lift Pump 300DL518.5 Dimensions



Ebara 25 HP Wastewater Lift Pump 300DL518.5 Applications

  • Municipal sewage treatment plants
  • Industrial wastewater management
  • Commercial building sewage systems
  • Underground sewage transfer



Ebara 25 HP Wastewater Lift Pump 300DL518.5 Benefits

  • High flow capacity for large volumes
  • Durable cast iron construction
  • Reliable operation with IP68 protection
  • Efficient handling of solids up to 70 mm



Ebara 25 HP Wastewater Lift Pump 300DL518.5 Price List

No. Name Price
1 Ebara 25 HP Wastewater Lift Pump 300DL518.5 Price Contact us
