Ebara 25 HP Wastewater Lift Pump 250DL518.5

18.5 kW (25 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Ebara 25 HP Wastewater Lift Pump 250DL518.5

This 25 HP sewage pump has a solid place on the top list of wastewater management pumps. It operates when submerged up to 7 meters, running on a three-phase voltage. The pump is built with cast iron components. It features a powerful motor with 4 poles, capable of delivering high flow rates and head heights. Its IP68 protection makes it perfect for underwater use, and the mechanical seals ensure long-term sealing performance. Ideal for municipal, industrial, and residential sewage systems, this pump offers efficiency and resilience for demanding applications.

Related Products

Ebara 25 HP Wastewater Lift Pump 250DL518.5 Specifications

This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The Ebara sewage pump available here features a cast-iron impeller and casing. It is equipped with mechanical seals made of SiC/SiC/NBR on the impeller side and Carbon/Ceramic/NBR on the motor side, providing reliable sealing and reducing leakage risks. The motor has 4 poles, running at 1450 rpm, with an insulation class of F for safety and durability. Its protection degree is IP68, making it suitable for underwater applications. The pump operates on a frequency of 50 Hz and voltage options of 380-415V or 400-415V. It delivers a maximum flow rate of 7500 liters per minute and can achieve a head height of up to 27 meters, making this Ebara submersible pump ideal for various sewage and wastewater management tasks. The power consumption is 18.5 kW or 25 HP, providing strong performance for demanding applications.

Ebara 25 HP Wastewater Lift Pump 250DL518.5



Specification Value
Type of liquid sewage
Max. temperature (° C) 40
Max. solids size (mm) 70
Max. immersion depth (m) 7
Casing material cast iron
Impeller cast iron
Mechanical seal on impeller side SiC/SiC/NBR
Mechanical seal on motor side Carbon/Ceramic/NBR
Number of poles 4
Rotation speed (rpm) 1450
Insulation class F
Protection degree IP68
Frequency (Hz) 50
Voltage (V) 380-415, 400-415
Power (kW) 18.5
Power (HP) 25
Max. flow rate (l/min) 7500
Max. head height (m) 27

Ebara 25 HP Wastewater Lift Pump 250DL518.5 Performance Data

l/min 0 2000 3000 4000 5000 6000 6500 7000 7500
m³/h 0 120 180 240 300 360 390 420 450
Head (m) 27 22.2 19.7 17 14.4 11.5 10.1 8.7 7.3

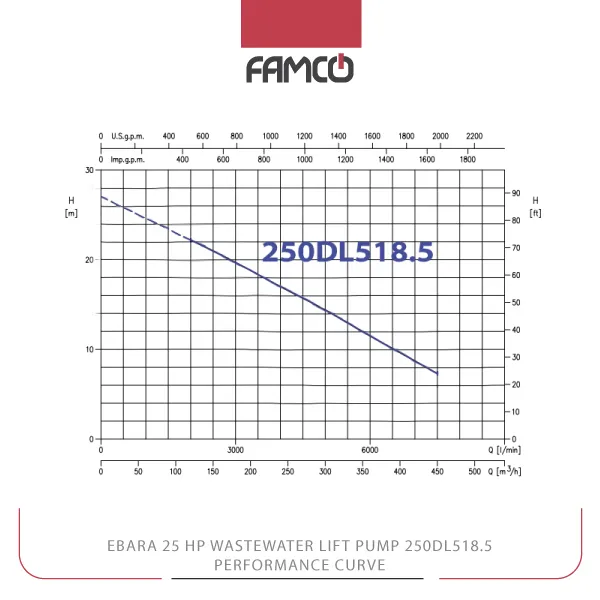

Ebara 25 HP Wastewater Lift Pump 250DL518.5 Performance Curve



Ebara 25 HP Wastewater Lift Pump 250DL518.5 Dimensions

Dimensions (mm) Weight (kg)
A B C D E F H J L1 CL (m) 400
1007 549 730 277 530 646 1089 400 400 10



Ebara 25 HP Wastewater Lift Pump 250DL518.5 Dimensions



Ebara 25 HP Wastewater Lift Pump 250DL518.5 Applications

  • Municipal sewage treatment plants
  • Industrial wastewater management
  • Residential sewage systems
  • Flood control and drainage projects



Ebara 25 HP Wastewater Lift Pump 250DL518.5 Benefits

  • High durability with cast iron construction
  • Reliable sealing with advanced mechanical seals
  • High flow rate and head height for demanding tasks
  • Suitable for submerged operation up to 7 meters



Ebara 25 HP Wastewater Lift Pump 250DL518.5 Price List

No. Name Price
1 Ebara 25 HP Wastewater Lift Pump 250DL518.5 Price Contact us
Brand

Maximum Liquid Temperature (°C)

Maximum immersion depth (m)

Impeller Material

Number of Poles

Speed (RPM)

Insulation Class

Degree of Protection

Frequency (Hz)

Voltage (V)

Power (kW)

Power (HP)

Maximum Flow Rate (L/min)

Maximum Delivery Head (m)
