Ebara 25 HP Wastewater Lift Pump 200DL518.5 Specifications
This sewage pump is designed to handle dirty liquids with a maximum temperature of 40°C. It features a durable cast iron casing and impeller. The pump is equipped with a mechanical seal on the impeller side made of SiC/SiC/NBR, and on the motor side, it uses Carbon/Ceramic/NBR for reliable sealing. It operates with a four-pole motor, running at 1450 rpm, and has an insulation class of F for safety and efficiency. The protection degree is IP68, turning this Ebara submersible pump into the most suitable choice for submerged applications up to 7 meters deep. It supports a voltage range of 380-415V or 400-415V at 50Hz frequency. With a power output of 18.5 kW (25 HP), it can move up to 5500 liters of liquid per minute, reaching a maximum head height of 26.5 meters. This Ebara sewage pump is ideal for sewage and wastewater management, especially in industrial or municipal settings where durability and high flow capacity are essential.
| Specification | Value |
| Type of liquid | sewage |
| Max. temperature (°C) | 40 |
| Max. immersion depth (m) | 7 |
| Casing material | cast iron |
| Impeller | cast iron |
| Mechanical seal on impeller side | SiC/SiC/NBR |
| Mechanical seal on motor side | Carbon/Ceramic/NBR |
| Number of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Voltage (V) | [‘380-415’, ‘400-415’] |
| Power (kW) | 18.5 |
| Power (HP) | 25 |
| Max. flow rate (l/min) | 5500 |
| Max. head height (m) | 26.5 |

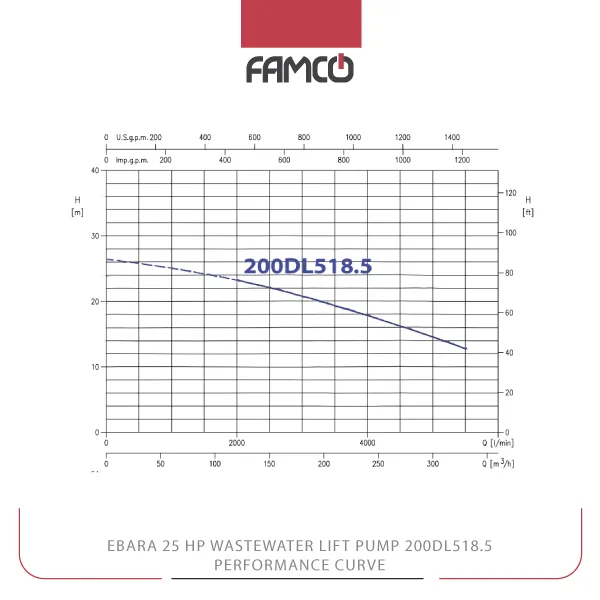

Ebara 25 HP Wastewater Lift Pump 200DL518.5 Performance Data
| l/min | 0 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 | 5000 | 5500 |
| m³/h | 0 | 60 | 90 | 120 | 150 | 180 | 240 | 270 | 300 | 330 |
| Head (m) | 26.5 | – | – | 23.3 | 22.2 | 20.9 | 17.9 | 16.3 | 14.6 | 12.8 |
Ebara 25 HP Wastewater Lift Pump 200DL518.5 Dimensions
| Dimensions (mm) | Weight (kg) | |||||||||
| A | B | C | D | E | F | H | J | L1 | CL (m) | 305 |
| 932 | 512 | 675 | 257 | 510 | 415 | 1001 | 360 | 285 | 10 | |
Ebara 25 HP Wastewater Lift Pump 200DL518.5 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Commercial building drainage systems
- Flood control and water removal
Ebara 25 HP Wastewater Lift Pump 200DL518.5 Benefits
- High flow capacity for large volume transfer
- Durable cast iron construction for long-term use
- Reliable sealing system prevents leaks
- Suitable for submerged operation up to 7 meters
Ebara 25 HP Wastewater Lift Pump 200DL518.5 Price List
| No. | Name | Price |
| 1 | Ebara 25 HP Wastewater Lift Pump 200DL518.5 Price | Contact us |
There are no reviews yet.
