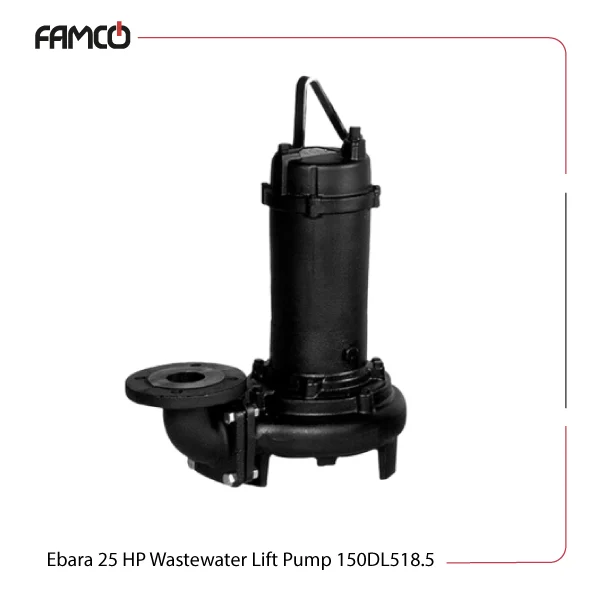

Ebara 25 HP Wastewater Lift Pump 150DL518.5 Specifications
Up to 70 mm in size can easily pass through this Ebara wastewater pump. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller, ensuring longevity and resistance to corrosion. It is equipped with high-quality mechanical seals on both the impeller and motor sides, made from SiC/SiC/NBR and Carbon/Ceramic/NBR respectively, to prevent leaks and withstand harsh conditions. The motor has four poles, running at 1450 rpm, with an insulation class of F for safety and durability. This Ebara submersible pump supports a three-phase voltage range of 380-415V or 400-415V, suitable for industrial settings. The pump’s protection degree is IP68, making it fully protected against dust and water ingress. It delivers a maximum flow rate of 4000 liters per minute and can achieve a head height of up to 32.5 meters, making this Ebara sewage pump ideal for various sewage and wastewater applications. Its power consumption is 18.5 kW or 25 HP, providing robust performance for demanding tasks. The pump’s design ensures reliable operation in challenging environments, making it suitable for municipal, industrial, and commercial sewage systems.
| Specification | Value |
| Type of liquid | sewage |
| Max. temperature (°C) | 40 |
| Max. solids size (mm) | 70 |
| Max. immersion depth (m) | 7 |
| Casing material | cast iron |
| Impeller | cast iron |
| Mechanical seal on impeller side | SiC/SiC/NBR |
| Mechanical seal on motor side | Carbon/Ceramic/NBR |
| Number of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Three-Phase Voltage (V) | 380-415, 400-415 |
| Power (kW) | 18.5 |
| Power (HP) | 25 |
| Max. flow rate (l/min) | 4000 |
| Max. head height (m) | 32.5 |

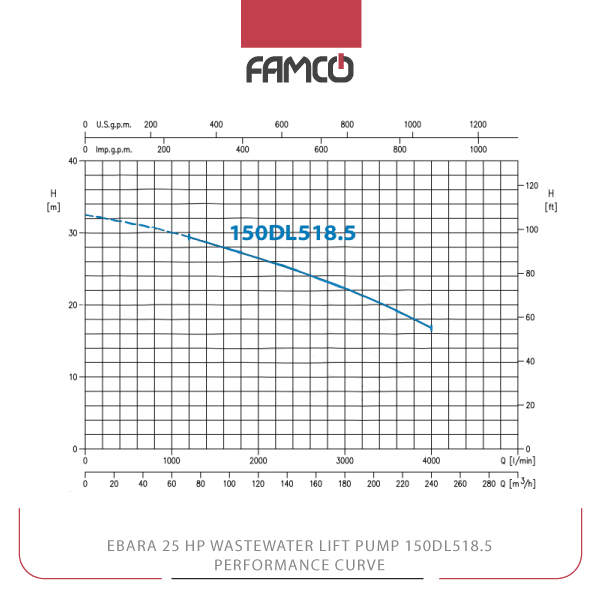

Ebara 25 HP Wastewater Lift Pump 150DL518.5 Performance Data
| l/min | 0 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 3200 | 3400 | 3500 | 3600 | 3800 | 400 |
| m³/h | 0 | 60 | 72 | 90 | 120 | 150 | 180 | 192 | 204 | 210 | 216 | 228 | 240 |
| Head (m) | 32.5 | – | 29.4 | 28.3 | 26.5 | 24.5 | 22.3 | 21.3 | 20.3 | 19.8 | 19.2 | 18.0 | 16.8 |

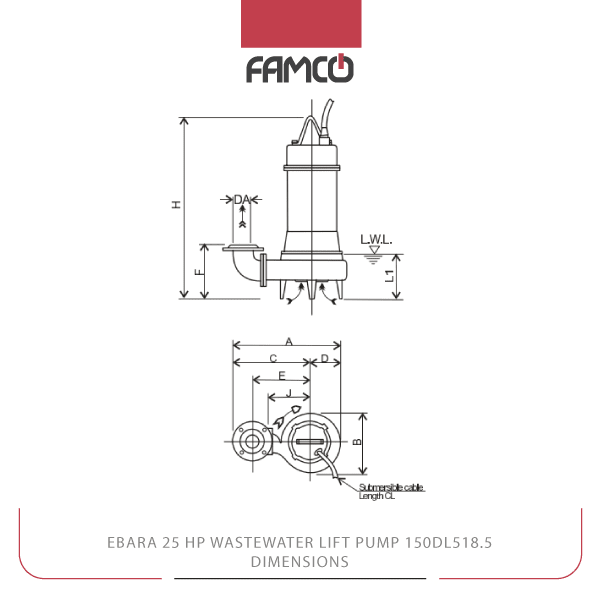

Ebara 25 HP Wastewater Lift Pump 150DL518.5 Dimensions
| Dimensions (mm) | Weight (kg) | |||||||||
| A | B | C | D | E | F | H | J | L1 | CL (m) | 300 |
| 848 | 476 | 610 | 238 | 470 | 381 | 979 | 340 | 245 | 10 | |
Ebara 25 HP Wastewater Lift Pump 150DL518.5 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Commercial building sewage systems
- Flood control and drainage projects
Ebara 25 HP Wastewater Lift Pump 150DL518.5 Benefits
- Durable cast iron construction for long-lasting use
- High flow rate and head height for efficient pumping
- Reliable mechanical seals prevent leaks
- Suitable for solids up to 70 mm, handling tough wastewater
Ebara 25 HP Wastewater Lift Pump 150DL518.5 Price List
| No. | Name | Price |
| 1 | Ebara 25 HP Wastewater Lift Pump 150DL518.5 Price | Contact us |
