Ebara 20 HP Wastewater Lift Pump 250DL515 Specifications
This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller, ensuring longevity and resistance to corrosion. Leaks and water ingress are minimized in these Ebara submersible pumps thanks to their mechanical seals on both the impeller and motor sides, made from SiC/SiC/NBR and Carbon/Ceramic/NBR, respectively, to prevent leaks and withstand harsh conditions. The motor has 4 poles, running at 1450 rpm, with an insulation class F for safety and durability. It supports a frequency of 50 Hz and voltage options of 380-415V or 400-415V, making it suitable for various power supplies. With a power output of 15 kW (20 HP), the available Ebara sewage pump can achieve a maximum flow rate of 7500 liters per minute and a head height of 25.2 meters, making it ideal for large-scale sewage and wastewater applications.
Specification | Value |
Type of liquid | sewage |
Max. temperature (° C) | 40 |
Max. solids size (mm) | 70 |
Max. immersion depth (m) | 7 |
Casing material | cast iron |
Impeller | cast iron |
Mechanical seal on impeller side | SiC/SiC/NBR |
Mechanical seal on motor side | Carbon/Ceramic/NBR |
Number of poles | 4 |
Rotation speed (rpm) | 1450 |
Insulation class | F |
Protection degree | IP68 |
Frequency (Hz) | 50 |
Voltage (V) | 380-415, 400-415 |
Power (kW) | 15 |
Power (HP) | 20 |
Max. flow rate (l/min) | 7500 |
Max. head height (m) | 25.2 |
Ebara 20 HP Wastewater Lift Pump 250DL515 Performance Data
l/min | 0 | 2000 | 3000 | 4000 | 5000 | 6000 | 6500 | 7000 | 7500 |
m³/h | 0 | 120 | 180 | 240 | 300 | 360 | 390 | 420 | 450 |
Head (m) | 25.2 | 19.5 | 16.8 | 14.2 | 11.8 | 9.2 | 8.0 | 6.9 | 6.0 |

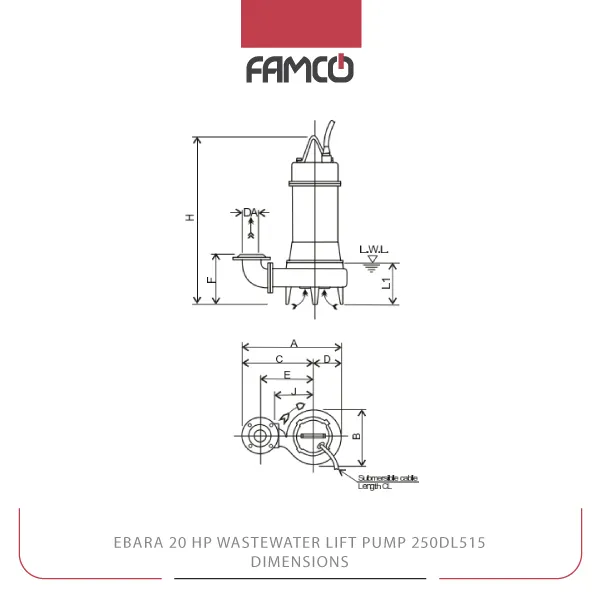

Ebara 20 HP Wastewater Lift Pump 250DL515 Dimensions
Dimensions (mm) | Weight (kg) | |||||||||
A | B | C | D | E | F | H | J | L1 | CL (m) | 380 |
1007 | 549 | 730 | 277 | 530 | 646 | 1086 | 400 | 400 | 10 |
Ebara 20 HP Wastewater Lift Pump 250DL515 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Large-scale drainage systems
- Flood control and water transfer
Ebara 20 HP Wastewater Lift Pump 250DL515 Benefits
- Durable cast iron construction for long-lasting use
- High flow rate and head height for efficient operation
- Reliable mechanical seals prevent leaks
- IP68 protection for harsh environments
Ebara 20 HP Wastewater Lift Pump 250DL515 Price List
No. | Name | Price |
1 | Ebara 20 HP Wastewater Lift Pump 250DL515 Price | Contact us |
