Ebara 20 HP Wastewater Lift Pump 200DL515 Specifications
This sewage pump is designed to handle dirty liquids with solids up to 70 mm in size. It operates at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller, ensuring longevity and resistance to corrosion. It uses high-quality mechanical seals on both the impeller and motor sides, with materials like SiC, ceramic, NBR, and carbon for reliable sealing. The Ebara sewage pump’s motor has 4 poles, running at 1450 rpm, with an insulation class of F for safety and efficiency. It is protected with an IP68 rating, making this Ebara submersible pump suitable for harsh environments. The pump operates on a 50 Hz frequency with a voltage range of 380-415V or 400-415V, providing a power output of 15 kW or 20 HP. It can move up to 5500 liters of liquid per minute and achieve a maximum head height of 23.9 meters, making it ideal for various sewage and wastewater applications.
| Specification | Value |
| Type of liquid | sewage |
| Max. temperature (°C) | 40 |
| Max. solids size (mm) | 70 |
| Max. immersion depth (m) | 7 |
| Casing material | cast iron |
| Impeller | cast iron |
| Mechanical seal on the impeller side | SiC/SiC/NBR |
| Mechanical seal on motor side | Carbon/Ceramic/NBR |
| Number of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Voltage (V) | 380-415, 400-415 |
| Power (kW) | 15 |
| Power (HP) | 20 |
| Max. flow rate (l/min) | 5500 |
| Max. head height (m) | 23.9 |

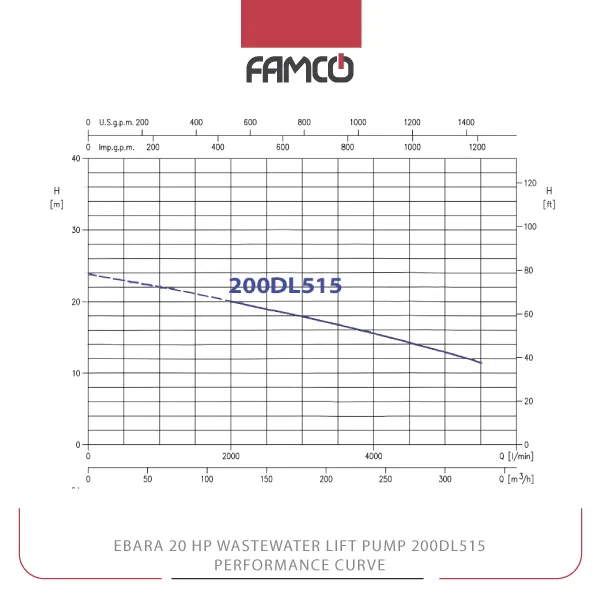

Ebara 20 HP Wastewater Lift Pump 200DL515 Performance Data
| l/min | 0 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 | 5000 | 5500 |
| m³/h | 0 | 60 | 90 | 120 | 150 | 180 | 240 | 270 | 300 | 330 |
| Head (m) | 23.9 | – | – | 20.1 | 19.0 | 17.9 | 15.6 | 14.3 | 13 | 11.5 |

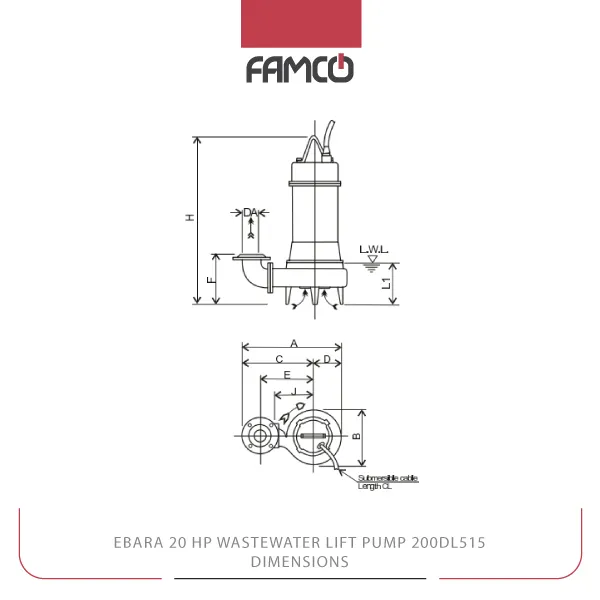

Ebara 20 HP Wastewater Lift Pump 200DL515 Dimensions
| Dimensions (mm) | Weight (kg) | |||||||||
| A | B | C | D | E | F | H | J | L1 | CL (m) | 260 |
| 896 | 479 | 655 | 241 | 490 | 411 | 995 | 340 | 285 | 10 | |
Ebara 20 HP Wastewater Lift Pump 200DL515 Applications
- Municipal sewage treatment plants
- Industrial wastewater transfer
- Residential sewage systems
- Flood drainage and water management
Ebara 20 HP Wastewater Lift Pump 200DL515 Benefits
- Durable cast iron construction for long-lasting use
- High flow capacity up to 5500 l/min
- Suitable for solids up to 70 mm in size
- Reliable operation with high protection rating IP68
Ebara 20 HP Wastewater Lift Pump 200DL515 Price List
| No. | Name | Price |
| 1 | Ebara 20 HP Wastewater Lift Pump 200DL515 Price | Contact us |
