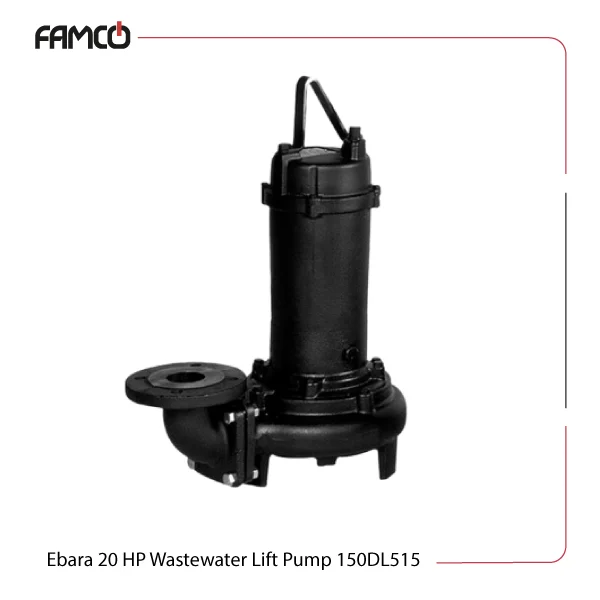

Ebara 20 HP Wastewater Lift Pump 150DL515 Specifications
This sewage pump is designed to handle dirty liquids with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller, so a lasting performance is promissed even in tough environments. Equipped with high-quality mechanical seals on both the impeller and motor sides, made from SiC/SiC/NBR and Carbon/Ceramic/NBR respectively, the 150DL515 Ebara submersible pump and withstand harsh conditions. The motor has 4 poles, running at 1450 rpm, with an insulation class of F for safety and durability. Its protection degree is IP68, making the Ebara sewage pumps fully protected against dust and water ingress. The pump operates on a 50 Hz frequency with a voltage range of 380-415V or 400-415V, suitable for industrial applications. It delivers a maximum flow rate of 3500 liters per minute and can generate a head height of up to 31.4 meters, making it ideal for sewage and wastewater management tasks. The power consumption is 15 kW or 20 HP, providing consistent performance for demanding pumping needs.
| Specification | Value |
| Type of liquid | sewage |
| Max. temperature (° C) | 40 |
| Max. solids size (mm) | 70 |
| Max. immersion depth (m) | 7 |
| Casing material | cast iron |
| Impeller | cast iron |
| Mechanical seal on impeller side | SiC/SiC/NBR |
| Mechanical seal on motor side | Carbon/Ceramic/NBR |
| Number of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Voltage (V) | 380-415, 400-415 |
| Power (kW) | 15 |
| Power (HP) | 20 |
| Max. flow rate (l/min) | 3500 |
| Max. head height (m) | 31.4 |

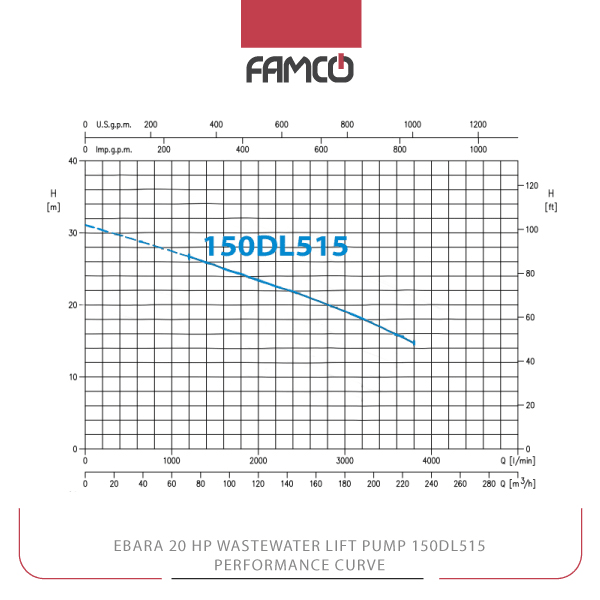

Ebara 20 HP Wastewater Lift Pump 150DL515 Performance Data
| l/min | 0 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 3200 | 3400 | 3500 | 3600 | 3800 |
| m³/h | 0 | 60 | 72 | 90 | 120 | 150 | 180 | 192 | 204 | 210 | 216 | 228 |
| Head (m) | 31.4 | – | 27 | 25.8 | 23.7 | 21.7 | 19.4 | 18.4 | 17.3 | 16.8 | 16.2 | 15 |
Ebara 20 HP Wastewater Lift Pump 150DL515 Dimensions
| Dimensions (mm) | Weight (kg) | |||||||||
| A | B | C | D | E | F | H | J | L1 | CL (m) | 237 |
| 810 | 438 | 590 | 220 | 450 | 377 | 972 | 320 | 245 | 10 | |
Ebara 20 HP Wastewater Lift Pump 150DL515 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Drainage systems in construction sites
- Flood control and water removal
Ebara 20 HP Wastewater Lift Pump 150DL515 Benefits
- High durability with cast iron casing and impeller
- Efficient handling of solids up to 70 mm
- Reliable mechanical seals for leak prevention
- Suitable for deep submersion up to 7 meters
Ebara 20 HP Wastewater Lift Pump 150DL515 Price List
| No. | Name | Price |
| 1 | Ebara 20 HP Wastewater Lift Pump 150DL515 Price | Contact us |
