Ebara 20 HP Cast Iron Wastewater Lift Pump 150DML515

15 kW (20 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Sewage pump Tags: Ebara Pumps, Ebara Submersible Pump

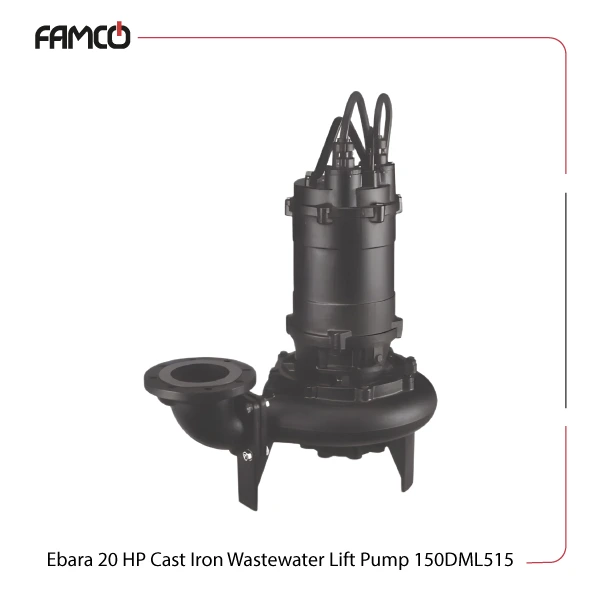

Overview of Ebara 20 HP Cast Iron Wastewater Lift Pump 150DML515

This 20 HP sewage pump, manufactured by Ebara, with a three-phase mode, delivers unparalleled wastewater management. With a maximum flow rate of 300 m3/h and a head height up to 35 meters, it is the one pump that handles large volumes of sewage efficiently. It is suitable for pumping sewage with solids up to 76 mm, which is handy in municipal, industrial, and residential wastewater systems. The pump’s sturdy cast iron impeller and high-quality mechanical seals ensure lasting performance and safety. Its IP68 protection degree and insulation class F make it resistant to tough conditions and moisture. The pump operates at around 1450 rpm, providing steady and efficient operation. Its compatibility with a three-phase power supply and high durability make it a popular choice for various sewage and wastewater applications.

Ebara 20 HP Cast Iron Wastewater Lift Pump 150DML515 Specifications

This sewage pump is designed to tolerate wastewater with solids up to 76 mm in size. The pump runs on a three-phase power supply of 380-415V, with a rotation speed of approximately 1450 rpm. It features a sturdy cast iron impeller and dual mechanical seals made of SiC/SiC/NBR on the impeller side and carbon/ceramic/NBR on the motor side to prevent leakage. These Ebara sewage pumps are praised for their immersion reaching 7 meters, while the temperature range they tolerate maxes at 40 °C. The pump has an insulation class F and an IP68 protection degree for harsh environments. It delivers a maximum flow rate of 300 cubic meters per hour and can generate a head height ranging from 8.6 to 35 meters for various sewage transfer applications.

Specification	Value
Type of liquid	sewage
Max. liquid temperature (°C)	40
Max. solids size (mm)	76
Max. immersion depth (m)	7
Three-phase voltage (V)	380-415
No. of poles	4
Rotation speed (rpm)	≈1450
Insulation class	F
Protection degree	IP68
Frequency (Hz)	50
Power (kW)	15
Power (HP)	20
Max. flow rate (m3/h)	300
Max. head (m)	8.6-35

Ebara 20 HP Cast Iron Wastewater Lift Pump 150DML515 Materials

Impellers: cast iron
Mechanical seal on impeller side: SiC/SiC/NBR
Mechanical seal on motor side: carbon/ceramic/NBR

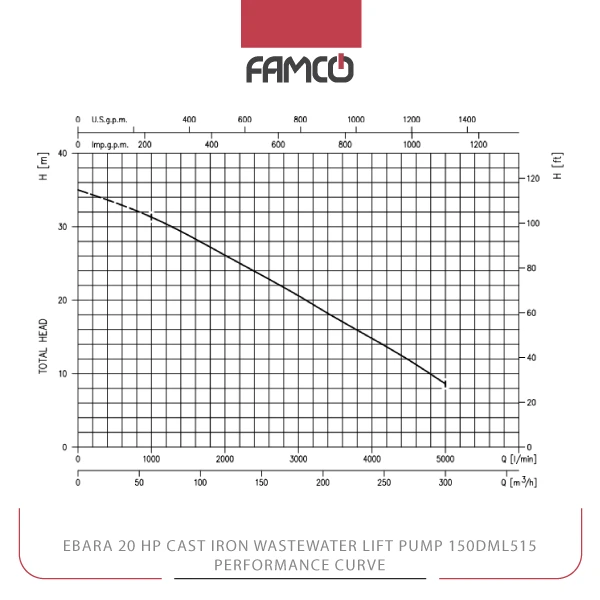

Ebara 20 HP Cast Iron Wastewater Lift Pump 150DML515 Performance Data

l/min	0	1000	2000	2500	3000	3400	4000	4500	5000
M3/h	0	60	120	150	180	204	240	270	300
Head (m)	35.0	31.3	26.1	23.4	20.6	18.2	14.8	11.9	8.6

Ebara 20 HP Cast Iron Wastewater Lift Pump 150DML515Applications

Municipal sewage treatment plants
Industrial wastewater transfer
Residential sewage systems
Flood control and drainage

Ebara 20 HP Cast Iron Wastewater Lift Pump 150DML515Benefits

Handles solids up to 76 mm for versatile use
High flow rate of 300 m3/h for efficient transfer
Durable cast iron impeller and seals for long life
Suitable for harsh environments with IP68 protection

Ebara 20 HP Cast Iron Wastewater Lift Pump 150DML515 Price List

No.	Name	Price
1	Ebara 20 HP Cast Iron Wastewater Lift Pump 150DML515 Price	Contact us

Brand	Ebara
Maximum Liquid Temperature (°C)	40
Maximum immersion depth (m)	7
Voltage (V)	380-415
Number of Poles	4
Speed (RPM)	1450
Insulation Class	F
Degree of Protection	IP68
Frequency (Hz)	50
Power (kW)	15
Power (HP)	20
Maximum Flow Rate (m3/h)	300
Maximum Delivery Head (m)	35
