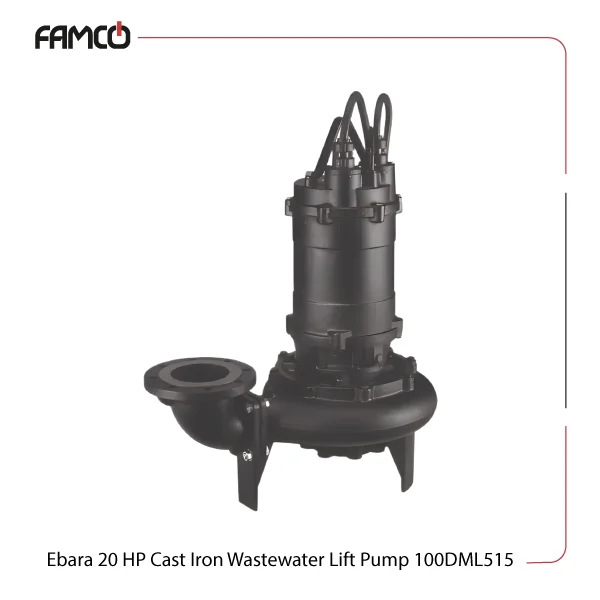

Ebara 20 HP Cast Iron Wastewater Lift Pump 100DML515 Specifications
This sewage pump is designed to handle dirty liquids with solids up to 76 mm in size. These Ebara sewage pumps operate efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump runs on a three-phase power supply of 380-415V and features a 4-pole motor rotating at approximately 1450 rpm. It has an insulation class F and an IP68 protection rating, making it suitable for harsh environments. The pump delivers a maximum flow rate of 150 cubic meters per hour and can generate a head between 23.4 and 35 meters. Its impellers are made of durable cast iron, and the mechanical seals are composed of SiC/SiC/NBR on the impeller side and carbon/ceramic/NBR on the motor side, ensuring reliable sealing and longevity.
| Specification | Value |
| Type of liquid | sewage |
| Max. liquid temperature (°C) | 40 |
| Max. solids size (mm) | 76 |
| Max. immersion depth (m) | 7 |
| Three-phase voltage (V) | 380-415 |
| No. of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Power (kW) | 15 |
| Power (HP) | 20 |
| Max. flow rate (m3/h) | 150 |
| Max. head (m) | 23.4-35.0 |
Ebara 20 HP Cast Iron Wastewater Lift Pump 100DML515 Materials
- Impellers: cast iron
- Mechanical seal on impeller side: SiC/SiC/NBR
- Mechanical seal on motor side: carbon/ceramic/NBR

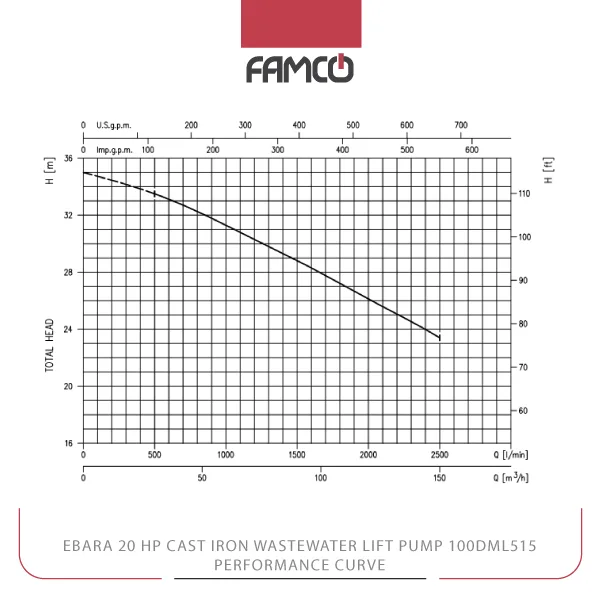

Ebara 20 HP Cast Iron Wastewater Lift Pump 100DML515 Performance Data
| l/min | 0 | 500 | 1000 | 1300 | 1600 | 1900 | 2200 | 2400 | 2500 |
| M3/h | 0 | 30 | 60 | 78 | 96 | 114 | 132 | 144 | 150 |
| Head (m) | 35.0 | 33.5 | 31.3 | 29.8 | 28.3 | 26.7 | 25.1 | 24.0 | 23.4 |
Ebara 20 HP Cast Iron Wastewater Lift Pump 100DML515 Applications
- Wastewater and sewage transfer in treatment plants
- Industrial waste management systems
- Drainage and flood control projects
- Municipal sewage systems
Ebara 20 HP Cast Iron Wastewater Lift Pump 100DML515 Benefits
- Handles solids up to 76 mm for versatile use
- High flow rate of 150 m3/h for efficient pumping
- Durable cast iron impellers withstand harsh conditions
- IP68 protection ensures reliable operation underwater
Ebara 20 HP Cast Iron Wastewater Lift Pump 100DML515 Price List
| No. | Name | Price |
| 1 | Ebara 20 HP Cast Iron Wastewater Lift Pump 100DML515 Price | Contact us |
