Ebara 2 HP Wastewater Lift Pump Best5 Specifications
This pump is designed for handling both clean and dirty water at various applications. Like the rest of Ebara pumps, this one can operate at a notable maximum temperature (35℃) and can handle suspended particles up to 10mm in size. Considering this product belongs to the category of sewage pumps, its maximum immersion depth of up to 7 meters is required since it has to tolerate deeper applications. The casing, impeller, and casing cover are all made from durable AISI 304 stainless steel to make it corrosion resistant. The shaft seal features a combination of SiC and NBR on the pump side and Carbon/Ceramic on the motor side for an overall reliable delivery on operation. This submersible pump has an rated insulation class of F and a protection degree of IP68 to work well at wet environments. The dimensions of this compact yet forceful product are are 377 mm to 340 mm, with a weight of 13.5 kg for easy installation and maintenance. Its efficient power rating and high protection degree make it a reliable choice for continuous operation in challenging conditions. This model is provided in a three-phase configuration.
| Specification | Value |
| Type of liquid | clean/dirty water |
| Max. Temperature (℃) | 35 |
| Max. Solids size (mm) | 10 (suspended particles) |
| Max immersion (m) | 7 |
| No. of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| H (m) | 5-19 |
| Power rating (kW) | 1.5 |
| Power rating (HP) | 2 |
| Frequency (Hz) | 50 |
| Three-Phase Voltage (V) | 400 |
Ebara 2 HP Wastewater Lift Pump Best5 Materials
- Casing: AISI 304
- Impeller: AISI 304
- Casing cover: AISI 304
- Shaft seal on pump side: SiC/ SiC/NBR
- Shaft seal on motor side: Carbon/Ceramic/NBR
- Shaft: AISI 303 (wet extension)
- Mechanical seal: NBR
Ebara 2 HP Wastewater Lift Pump Best5 Dimensions and Weight
| Dimensions (mm) | H | 377 |
| H1 | 340 | |
| Weight (kg) | 13.5 | |
Ebara 2 HP Wastewater Lift Pump Best5 Technical Data
| l/min | 0 | 20 | 40 | 80 | 120 | 160 | 170 | 200 | 260 | 280 | 300 | 330 | 360 |
| m3 /h | 0 | 1.2 | 2.4 | 4.8 | 7.2 | 9.6 | 10.2 | 12 | 15.6 | 16.8 | 18 | 19.8 | 21.6 |
| H (m) | 19 | 18.4 | 17.7 | 16.1 | 14.5 | 12.8 | 12.5 | 11.4 | 9 | 8 | 7.4 | 6 | 5 |

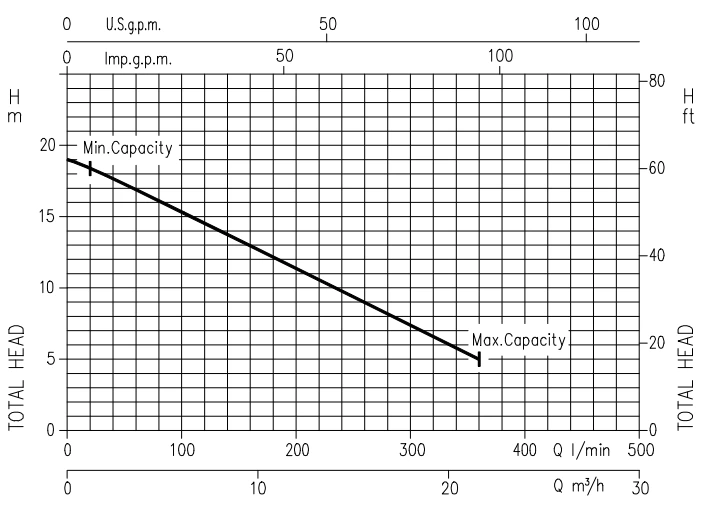

Ebara 2 HP Wastewater Lift Pump Best5 Performance Curve
Ebara 2 HP Wastewater Lift Pump Best5 Applications
- Wastewater management in industrial settings
- Irrigation systems for agriculture
- Construction site dewatering
- Flood control and drainage systems
Ebara 2 HP Wastewater Lift Pump Best5 Benefits
- Durable stainless steel construction for longevity
- Efficient operation with a high power rating
- Versatile for both clean and dirty water applications
- High protection degree ensures reliability in wet environments
Ebara 2 HP Wastewater Lift Pump Best5 Price List
| No. | Name | Price |
| 1 | Ebara 2 HP Wastewater Lift Pump Best5 Price | Contact us |
