Ebara 2 HP Wastewater Lift Pump 80DL51.5W/C Specifications
The 80DL51.5W/C Ebara pump motor has 4 poles, running at 1450 rpm, with an insulation class of F for safety and efficiency. It supports a frequency of 50 Hz and voltage options between 380-415V and 400-415V. Power-wise, it delivers 1.5 kW (2 HP), capable of pumping up to 900 liters per minute and achieving a maximum head height of 12.7 meters. This Ebara submersible pump is designed to handle dirty liquids with solids up to 70 mm in size. It operates at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast-iron casing and impeller. It is equipped with high-quality mechanical seals on both the impeller and motor sides, made from SiC/SiC/NBR and Carbon/Ceramic/NBR, in the same order, to prevent leaks and withstand harsh conditions. The pump’s protection degree is IP68, giving this Ebara sewage pump everything it requires for continuous submersion and outdoor use, especially in sewage and wastewater applications. Its robust construction and high-performance seals make it ideal for demanding environments where reliable and efficient sewage transfer is needed.
Specification | Value |
Type of liquid | sewage |
Max. temperature (° C) | 40 |
Max. solids size (mm) | 70 |
Max. immersion depth (m) | 7 |
Casing material | cast iron |
Impeller | cast iron |
Mechanical seal on impeller side | SiC/SiC/NBR |
Mechanical seal on motor side | Carbon/Ceramic/NBR |
Number of poles | 4 |
Rotation speed (rpm) | 1450 |
Insulation class | F |
Protection degree | IP68 |
Frequency (Hz) | 50 |
Voltage (V) | 380-415, 400-415 |
Power (kW) | 1.5 |
Power (HP) | 2 |
Max. flow rate (l/min) | 900 |
Max. head height (m) | 12.7 |

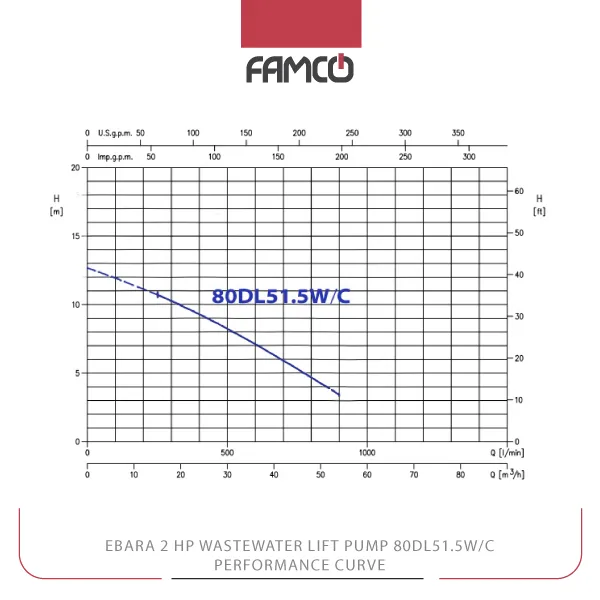

Ebara 2 HP Wastewater Lift Pump 80DL51.5W/C Performance Data
l/min | 0 | 100 | 250 | 300 | 400 | 500 | 700 | 900 |
m³/h | 0 | 6 | 15 | 18 | 24 | 30 | 42 | 54 |
Head (m) | 12.7 | – | 10.7 | 10.3 | 9.3 | 8.2 | 5.9 | 3.4 |

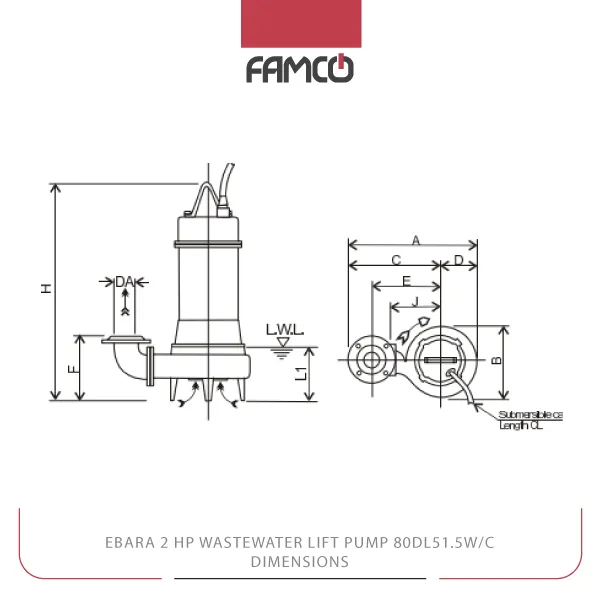

Ebara 2 HP Wastewater Lift Pump 80DL51.5W/C Dimensions
Dimensions (mm) | Weight (kg) | |||||||||
A | B | C | D | E | F | H | J | L1 | CL (m) | 55 |
524 | 292 | 378 | 146 | 285 | 220 | 597 | 210 | 165 | 10 |
Ebara 2 HP Wastewater Lift Pump 80DL51.5W/C Applications
- Wastewater and sewage transfer
- Drainage systems in residential and commercial buildings
- Industrial wastewater management
- Sewage treatment plants
Ebara 2 HP Wastewater Lift Pump 80DL51.5W/C Benefits
- Durable cast iron construction for long-lasting use
- High solids handling capacity up to 70 mm
- Reliable mechanical seals prevent leaks
- Suitable for submersion with IP68 protection
