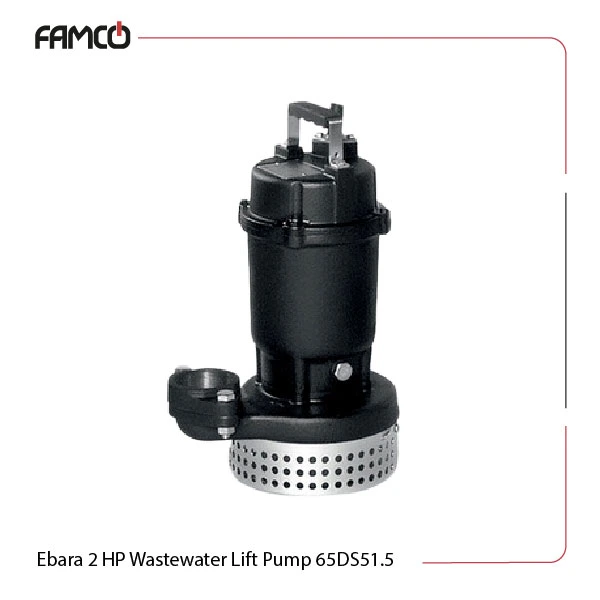

Ebara 2 HP Wastewater Lift Pump 65DS51.5 Specifications
This product features a semi-open impeller type with a strainer for efficient fluid movement. The shaft seal is oil lubricated, utilizing a single spring double mechanical seal for durability. The impeller, casing, and motor frame in this Ebara pump are all made from sturdy cast iron to provide strength and longevity. The shaft is constructed from Aisi 403, while the mechanical seals use high-quality materials like SiC and ceramic, all pointing to a sewage pump with sturdy spec. It has an insulation class of F and a protection degree of IP 68 to withstand harsh environments that submersible pumps often endure. The power rating is 1.5, with a voltage of 380-415V and a frequency of 50Hz. The product dimensions are well-defined, and it weighs 35 kg, ensuring stability during operation.
| Specification | Value |
| Motor Type | Three Phase air filled dry submersible |
| No. Of Poles | 2 |
| Rotation Speed (rpm) | ~2850 |
| Insulation class | F |
| Protection degree | IP 68 |
| Frequency | 50 |
| Voltage | 380-415 |
| Power (KW) | 1.5 |
| Power (HP) | 2 |
| H (m) | 6.6-18 |
| Flange Type | Round |
| Weight (kg) | 35 |
| *L.W.L (Low Water Level) | Operation is limited to 10 minutes at L.W.L, Operation is limited to 30 minutes with water level below top of motor |
Ebara 2 HP Wastewater Lift Pump 65DS51.5 Materials
- Impeller Type: Semi-Open (with Strainer)
- Shaft Seal Type: Oil Lubricated, Single Spring Double Mechanical Seal
- Impeller: cast iron
- Casing: cast iron
- Motor Frame: cast iron
- Shaft: Aisi 403
- Mechanical Seal of Impeller Side: SiC/SiC/NBR
- Mechanical Seal of Motor Side: Carbon/Ceramic/NBR
- Lubricant: Turbine Oil VG32 (SAE 10W/20W)
Ebara 2 HP Wastewater Lift Pump 65DS51.5 Technical Data
| Q (m3/h) | 0 | 150 | 200 | 250 | 300 | 400 | 433 | 450 | 467 | 473 | 483 | 500 | 550 | 580 | 600 |
| Q (l/min) | 0 | 9 | 12 | 15 | 18 | 24 | 26 | 27 | 28 | 28.4 | 29 | 30 | 33 | 34.8 | 36 |
| H (m) | 18 | 17.5 | 17.1 | 16.5 | 15.7 | 13.5 | 12.5 | 12 | 11 | 11.2 | 10.9 | 10.3 | 8.5 | 7.3 | 6.6 |

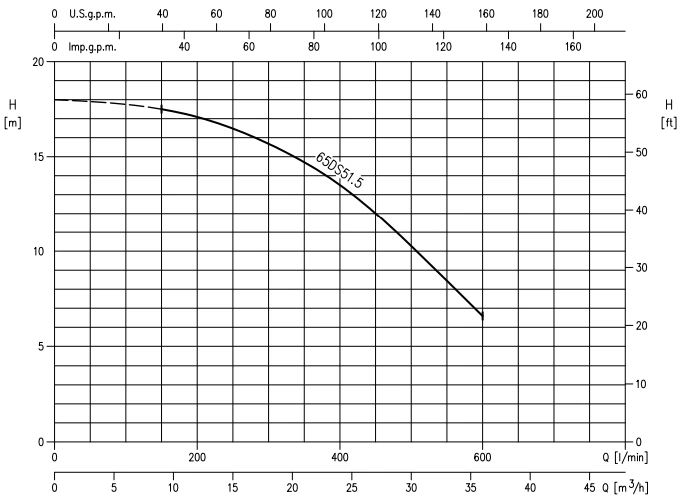

Ebara 2 HP Wastewater Lift Pump 65DS51.5 Performance Curve
Ebara 2 HP Wastewater Lift Pump 65DS51.5 Applications
- Industrial water transfer
- Irrigation systems
- Wastewater management
- Construction site dewatering
Ebara 2 HP Wastewater Lift Pump 65DS51.5 Benefits
- Durable cast iron construction for longevity
- Efficient fluid movement with semi-open impeller
- High protection degree for harsh environments
- Versatile power rating for various applications
Ebara 2 HP Wastewater Lift Pump 65DS51.5 Price List
| No. | Name | Price |
| 1 | Ebara 2 HP Wastewater Lift Pump 65DS51.5 Price | Contact us |
