Ebara 2 HP Wastewater Lift Pump 65DL51.5W/C

1.5 kW (2 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

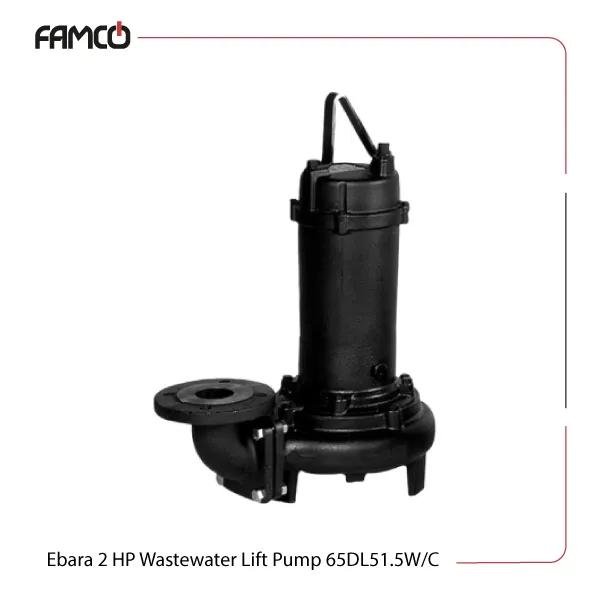

Overview of Ebara 2 HP Wastewater Lift Pump 65DL51.5W/C

This 2 HP Ebara submersible pump can lift water to considerable heights of up to 14.8 meters. The 65DL51.5W/C three-phase pump can operate submerged up to 7 meters deep for various installation sites. Its cast iron body ensures durability, while the mechanical seals prevent leaks. The motor runs at 1450 rpm and is protected against dust and water, thanks to its IP68 rating. It is designed for industrial use, handling 500 l/min high flow rates and lifting water to significant heights. Overall, this pump offers a reliable solution for sewage and wastewater systems, combining power, durability, and efficiency.

Related Products

Ebara 2 HP Wastewater Lift Pump 65DL51.5W/C Specifications

The Ebara pump operates on a frequency of 50 Hz and a voltage range of 380-415V, suitable. This sewage pump operates efficiently at a maximum temperature of 40°C and can be submerged to a depth of up to 7 meters. The pump features a durable cast-iron casing and impeller for demanding environments. It is equipped with mechanical seals made of SiC/SiC/NBR on the impeller side and Carbon/Ceramic/NBR on the motor side, providing reliable sealing and protection against leaks. The motor has 4 poles, running at 1450 rpm, with an insulation class of F for safety and durability. Its protection degree is IP68, making this Ebara submersible pump fully protected against dust and water ingress. This collection of Ebara sewage pumps famously delivers a maximum flow rate of 500 liters per minute and can lift water to 14.8 meters high. With a power output of 1.5 kW (2 HP), this pump combines power efficiency with resilient construction built for harsh environments.

Ebara 2 HP Wastewater Lift Pump 65DL51.5W/C



Specification Value
Type of liquid sewage
Max. temperature (°C) 40
Max. solids size (mm) 70
Max. immersion depth (m) 7
Casing material cast iron
Impeller cast iron
Mechanical seal on impeller side SiC/SiC/NBR
Mechanical seal on motor side Carbon/Ceramic/NBR
Number of poles 4
Rotation speed (rpm) 1450
Insulation class F
Protection degree IP68
Frequency (Hz) 50
Voltage (V) 380-415, 400-415
Power (kW) 1.5
Power (HP) 2
Max. flow rate (l/min) 500
Max. head height (m) 14.8



Ebara 2 HP Wastewater Lift Pump 65DL51.5W/C Performance Data

l/min 0 100 250 300 400 500
m³/h 0 6 15 18 24 30
Head (m) 14.8 13.7 12 11.4 10 8.5

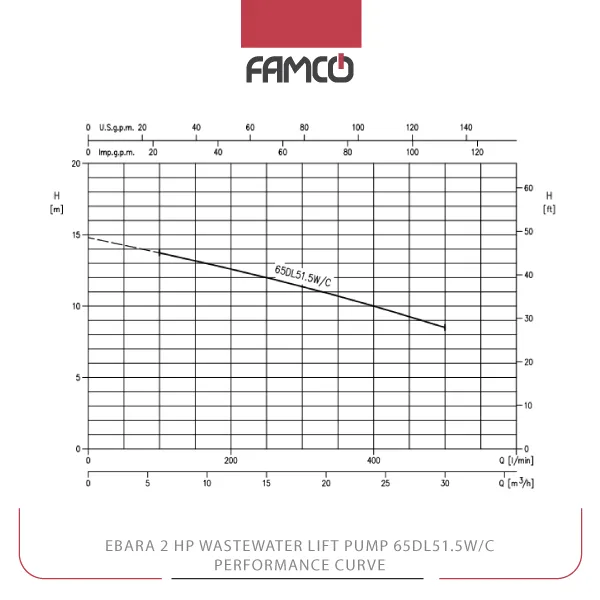

Ebara 2 HP Wastewater Lift Pump 65DL51.5W/C Performance Curve

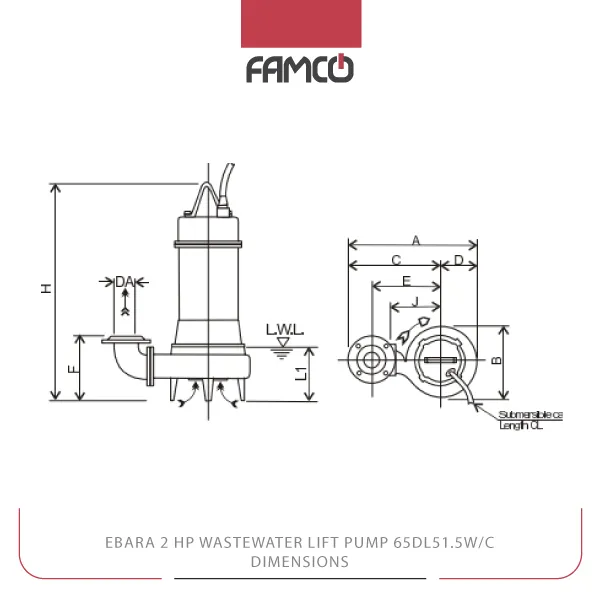

Ebara 2 HP Wastewater Lift Pump 65DL51.5W/C Dimensions

Dimensions (mm) Weight (kg)
A B C D E F H J L1 CL (m) 52
497 291 353 144 265 200 576 200 140 10



Ebara 2 HP Wastewater Lift Pump 65DL51.5W/C Dimensions



Ebara 2 HP Wastewater Lift Pump 65DL51.5W/C Applications

  • Wastewater treatment plants
  • Sewage systems in residential and commercial buildings
  • Industrial effluent pumping
  • Flood control and drainage systems



Ebara 2 HP Wastewater Lift Pump 65DL51.5W/C Benefits

  • Durable cast iron construction for long-lasting use
  • High flow rate and lifting capacity for demanding tasks
  • Reliable mechanical seals prevent leaks
  • Fully protected against dust and water ingress (IP68)



Ebara 2 HP Wastewater Lift Pump 65DL51.5W/C Price List

No. Name Price
1 Ebara 2 HP Wastewater Lift Pump 65DL51.5W/C Price Contact us
Brand

Maximum Liquid Temperature (°C)

Maximum immersion depth (m)

Impeller Material

Number of Poles

Speed (RPM)

Insulation Class

Frequency (Hz)

Power (kW)

Power (HP)

Maximum Flow Rate (L/min)

Maximum Delivery Head (m)
