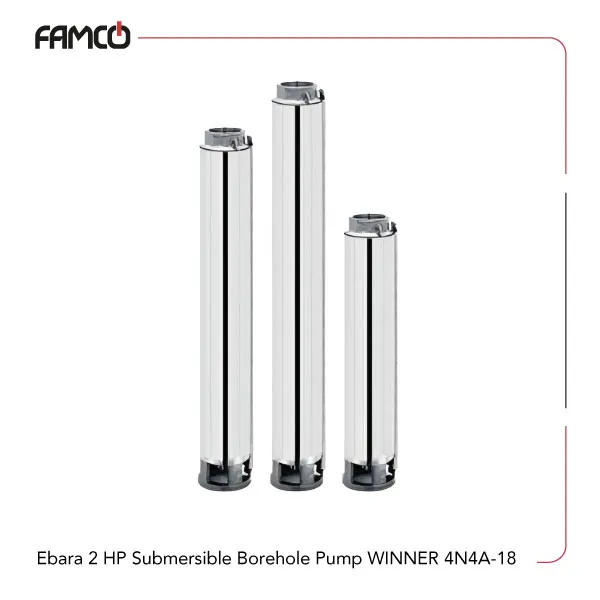

Ebara 2 HP Submersible Borehole Pump WINNER 4N4A-18 Specifications
This pump delivers a power output of 1.5 kW (2 HP), making it suitable for a wide range of demanding applications. It provides a maximum flow rate of 5.7 cubic meters per hour (95 liters per minute), enabling efficient and reliable liquid transfer. This Ebara submersible pump can generate a maximum head of 114 meters, allowing liquids to be lifted over significant vertical distances. Designed for submerged operation, the unit can operate at depths of up to 100 meters and handle liquids with temperatures up to 40°C. It is capable of tolerating sand concentrations of up to 50 ppm, making it suitable for moderately particulate-laden environments. The motor features a two-pole design with class F insulation, providing thermal protection and long-term reliability. An IP58 protection rating ensures strong resistance to dust and water ingress, making the pump well suited for outdoor and harsh operating conditions.
| Specification | Value |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Maximum Flow rate (m3/h) | 5.7 |
| Maximum Flow rate (l/min) | 95 |
| Maximum head (m) | 114 |
| Maximum immersion depth (m) | 100 |
| Maximum liquid temperature (°C) | 40 |
| Maximum sand content (ppm) | 50 |
| Poles | 2 |
| Insulation class | F |
| Protection degree | IP58 |
Ebara 2 HP Submersible Borehole Pump WINNER 4N4A-18 Applications
- Water supply systems
- Irrigation and agricultural use
- Industrial liquid transfer
- Drainage and flood control
Ebara 2 HP Submersible Borehole Pump WINNER 4N4A-18 Benefits
- High efficiency with a powerful 2 HP motor
- Capable of lifting liquids up to 114 meters
- Suitable for deep immersion up to 100 meters
- Resistant to dust and water with IP58 protection
Ebara 2 HP Submersible Borehole Pump WINNER 4N4A-18 Price List
| No. | Name | Price |
| 1 | Ebara 2 HP Submersible Borehole Pump WINNER 4N4A-18 Price | Contact us |
There are no reviews yet.
