Ebara 2.5 HP Wastewater Lift Pump 40DSF51.9M2AG Specifications
This drainage pump is the ultimate efficient water management solution in various settings. Its durable construction and advanced sealing technology have made it suitable for both residential and industrial applications. Its powerful motor and high rotation speed effectively handle water removal tasks. Categorized as a submersible pump, its versatility in voltage and power ratings (1.9 kW or 2.5 HP) allows it to adapt to different load tasks. This drainage pump comes with a sturdy impeller type created to remove water. It has an oil-lubricated shaft seal with a single spring mechanical seal and a lip seal for enhanced durability. Constructed from cast iron GS400 for the impeller and EN-GJL-250 for the casing and motor frame, this sewage pump is built to last. The shaft is made of stainless steel AISI 42B/431 to make it resistant to corrosion. The mechanical seals on both the impeller and motor sides utilize SiC and NBR materials, respectively, to present users with reliable sealing always.
The pump operates with a dry motor and is cooled by surrounding liquid. This powerful pump also offers an insulation class of H and a protection degree of IP68, guaranteeing safe operation even when put in demanding environments.
| Specification | Value | |
| Rotation Speed (rpm) | 2850 | |
| Insulation class | H | |
| Protection degree | IP 68 | |
| Frequency | 50 | |
| Voltage (V) | Single-Phase | 230 |
| Three-Phase | 400-690 | |
| Power (KW) | 1.9 | |
| Power (HP) | 2.5 | |
| Head (m) | 4.2-24.6 | |
Ebara 2.5 HP Wastewater Lift Pump 40DSF51.9M2AG Materials
- Impeller Type: Drainage
- Shaft Seal Type: Oil Lubricated, Single Spring Single Mechanical Seal + Lip Seal
- Impeller: cast iron GS400
- Casing: cast iron EN-GJL-250
- Shaft: Stainless Steel AISI 42B/431
- Motor Frame: cast iron EN-GJL-250
- Mechanical Seal of Impeller Side: SiC
- Mechanical Seal of Motor Side: NBR
- Lubricant: AGIP ITE 360
- O-rings and lip seal: Nitrile
Ebara 2.5 HP Wastewater Lift Pump 40DSF51.9M2AG Technical Data
| Q (m3/h) | 0 | 83 | 100 | 150 | 200 | 250 | 300 | 400 | 433 | 450 | 467 |
| Q (l/min) | 0 | 5 | 6 | 9 | 12 | 15 | 18 | 24 | 26 | 27 | 28 |
| H (m) | 24.6 | 23.1 | 22.7 | 21.2 | 19.4 | 17.3 | 14.8 | 8.9 | 6.6 | 5.4 | 4.2 |

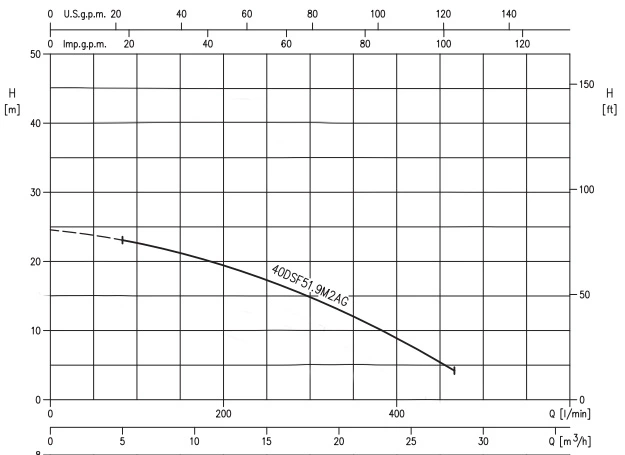

Ebara 2.5 HP Wastewater Lift Pump 40DSF51.9M2AG Performance Curve
Ebara 2.5 HP Wastewater Lift Pump 40DSF51.9M2AG Applications
- Flood water removal from basements and construction sites
- Irrigation systems for agricultural use
- Water transfer in industrial processes
- Drainage in residential and commercial buildings
Ebara 2.5 HP Wastewater Lift Pump 40DSF51.9M2AG Benefits
- Durable construction with cast iron and stainless steel components
- Efficient sealing system for long-lasting performance
- Versatile voltage options for various applications
- High rotation speed for quick water removal
Ebara 2.5 HP Wastewater Lift Pump 40DSF51.9M2AG Price List
| No. | Name | Price |
| 1 | Ebara 2.5 HP Wastewater Lift Pump 40DSF51.9M2AG Price | Contact us |
There are no reviews yet.
