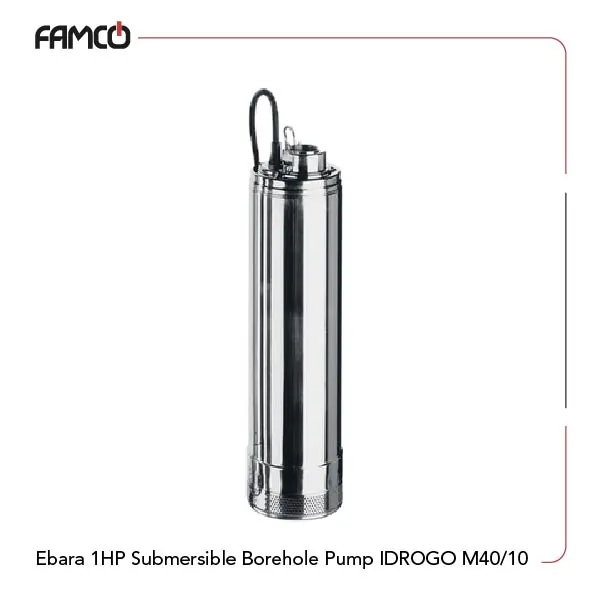

Ebara 1HP Submersible Borehole Pump IDROGO M40/10 Specifications
Ebara 1HP submersible borehole pump IDROGO M40/10 is designed to operate at a maximum temperature of +40°C and can handle solids up to 2.5 mm in size. The casing is made from EN 1.4301 (AISI 304) stainless steel, ensuring durability and resistance to corrosion. The impeller is reinforced with PPE and PS glass fiber, providing strength and reliability. The pump features a dual shaft seal system, with SiC/Carbon/NBR on the pump side and Carbon/Ceramic/NBR on the motor side, ensuring effective sealing and longevity. It uses white mineral oil as a lubricating liquid, specifically Esso Marcol 152, with a capacity of 90 cc. The motor operates at a speed of approximately 2800 rpm and has an insulation class of F. This product has a protection degree of IP 68, which has made this Ebara submersible pump well-suited for demanding environments. It operates on a frequency of 50 Hz and is available in both single-phase (230V) and three-phase (230-400V) configurations. The optional float switch adds versatility, while the motor frame is also made from AISI 304.
| Specification | Value | |
| Maximum liquid temperature | +40 | |
| Max solids size (mm) | 2.5 | |
| No. of Poles | 2 | |
| Rotation speed (rpm) | ≈2800 | |
| Insulation Class | Class F | |
| Protection degree | IP 68 | |
| Frequency (Hz) | 50 | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Float Switch | Optional | |
| Power (kW) | 1 | |
| Power (HP) | 0.75 | |
| Head (m) | 16.8-60 | |
| Height (mm) | 539 | |
Ebara 1HP Submersible Borehole Pump IDROGO M40/10 Materials
- Casing: EN 1.4301 (AISI 304)
- Impeller: PPE+PS glass fiber reinforced
- Shaft seal Pump side: SiC/ Carbon /NBR
- Shaft seal Motor side: Carbon/Ceramic/NBR
- Lubricating liquid: White mineral oil, Esso Marcol 152 (90 cc)
- Motor frame: AISI 304
Ebara 1HP Submersible Borehole Pump IDROGO M40/10 Technical Data
| l/min | 0 | 20 | 30 | 40 | 60 | 80 |
| m3 /h | 0 | 1.2 | 1.8 | 2.4 | 3.6 | 4.8 |
| H (m) | 60 | 50.2 | 50.2 | 45.4 | 32.6 | 16.8 |

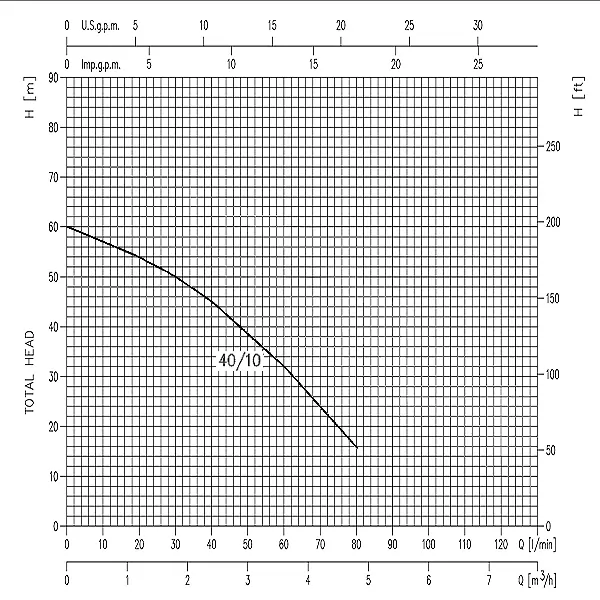

Ebara 1HP Submersible Borehole Pump IDROGO M40/10 Performance Curve
Ebara 1HP Submersible Borehole Pump IDROGO M40/10 Applications
- Industrial water transfer
- Agricultural irrigation systems
- Wastewater management
- Cooling systems in machinery
Ebara 1HP Submersible Borehole Pump IDROGO M40/10 Benefits
- Durable stainless steel construction
- High efficiency with low maintenance
- Versatile voltage options for various setups
- Effective sealing for long-lasting performance
Ebara 1HP Submersible Borehole Pump IDROGO M40/10 Price List
| No. | Name | Price |
| 1 | Ebara 1HP Submersible Borehole Pump IDROGO M40/10 Price | Contact us |
