Ebara 15 HP Wastewater Lift Pump 300DL511

11 kW (15 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Ebara 15 HP Wastewater Lift Pump 300DL511

This three-phase 15 HP Ebara pump is from the DL series and perfect for sewage or wastewater management. It is built with cast iron components, making this Ebara pump as durable as ever for demanding environments. The pump is suitable for handling sewage with temperatures up to 40°C and can operate at depths of up to 7 meters. Its high flow capacity and head height make it perfect for municipal, industrial, and commercial applications where large volumes of wastewater need to be moved efficiently.

Related Products

Ebara 15 HP Wastewater Lift Pump 300DL511 Specifications

This sewage pump is designed for handling wastewater with a maximum temperature of 40°C. Engineers at Ebara have carefully chosen a durable cast-iron casing and impeller to help this Ebara submersible pump resist corrosion. The pump is equipped with a SiC/SiC/NBR mechanical seal on the impeller side and a Carbon/Ceramic/NBR seal on the motor side, providing reliable sealing under tough conditions. Its four-pole motor is running at 1450 rpm, helping offer a high power output of 11 kW (15 HP). The provided Ebara sewage pump here can be submerged up to 7 meters deep and is rated with an IP68 protection degree, making it suitable for continuous operation in wet environments. It supports a frequency of 50 Hz and voltage options between 380-415V, ensuring compatibility with standard power supplies. With a maximum flow rate of 9000 liters per minute and a head height of 9.2 meters, this pump is ideal for moving large volumes of sewage efficiently and reliably in various industrial and municipal applications.

Ebara 15 HP Wastewater Lift Pump 300DL511



Specification Value
Type of liquid sewage
Max. temperature (°C) 40
Max. immersion depth (m) 7
Casing material cast iron
Impeller cast iron
Mechanical seal on impeller side SiC/SiC/NBR
Mechanical seal on motor side Carbon/Ceramic/NBR
Number of poles 4
Rotation speed (rpm) 1450
Insulation class F
Protection degree IP68
Frequency (Hz) 50
Voltage (V) [‘380-415’, ‘400-415’]
Power (kW) 11
Power (HP) 15
Max. flow rate (l/min) 9000
Max. head height (m) 9.2



Ebara 15 HP Wastewater Lift Pump 300DL511 Performance Data

l/min 0 3000 4000 5000 6000 7000 8000 9000
m³/h 0 180 240 300 360 420 480 540
Head (m) 9.2 7.0 6.4 5.9 5.5 4.9 4.2 3.3

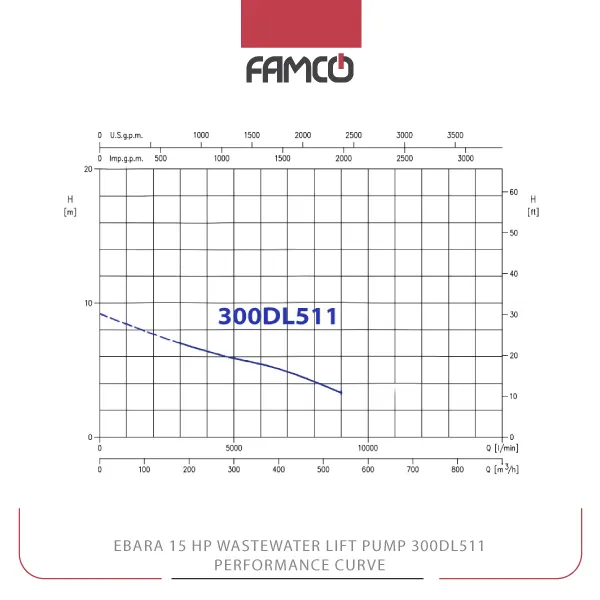

Ebara 15 HP Wastewater Lift Pump 300DL511 Performance Curve



Ebara 15 HP Wastewater Lift Pump 300DL511 Dimensions

Dimensions (mm) Weight (kg)
A B C D E F H J L1 CL (m) 365
1100 588 798 302 575 671 1050 420 450 10



Ebara 15 HP Wastewater Lift Pump 300DL511 Dimensions



Ebara 15 HP Wastewater Lift Pump 300DL511 Applications

  • Municipal sewage treatment plants
  • Industrial wastewater management
  • Commercial building drainage systems
  • Flood control and drainage projects



Ebara 15 HP Wastewater Lift Pump 300DL511 Benefits

  • High flow rate for efficient wastewater transfer
  • Durable cast iron construction for longevity
  • Reliable sealing system prevents leaks
  • Suitable for continuous operation in wet environments



Ebara 15 HP Wastewater Lift Pump 300DL511 Price List

No. Name Price
1 Ebara 15 HP Wastewater Lift Pump 300DL511 Price Contact us
Brand

Maximum Liquid Temperature (°C)

Maximum immersion depth (m)

Impeller Material

Number of Poles

Speed (RPM)

Insulation Class

Degree of Protection

Frequency (Hz)

Voltage (V)

Power (kW)

Power (HP)

Maximum Flow Rate (L/min)

Maximum Delivery Head (m)
