Ebara 15 HP Wastewater Lift Pump 250DL511

45 kW (15 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Ebara 15 HP Wastewater Lift Pump 250DL511

The presented 250DL511 15 HP Ebara sewage pump is built for tough environments. This one has the advantage of being built for operating at 1450 rpm and has a high flow capacity of 7000 liters per minute. With a maximum head height of 20.2 meters, it can efficiently move large volumes of wastewater. Its IP68 protection ensures it can stay submerged without damage, making it reliable for continuous use. The pump’s design emphasizes durability, safety, and high performance, making it a good choice for demanding sewage systems and wastewater treatment plants.

Related Products

Ebara 15 HP Wastewater Lift Pump 250DL511 Specifications

This sewage pump is designed for handling wastewater with solids up to 70mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller, ensuring longevity and resistance to corrosion. Well-equipped with high-quality mechanical seals on both the impeller and motor sides, this Ebara sewage pump uses SiC/SiC/NBR and Carbon/Ceramic/NBR materials, respectively. The motor has four poles, running at 1450 rpm, and is rated with an insulation class F for safety and durability. Like most Ebara submersible pumps, this one also has an IP68 protection degree that increases its tolerance for continuous submersion in harsh environments. The pump operates at a 50Hz frequency with a voltage range of 380-415V and delivers a maximum flow rate of 7,000 liters per minute, with a maximum head height of 20.2 meters. Power consumption is 11 kW or 15 HP, making it a powerful choice for demanding sewage applications. Overall, this pump is an all-in-one solution to manage industrial-grade sewage treatment.

Ebara 15 HP Wastewater Lift Pump 250DL511



Specification Value
Type of liquid sewage
Max. temperature (° C) 40
Max. solids size (mm) 70
Max. immersion depth (m) 7
Casing material cast iron
Impeller cast iron
Mechanical seal on impeller side SiC/SiC/NBR
Mechanical seal on motor side Carbon/Ceramic/NBR
Number of poles 4
Rotation speed (rpm) 1450
Insulation class F
Protection degree IP68
Frequency (Hz) 50
Voltage (V) 380-415, 400-415
Power (kW) 11
Power (HP) 15
Max. flow rate (l/min) 7000
Max. head height (m) 20.2



Ebara 15 HP Wastewater Lift Pump 250DL511 Performance Data

l/min 0 2000 3000 4000 5000 6000 6500 7000
m³/h 0 120 180 240 300 360 390 420
Head (m) 20.2 15.5 13.2 11.1 9.0 7.0 6.0 5.0

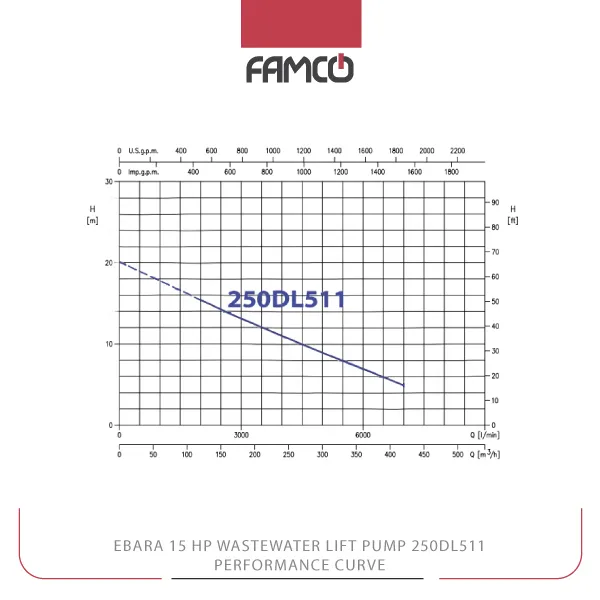

Ebara 15 HP Wastewater Lift Pump 250DL511 Performance Curve



Ebara 15 HP Wastewater Lift Pump 250DL511 Dimensions

Dimensions (mm) Weight (kg)
A B C D E F H J L1 CL (m) 320
993 541 720 273 520 634 1000 390 400 10



Ebara 15 HP Wastewater Lift Pump 250DL511 Dimensions



Ebara 15 HP Wastewater Lift Pump 250DL511 Applications

  • Wastewater and sewage management
  • Industrial drainage systems
  • Flood control and water removal
  • Wastewater treatment plants



Ebara 15 HP Wastewater Lift Pump 250DL511 Benefits

  • High flow capacity for large volume handling
  • Durable cast iron construction for longevity
  • Reliable mechanical seals for reduced maintenance
  • Suitable for deep submersion with IP68 protection



Ebara 15 HP Wastewater Lift Pump 250DL511 Price List

No. Name Price
1 Ebara 15 HP Wastewater Lift Pump 250DL511 Price Contact us
Brand

Maximum Liquid Temperature (°C)

Maximum immersion depth (m)

Impeller Material

Number of Poles

Speed (RPM)

Insulation Class

Degree of Protection

Frequency (Hz)

Voltage (V)

Power (kW)

Power (HP)

Maximum Flow Rate (L/min)

Maximum Delivery Head (m)
