Ebara 15 HP Wastewater Lift Pump 200DL511 Specifications
This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller, ensuring long-lasting performance in tough environments. It is equipped with high-quality mechanical seals on both the impeller and motor sides, using SiC/SiC/NBR and Carbon/Ceramic/NBR materials, respectively, to prevent leaks and withstand harsh conditions. The motor has four poles, running at 1450 rpm, with an insulation class of F for safety and durability. Equipped with a protection degree og IP68, the Ebara submersible pumps are fully protected against dust and water ingress. The pump operates on a 50 Hz frequency and a voltage range of 380-415V or 400-415V, providing a reliable power supply. With a power output of 11 kW (15 HP), it can achieve a maximum flow rate of 5000 liters per minute and lift water to 19.7 meters high, making the presented Ebara sewage pump suitable for various sewage and wastewater applications. The construction and high performance make this pump ideal for industrial, municipal, and commercial use, especially where handling solids and durability are critical.
| Specification | Value |
| Type of liquid | sewage |
| Max. temperature (°C) | 40 |
| Max. solids size (mm) | 70 |
| Max. immersion depth (m) | 7 |
| Casing material | cast iron |
| Impeller | cast iron |
| Mechanical seal on impeller side | SiC/SiC/NBR |
| Mechanical seal on motor side | Carbon/Ceramic/NBR |
| Number of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Voltage (V) | 380-415, 400-415 |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Max. flow rate (l/min) | 5000 |
| Max. head height (m) | 19.7 |

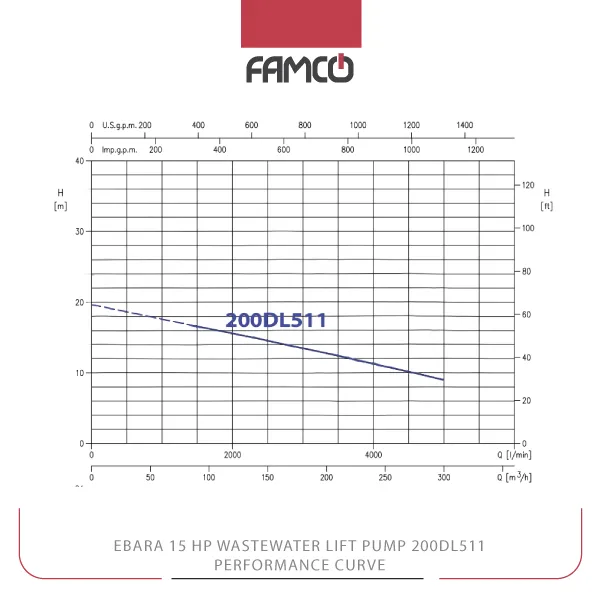

Ebara 15 HP Wastewater Lift Pump 200DL511 Performance Data
| l/min | 0 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 | 5000 |
| m³/h | 0 | 60 | 90 | 120 | 150 | 180 | 240 | 270 | 300 |
| Head (m) | 19.7 | – | 16.5 | 15.6 | 14.6 | 13.5 | 11.3 | 10.2 | 9.0 |
Ebara 15 HP Wastewater Lift Pump 200DL511 Dimensions
| Dimensions (mm) | Weight (kg) | |||||||||
| A | B | C | D | E | F | H | J | L1 | CL (m) | 212 |
| 863 | 453 | 635 | 228 | 470 | 410 | 908 | 320 | 285 | 10 | |
Ebara 15 HP Wastewater Lift Pump 200DL511 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Commercial building drainage systems
- Flood control and drainage projects
Ebara 15 HP Wastewater Lift Pump 200DL511 Benefits
- High durability with cast iron construction
- Efficient handling of solids up to 70 mm
- Reliable operation with IP68 protection
- Powerful performance with 11 kW motor
Ebara 15 HP Wastewater Lift Pump 200DL511 Price List
| No. | Name | Price |
| 1 | Ebara 15 HP Wastewater Lift Pump 200DL511 Price | Contact us |
There are no reviews yet.
