Ebara 15HP Wastewater Lift Pump 100DML511 Specifications
Ebara 15HP wastewater lift pump 100DML511 is designed to handle dirty liquids with solids up to 76 mm in size. These Ebara pumps operate efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump runs on a three-phase power supply of 380-415V and features a 4-pole motor rotating at approximately 1450 rpm. It has an insulation class F and a IP68 protection rating with safer operations even in harsh environments. The pump delivers a maximum flow rate of 150 cubic meters per hour and can generate a head between 17.5 and 30.3 meters. Its impellers are made of cast iron, ensuring durability, and it uses high-quality mechanical seals with SiC/SiC/NBR on the impeller side and carbon/ceramic/NBR on the motor side.
| Specification | Value |
| Type of liquid | sewage |
| Max. liquid temperature (°C) | 40 |
| Max. solids size (mm) | 76 |
| Max. immersion depth (m) | 7 |
| Three-phase voltage (V) | 380-415 |
| No. of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Max. flow rate (m3/h) | 150 |
| Max. head (m) | 17.5-30.3 |
Ebara 15HP Wastewater Lift Pump 100DML511 Materials
- Impellers: cast iron
- Mechanical seal on impeller side: SiC/SiC/NBR
- Mechanical seal on motor side: carbon/ceramic/NBR
Ebara 15HP Wastewater Lift Pump 100DML511 Technical Data
| l/min | 0 | 500 | 1000 | 1300 | 1600 | 1900 | 2200 | 2400 | 2500 |
| M3/h | 0 | 30 | 60 | 78 | 96 | 114 | 132 | 144 | 150 |
| Head (m) | 30.3 | 27.5 | 25.2 | 23.7 | 22.2 | 20.7 | 19.1 | 18.0 | 17.5 |

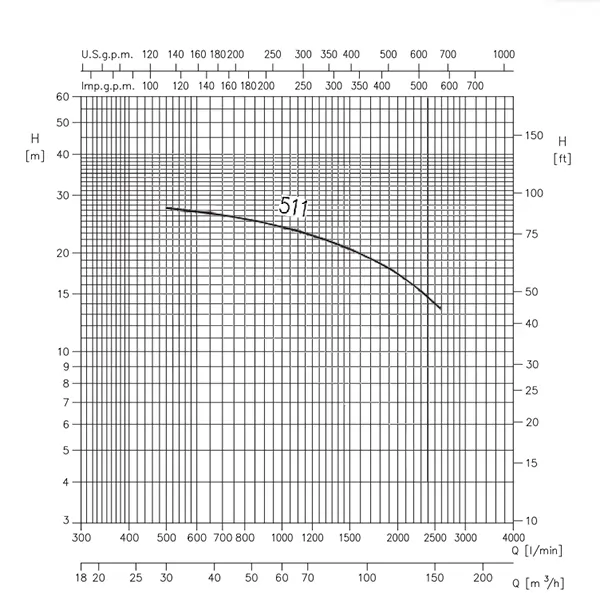

Ebara 15HP Wastewater Lift Pump 100DML511 Performance Curve
Ebara 15HP Wastewater Lift Pump 100DML511 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Drainage systems in construction sites
- Flood control and water transfer
Ebara 15HP Wastewater Lift Pump 100DML511 Benefits
- Handles solids up to 76 mm for versatile use
- Durable cast iron impellers withstand harsh conditions
- High protection rating IP68 for reliable operation
- Efficient flow rate of 150 m3/h for large-scale applications
Ebara 15HP Wastewater Lift Pump 100DML511 Price List
| No. | Name | Price |
| 1 | Ebara 15HP Wastewater Lift Pump 100DML511 Price | Contact us |
