Ebara 10 HP Wastewater Lift Pump 250DL57.5

7.5 kW (10 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Ebara 10 HP Wastewater Lift Pump 250DL57.5

This Ebara sewage pump is the one reliable solution for wastewater management with a 10 HP operating force. It is designed to handle sewage with solids up to 70 mm and can operate submerged up to 7 meters. Its cast iron construction ensures durability in tough environments. The pump is suitable for various applications like sewage transfer, wastewater treatment, and drainage systems. With a powerful 7.5 kW motor, it provides high flow rates up to 6500 liters per minute and a maximum head height of 13.6 meters. Its IP68 protection rating makes it perfect for continuous submersion, and the high-quality seals prevent leaks. Overall, this pump combines strength, efficiency, and durability for demanding sewage handling tasks.

Related Products

Ebara 10 HP Wastewater Lift Pump 250DL57.5 Specifications

This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller, ensuring longevity and resistance to corrosion. This Ebara sewage pump is not only equipped with high-quality mechanical seals on both the impeller and motor sides, but they’re also built from SiC/SiC/NBR and Carbon/Ceramic/NBR, respectively, providing reliable sealing and preventing leaks. The motor at the heart of this pumping solution has four poles, rotating at 1450 rpm, and is rated with an insulation class F for safety and durability. Its protection degree is IP68, making this Ebara-produced pump suitable for continuous submersion in harsh environments. The pump operates on a 50 Hz frequency with a voltage range of 380-415V or 400-415V, delivering a power output of 7.5 kW (10 HP). It can move up to 6500 liters of fluid per minute, with a maximum head height of 13.6 meters, making this Ebara submersible pump ideal for various sewage and wastewater applications where high flow and reliable performance are required.

Ebara 10 HP Wastewater Lift Pump 250DL57.5



Specification Value
Type of liquid sewage
Max. temperature (°C) 40
Max. solids size (mm) 70
Max. immersion depth (m) 7
Casing material cast iron
Impeller cast iron
Mechanical seal on impeller side SiC/SiC/NBR
Mechanical seal on motor side Carbon/Ceramic/NBR
Number of poles 4
Rotation speed (rpm) 1450
Insulation class F
Protection degree IP68
Frequency (Hz) 50
Voltage (V) 380-415, 400-415
Power (kW) 7.5
Power (HP) 10
Max. flow rate (l/min) 6500
Max. head height (m) 13.6



Ebara 10 HP Wastewater Lift Pump 250DL57.5 Performance Data

l/min 0 2000 3000 4000 5000 6000 6500
m³/h 0 120 180 240 300 360 390
Head (m) 13.6 10.1 8.5 6.9 5.3 3.8 3.0

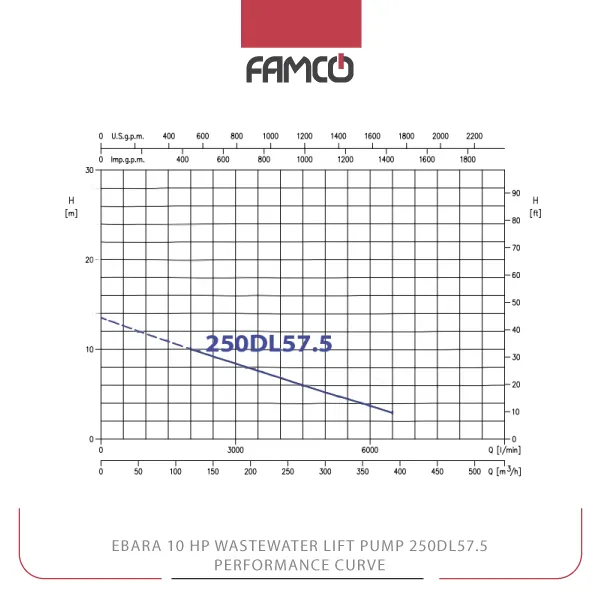

Ebara 10 HP Wastewater Lift Pump 250DL57.5 Performance Curve



Ebara 10 HP Wastewater Lift Pump 250DL57.5 Dimensions

Dimensions (mm) Weight (kg)
A B C D E F H J L1 CL (m) 260
969 525 700 269 500 622 904 370 400 10



Ebara 10 HP Wastewater Lift Pump 250DL57.5 Dimensions



Ebara 10 HP Wastewater Lift Pump 250DL57.5 Applications

  • Sewage transfer in residential and commercial buildings
  • Wastewater treatment plants
  • Drainage systems for industrial sites
  • Flood control and drainage projects



Ebara 10 HP Wastewater Lift Pump 250DL57.5 Benefits

  • Durable cast iron construction for long-lasting use
  • High flow capacity for efficient sewage handling
  • Reliable mechanical seals prevent leaks
  • Suitable for continuous submersion in harsh environments
