Ebara 10 HP Wastewater Lift Pump 200DL57.5 Specifications
This sewage pump is designed to handle dirty liquids with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast-iron casing and impeller, ensuring long-lasting performance in tough environments. The Ebara submersible pump uses high-quality mechanical seals, with SiC/SiC/NBR on the impeller side and Carbon/Ceramic/NBR on the motor side, to prevent leaks and maintain reliability. The motor has 4 poles, running at 1450 rpm, with an insulation class of F for safety and durability. It is protected by an IP68 rating, making this Ebara sewage pump as resistant as possible and needed to dust and water ingress. The pump operates on a 50 Hz frequency and supports voltages between 380-415V and 400-415V. It delivers a maximum flow rate of 4500 liters per minute and can generate a head height of up to 15.5 meters, making it suitable for various sewage and wastewater applications. With a power output of 7.5 kW (10 HP), this Ebara pump provides a combination of performance for demanding tasks in industrial and municipal settings.
| Specification | Value |
| Type of liquid | sewage |
| Max. temperature (°C) | 40 |
| Max. solids size (mm) | 70 |
| Max. immersion depth (m) | 7 |
| Casing material | cast iron |
| Impeller | cast iron |
| Mechanical seal on impeller side | SiC/SiC/NBR |
| Mechanical seal on motor side | Carbon/Ceramic/NBR |
| Number of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Voltage (V) | 380-415, 400-415 |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Max. flow rate (l/min) | 4500 |
| Max. head height (m) | 15.5 |

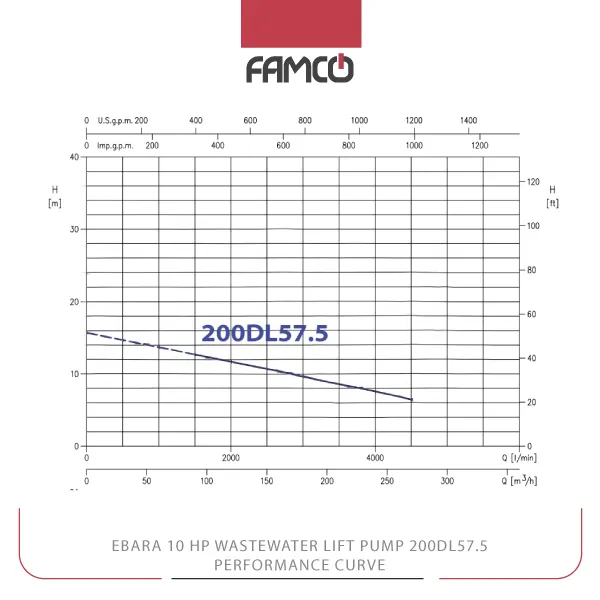

Ebara 10 HP Wastewater Lift Pump 200DL57.5 Performance Data
| l/min | 0 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| m³/h | 0 | 60 | 90 | 120 | 150 | 180 | 240 | 270 |
| Head (m) | 15.5 | – | 12.5 | 11.5 | 10.5 | 9.4 | 7.4 | 6.5 |
Ebara 10 HP Wastewater Lift Pump 200DL57.5 Dimensions
| Dimensions (mm) | Weight (kg) | |||||||||
| A | B | C | D | E | F | H | J | L1 | CL (m) | 176 |
| 863 | 453 | 635 | 228 | 470 | 410 | 809 | 320 | 285 | 10 | |
Ebara 10 HP Wastewater Lift Pump 200DL57.5 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Building drainage systems
- Flood control and drainage projects
Ebara 10 HP Wastewater Lift Pump 200DL57.5 Benefits
- Durable cast iron construction for long-lasting use
- High flow capacity for efficient sewage removal
- Reliable mechanical seals prevent leaks
- Waterproof and dustproof IP68 protection rating
Ebara 10 HP Wastewater Lift Pump 200DL57.5 Price List
| No. | Name | Price |
| 1 | Ebara 10 HP Wastewater Lift Pump 200DL57.5 Price | Contact us |
