Ebara 10 HP Wastewater Lift Pump 100DLB57.5W/C Specifications
This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast-iron casing and impeller, ensuring longevity and resistance to harsh environments. High-quality materials have made this Ebara sewage pump as resistant as possible (exact materials are provided in the table below). This Ebara submersible pump has a motor with 4 poles, running at 1450 rpm, with an insulation class of F for safety and durability. Its protection degree is IP68, equipping this Ebara sewage pump with all the protection it needs against dust and water ingress. The pump operates on a 50 Hz frequency with a voltage range of 380-415V or 400-415V, suitable for industrial settings. It delivers a maximum flow rate of 2400 liters per minute and can lift water to 22.5 meters high, making this product ideal for various sewage and wastewater applications.
| Specification | Value |
| Type of liquid | sewage |
| Max. temperature (° C) | 40 |
| Max. solids size (mm) | 70 |
| Max. immersion depth (m) | 7 |
| Casing material | cast iron |
| Impeller | cast iron |
| Mechanical seal on impeller side | SiC/SiC/NBR |
| Mechanical seal on motor side | Carbon/Ceramic/NBR |
| Number of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Voltage (V) | 380-415, 400-415 |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Max. flow rate (l/min) | 2400 |
| Max. head height (m) | 22.5 |
Ebara 10 HP Wastewater Lift Pump 100DLB57.5W/C Performance Data
| l/min | 0 | 100 | 250 | 300 | 400 | 500 | 700 | 900 | 1000 | 1100 | 1200 | 1400 | 1600 | 2000 | 2400 |
| M3/h | 0 | 6 | 15 | 18 | 24 | 30 | 42 | 54 | 60 | 66 | 72 | 84 | 96 | 120 | 144 |
| Head (m) | 22.5 | – | – | – | – | – | 20.2 | 19.4 | 19 | 18.6 | 18.1 | 17.2 | 16.1 | 13.7 | 10.7 |

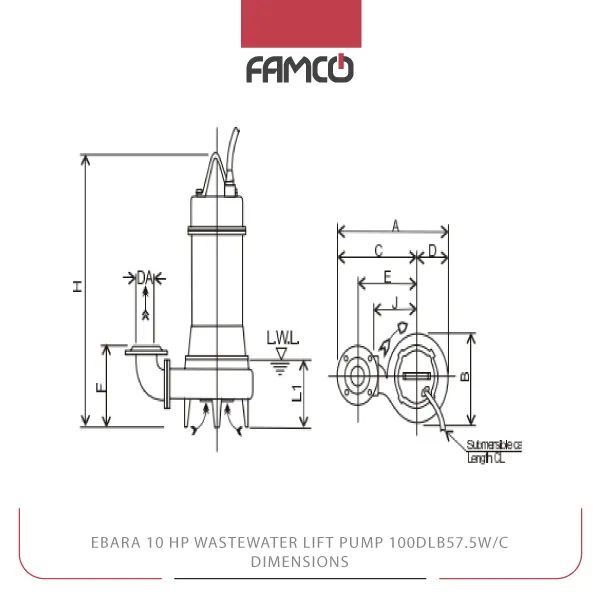

Ebara 10 HP Wastewater Lift Pump 100DLB57.5W/C Dimensions
| Dimensions (mm) | Weight (kg) | |||||||||
| A | B | C | D | E | F | H | J | L1 | CL (m) | 141 |
| 673 | 385 | 480 | 193 | 375 | 323 | 760 | 270 | 205 | 10 | |
Ebara 10 HP Wastewater Lift Pump 100DLB57.5W/C Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Drainage systems for large facilities
- Flood control and water removal
Ebara 10 HP Wastewater Lift Pump 100DLB57.5W/C Benefits
- High durability with cast iron construction
- Efficient handling of solids up to 70 mm
- Reliable operation with high-quality seals
- Suitable for harsh environments with IP68 protection
Ebara 10 HP Wastewater Lift Pump 100DLB57.5W/C Price List
| No. | Name | Price |
| 1 | Ebara 10 HP Wastewater Lift Pump 100DLB57.5W/C Price | Contact us |
