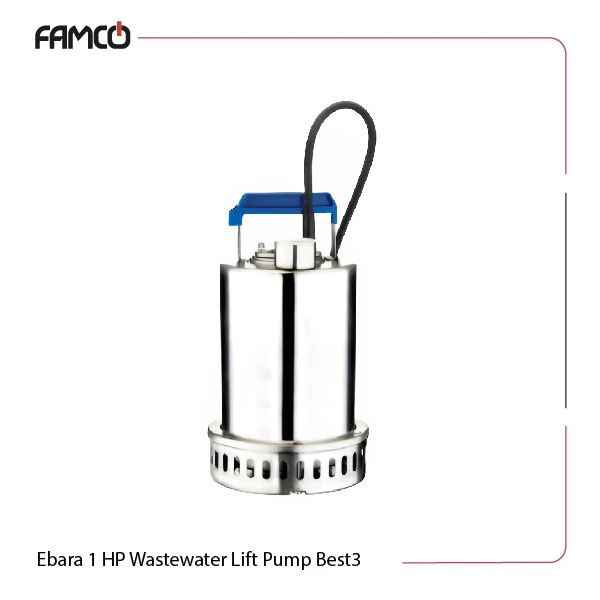

Ebara 1 HP Wastewater Lift Pump Best3 Specifications
This versatile pump is the final solution for both clean and dirty water applications. This Ebara sewage pump shaft seal features a combination of SiC and NBR on the pump side, while the motor side uses Carbon and Ceramic materials for enhanced durability. Running on a 0.75 kW pumping power, it delivers head heights of up to 14.6 meters. It has a rated insulation class of F and a set protection degree of IP68 for safe use in wet environments. The AISI 304 stainless steel construction provides excellent resistance to corrosion in long-term use. It is imperative for submersible pumps to handle suspended particles and this one passes solids up to 10mm and operates at depths of up to 7 meters. The dimensions of this pump are 352 mm in height and 315 mm in width, creating a compact yet powerful solution all in one pump.
| Specification | Value | |
| Type of liquid | clean/dirty water | |
| Max. Temperature (℃) | 35 | |
| Max. Solids size (mm) | 10 (suspended particles) | |
| Max immersion (m) | 7 | |
| No. of poles | 2 | |
| Insulation class | F | |
| Protection degree | IP68 | |
| Head (m) | 32-14.6 | |
| Power rating (kW) | 0.75 | |
| Power rating (HP) | 1 | |
| Frequency (Hz) | 50 | |
| Voltage (V) | single phase | 230 |
| three-phase | 400 | |
Ebara 1 HP Wastewater Lift Pump Best3 Materials
- Casing: AISI 304
- Impeller: AISI 304
- Casing cover: AISI 304
- Shaft seal on pump side: SiC/ SiC/NBR
- Shaft seal on motor side: Carbon/Ceramic/NBR
- Shaft: AISI 303 (wet extension)
- Mechanical seal: NBR
Ebara 1 HP Wastewater Lift Pump Best3 Weight and Dimensions
| Dimensions (mm) | H | 352 |
| H1 | 315 | |
| Weight (kg) | 12.7 | |
Ebara 1 HP Wastewater Lift Pump Best3 Technical Data
| l/min | 0 | 20 | 40 | 80 | 120 | 160 | 170 | 200 | 260 | 280 |
| m3 /h | 0 | 1.2 | 2.4 | 4.8 | 7.2 | 9.6 | 10.2 | 12 | 15.6 | 16.8 |
| H (m) | 14.6 | 13.6 | 12.7 | 11.1 | 9.5 | 7.9 | 7.6 | 6.4 | 4 | 3.2 |

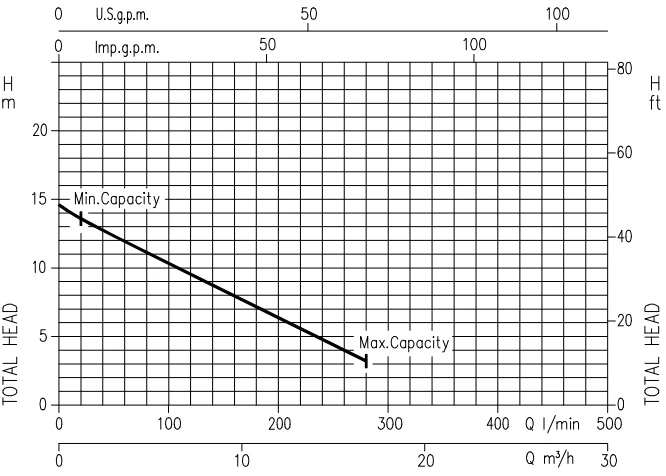

Ebara 1 HP Wastewater Lift Pump Best3 Performance Curve
Ebara 1 HP Wastewater Lift Pump Best3 Applications
- Residential drainage systems
- Construction site dewatering
- Agricultural irrigation
- Industrial wastewater management
Ebara 1 HP Wastewater Lift Pump Best3 Benefits
- Durable AISI 304 stainless steel construction
- Handles both clean and dirty water efficiently
- Compact design for easy installation
- High protection degree (IP68) for wet environments
Ebara 1 HP Wastewater Lift Pump Best3 Price List
| No. | Name | Price |
| 1 | Ebara 1 HP Wastewater Lift Pump Best3 Price | Contact us |
