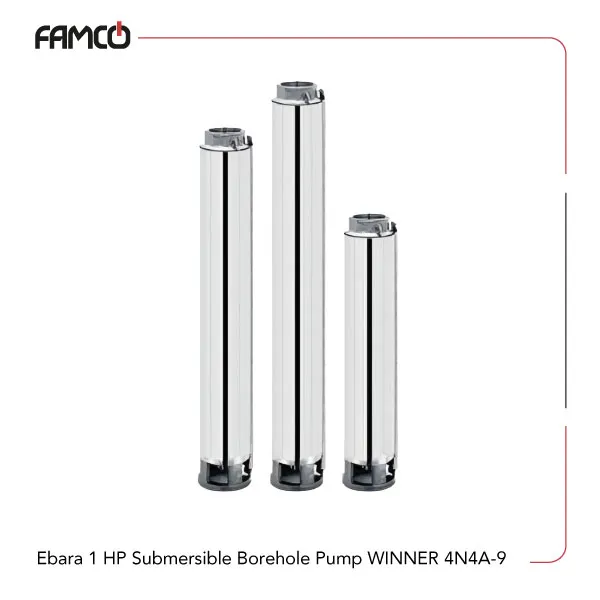

Ebara 1 HP Submersible Borehole Pump WINNER 4N4A-9 Specifications
This pump is powered by a 0.75 kW (1 HP) motor, making it well suited for a wide range of water transfer applications. It delivers a maximum flow rate of 5.7 cubic meters per hour (95 liters per minute), providing efficient and reliable hydraulic performance. This Ebara submersible pump is capable of generating a maximum head of 57 meters, enabling effective water lifting over considerable vertical distances. Designed for submerged operation, the pump supports an immersion depth of up to 100 meters and can handle liquid temperatures of up to 40°C. It is suitable for use in environments containing sand concentrations of up to 50 ppm, ensuring durability and consistent operation under moderately abrasive conditions. The motor features a two-pole design with insulation class F, offering dependable thermal resistance and long service life. An IP58 protection rating provides strong resistance to dust and water ingress, making the pump suitable for outdoor and harsh operating environments.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Maximum Flow rate (m3/h) | 5.7 |
| Maximum Flow rate (l/min) | 95 |
| Maximum head (m) | 57 |
| Maximum immersion depth (m) | 100 |
| Maximum liquid temperature (°C) | 40 |
| Maximum sand content (ppm) | 50 |
| Poles | 2 |
| Insulation class | F |
| Protection degree | IP58 |
Ebara 1 HP Submersible Borehole Pump WINNER 4N4A-9 Applications
- Well water extraction
- Irrigation systems
- Drainage and flood control
- Industrial water transfer
Ebara 1 HP Submersible Borehole Pump WINNER 4N4A-9 Benefits
- High flow capacity for efficient water transfer
- Deep immersion capability up to 100 meters
- Durable construction suitable for sandy environments
- Protected against dust and water jets for outdoor use
Ebara 1 HP Submersible Borehole Pump WINNER 4N4A-9 Price List
| No. | Name | Price |
| 1 | Ebara 1 HP Submersible Borehole Pump WINNER 4N4A-9 Price | Contact us |
