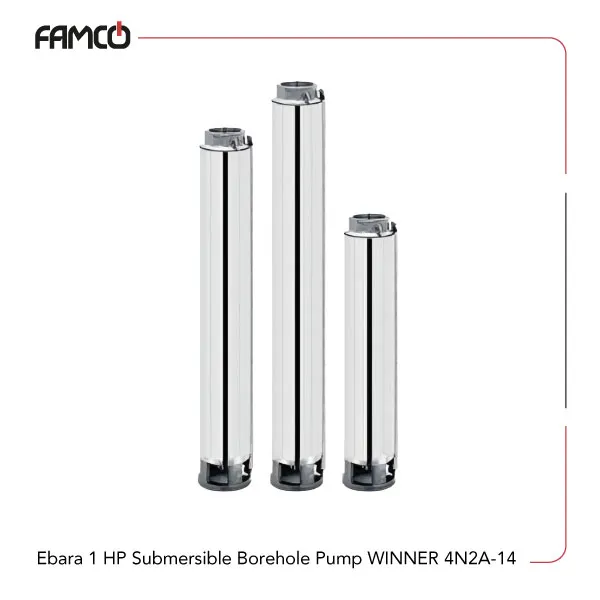

Ebara 1 HP Submersible Borehole Pump WINNER 4N2A-14

Ebara 1 HP Submersible Borehole Pump WINNER 4N2A-14 Specifications

Ebara submersible borehole pump WINNER 4N2A-14 is equipped with a 0.75 kW (1 HP) motor, making it suitable for a wide range of pumping applications. It delivers a maximum flow rate of 3.3 cubic meters per hour (55 liters per minute), ensuring efficient and consistent liquid transfer. With a maximum head of 91.5 meters, the unit provides reliable performance for applications requiring significant vertical lift. This Ebara submersible pump is designed for submerged operation at depths of up to 100 meters and is capable of handling liquids with temperatures up to 40°C. It supports sand content of up to 50 ppm, allowing dependable operation in environments with moderate particulate presence. The motor features a two-pole configuration with insulation class F, ensuring effective thermal protection and long operational life. An IP58 protection rating provides strong resistance to dust and water ingress, making the pump suitable for outdoor and harsh operating conditions.

Specification	Value
Power (kW)	0.75
Power (HP)	1
Maximum Flow rate (m3/h)	3.3
Maximum Flow rate (l/min)	55
Maximum head (m)	91.5
Maximum immersion depth (m)	100
Maximum liquid temperature (°C)	40
Maximum sand content (ppm)	50
Poles	2
Insulation class	F
Protection degree	IP58

Ebara 1 HP Submersible Borehole Pump WINNER 4N2A-14 Applications

• Water transfer in agricultural irrigation systems
• Industrial liquid pumping tasks
• Deep well water extraction
• Drainage and flood control systems



Ebara 1 HP Submersible Borehole Pump WINNER 4N2A-14 Benefits

• High efficiency with a maximum head of 91.5 meters
• Durable protection against dust and water (IP58)
• Suitable for deep immersion up to 100 meters
• Handles liquids with slight contamination (up to 50 ppm sand)



Ebara 1 HP Submersible Borehole Pump WINNER 4N2A-14 Price List

No.	Name	Price
1	Ebara 1 HP Submersible Borehole Pump WINNER 4N2A-14 Price	Contact us
