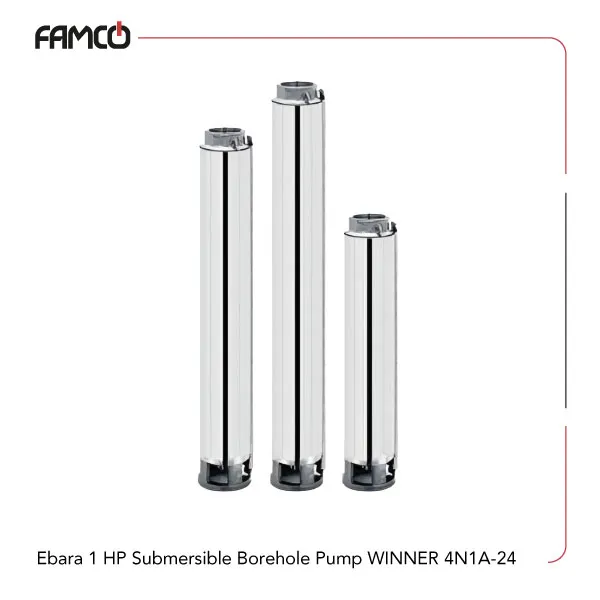

Ebara 1 HP Submersible Borehole Pump WINNER 4N1A-24 Specifications
This pump features a power output of 0.75 kW (1 HP), making it well suited for a wide range of pumping applications. It delivers a maximum flow rate of 2.1 cubic meters per hour (35 liters per minute), ensuring efficient and controlled liquid transfer. With a maximum head of 127 meters, this Ebara submersible pump is ideal for high-lift and deep-well installations. The unit is designed for submerged operation at depths of up to 100 meters and can handle liquid temperatures up to 40°C. It is capable of operating in environments containing sand concentrations of up to 50 ppm, ensuring reliable performance in applications with moderate particulate content. The motor is configured with two poles and features insulation class F, providing effective thermal protection and long service life. With an IP58 protection rating, the pump offers strong resistance to dust and water ingress, making it suitable for outdoor and demanding operating conditions.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Maximum Flow rate (m3/h) | 2.1 |
| Maximum Flow rate (l/min) | 35 |
| Maximum head (m) | 127 |
| Maximum immersion depth (m) | 100 |
| Maximum liquid temperature (°C) | 40 |
| Maximum sand content (ppm) | 50 |
| Poles | 2 |
| Insulation class | F |
| Protection degree | IP58 |
Ebara 1 HP Submersible Borehole Pump WINNER 4N1A-24 Applications
- Industrial liquid transfer
- Deep well water pumping
- Irrigation systems
- Construction site dewatering
Ebara 1 HP Submersible Borehole Pump WINNER 4N1A-24 Benefits
- High efficiency with a powerful 0.75 kW motor
- Capable of lifting liquids up to 127 meters
- Suitable for sandy or particulate liquids
- Durable and protected against dust and water
Ebara 1 HP Submersible Borehole Pump WINNER 4N1A-24 Price List
| No. | Name | Price |
| 1 | Ebara 1 HP Submersible Borehole Pump WINNER 4N1A-24 Price | Contact us |
