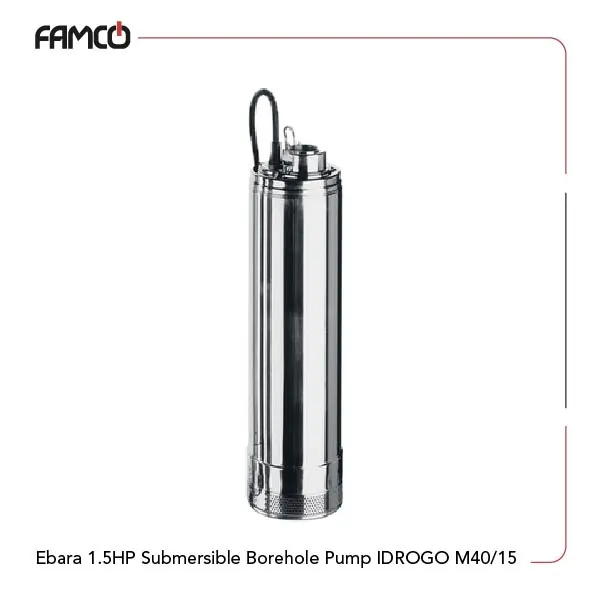

Ebara 1.5HP Submersible Borehole Pump IDROGO M40/15 Specifications
Ebara 1.5HP submersible borehole pump IDROGO M40/15 is designed to be used in both residential and industrial settings. The pump’s impressive head range and power make it suitable for tasks such as drainage, irrigation, and wastewater management. is designed to operate at a maximum temperature of +40°C and can handle solids up to 2.5 mm in size. The casing is made from EN 1.4301 (AISI 304) stainless steel, ensuring durability and resistance to corrosion. The impeller is reinforced with PPE and PS glass fiber to provide strength and efficiency. This pump features a dual shaft seal system, with SiC/Carbon/NBR on the pump side and Carbon/Ceramic/NBR on the motor side to deliver a steady course of operation. This Ebara submerrsible pump uses white mineral oil (Esso Marcol 152) for lubrication, with a capacity of 90 cc. It operates on a frequency of 50 Hz and is available in both single-phase (230 V) and three-phase (230-400 V) configurations. The head range is impressive, spanning from 23.5 to 84 meters, making it suitable for various applications. The motor frame is also constructed from AISI 304, and the insulation class is rated at Class F, ensuring safety and reliability. Additionally, it has a protection degree of IP 68 which is suitable for wet environments. An optional float switch is available for added functionality.
| Specification | Value | |
| Maximum liquid temperature (°C) | max. +40 | |
| Max solids size (mm) | 2.5 | |
| No. of Poles | 2 | |
| Rotation speed (rpm) | ≈2800 | |
| Insulation Class | Class F | |
| Protection degree | IP 68 | |
| Frequency (Hz) | 50 | |
| Float Switch | Optional | |
| Power (kW) | 1.1 | |
| Power (HP) | 1.5 | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Head (m) | 23.5-84 | |
| Height (mm) | 616 | |
Ebara 1.5HP Submersible Borehole Pump IDROGO M40/15 Materials
- Casing: EN 1.4301 (AISI 304)
- Impeller: PPE+PS glass fiber reinforced
- Shaft seal Pump side: SiC/ Carbon /NBR
- Shaft seal Motor side: Carbon/Ceramic/NBR
- Lubricating liquid: White mineral oil, Esso Marcol 152 (90 cc)
- Motor frame: AISI 304
Ebara 1.5HP Submersible Borehole Pump IDROGO M40/15 Technical Data
| l/min | 0 | 20 | 30 | 40 | 60 | 80 |
| m3 /h | 0 | 1.2 | 1.8 | 2.4 | 3.6 | 4.8 |
| H (m) | 84 | 75.7 | 70.3 | 63.6 | 45.7 | 23.5 |

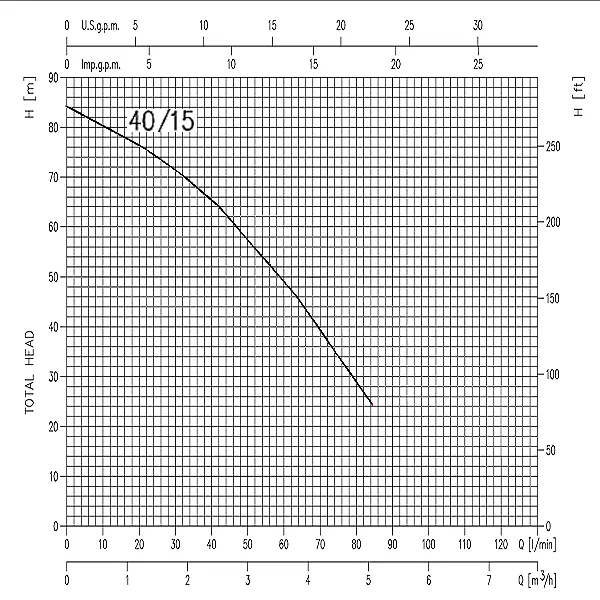

Ebara 1.5HP Submersible Borehole Pump IDROGO M40/15 Performance Curve
Ebara 1.5HP Submersible Borehole Pump IDROGO M40/15 Applications
- Drainage of flooded areas
- Irrigation systems for agriculture
- Wastewater management in industrial settings
- Pumping of liquids with small solids
Ebara 1.5HP Submersible Borehole Pump IDROGO M40/15 Benefits
- Durable stainless steel construction for longevity
- High efficiency with a powerful motor
- Versatile applications across different sectors
- Reliable operation in submerged conditions
Ebara 1.5HP Submersible Borehole Pump IDROGO M40/15 Price List
| No. | Name | Price |
| 1 | Ebara 1.5HP Submersible Borehole Pump IDROGO M40/15 Price | Contact us |
