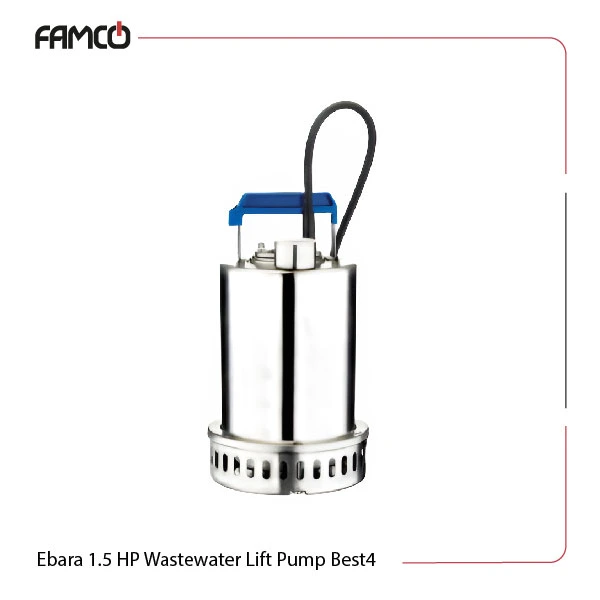

Ebara 1.5 HP Wastewater Lift Pump Best4 Specifications
This Ebara product has the ability to handle solids up to 10mm renders it suitable for various tasks, from draining pools to managing wastewater. The product’s compact design (while only weighing 13.8 kg) and efficient power usage ensure it fits into tight spaces while delivering excellent performance, simultaneously. This submersible pump is designed for both clean and dirty water applications with compatiblity to both single- or three-phase setups (230 and 400V). It handles a maximum temperature of 35°C and solids up to 10mm in size, which is imperative coming from a sewage pump of this potential. The product’s maximum immersion depth of 7 meters sets it apart among sewage pumps of this capacity level. The casing, impeller, and casing cover are all made from durable AISI 304 stainless steel, so it stays resistant to corrosion. The shaft seal features a combination of SiC and NBR materials on the pump side, while the motor side uses Carbon and Ceramic for added reliability.
| Specification | Value | |
| Type of liquid | clean/dirty water | |
| Max. Temperature (℃) | 35 | |
| Max. Solids size (mm) | 10 (suspended particles) | |
| Max immersion (m) | 7 | |
| No. of poles | 2 | |
| Insulation class | F | |
| Protection degree | IP68 | |
| H (m) | 4.6-18 | |
| Power rating (kW) | 1.1 | |
| Power rating (HP) | 1.5 | |
| Frequency (Hz) | 50 | |
| Voltage (V) | single phase | 230 |
| three-phase | 400 | |
Ebara 1.5 HP Wastewater Lift Pump Best4 Materials
- Casing: AISI 304
- Impeller: AISI 304
- Casing cover: AISI 304
- Shaft seal pump side: SiC/ SiC/NBR
- Shaft seal motor side: Carbon/Ceramic/NBR
- Shaft: AISI 303 (wet extension)
- Mechanical seal: NBR
EEbara 1.5 HP Wastewater Lift Pump Best4 Dimensions and Weight
| Dimensions (mm) | H | 377 |
| H | 340 | |
| Weight (kg) | 13.8 | |
Ebara 1.5 HP Wastewater Lift Pump Best4 Technical Data
| l/min | 0 | 20 | 40 | 80 | 120 | 160 | 170 | 200 | 260 | 280 | 300 | 330 |
| m3 /h | 0 | 1.2 | 2.4 | 4.8 | 7.2 | 9.6 | 10.2 | 12 | 15.6 | 16.8 | 18 | 19.8 |
| H (m) | 18 | 17.4 | 16.6 | 15 | 13.4 | 11.7 | 11.3 | 10 | 7.5 | 6.7 | 5.9 | 4.6 |

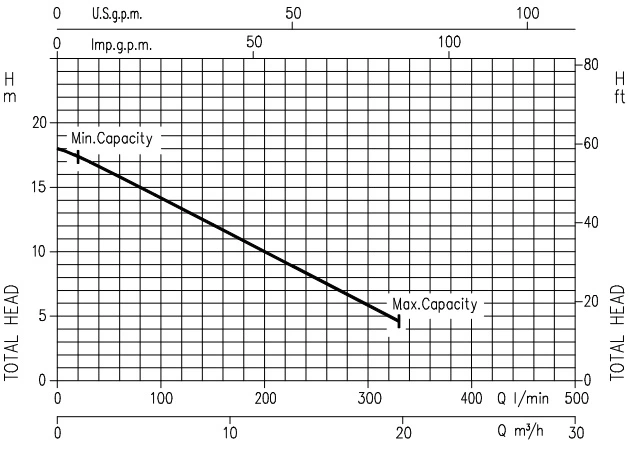

Ebara 1.5 HP Wastewater Lift Pump Best4 Performance Curve
Ebara 1.5 HP Wastewater Lift Pump Best4 Applications
- Draining flooded areas or basements
- Irrigation systems for gardens and farms
- Wastewater management in residential settings
- Pumping water from wells or deep sources
Ebara 1.5 HP Wastewater Lift Pump Best4 Benefits
- Durable AISI 304 stainless steel construction
- Handles both clean and dirty water effectively
- Compact design for easy installation
- High protection degree (IP68) for submerged use
Ebara 1.5 HP Wastewater Lift Pump Best4 Price List
| No. | Name | Price |
| 1 | Ebara 1.5 HP Wastewater Lift Pump Best4 Price | Contact us |
