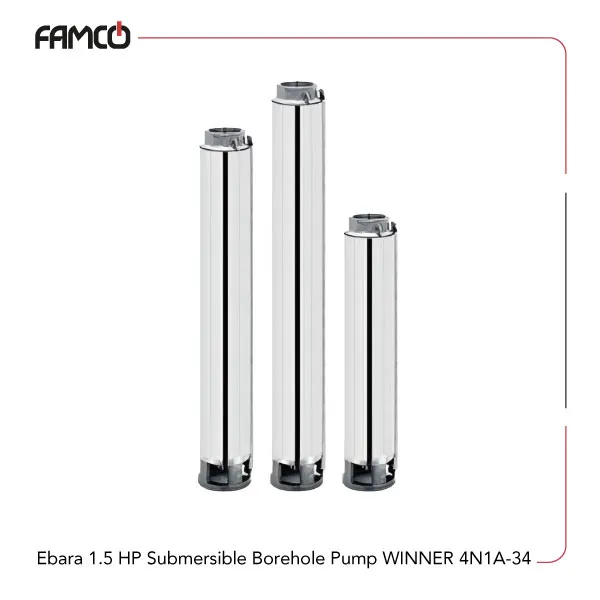

Ebara 1.5 HP Submersible Borehole Pump WINNER 4N1A-34 Specifications
Ebara 1.5 HP submersible borehole pump WINNER 4N1A-34 delivers a power output of 1.1 kW (1.5 HP). It supports a maximum flow rate of 2.1 cubic meters per hour (35 liters per minute), enabling efficient and controlled liquid transfer. With a maximum head of 180 meters, this Ebara submersible pump is capable of handling high-lift installations and versatile positioning. Designed for submerged operation, it can operate at immersion depths of up to 100 meters and handle liquids with temperatures up to 40°C. The unit is capable of tolerating sand content of up to 50 ppm, ensuring reliable performance in moderately contaminated environments. The motor features a two-pole design with insulation class F, providing effective thermal stability. An IP58 protection rating safeguards the pump against dust and water ingress, making it suitable for outdoor and harsh conditions.
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Maximum Flow rate (m3/h) | 2.1 |
| Maximum Flow rate (l/min) | 35 |
| Maximum head (m) | 180 |
| Maximum immersion depth (m) | 100 |
| Maximum liquid temperature (°C) | 40 |
| Maximum sand content (ppm) | 50 |
| Poles | 2 |
| Insulation class | F |
| Protection degree | IP58 |
Ebara 1.5 HP Submersible Borehole Pump WINNER 4N1A-34 Applications
- Irrigation systems in agriculture
- Deep well water extraction
- Industrial liquid transfer
- Construction site dewatering
Ebara 1.5 HP Submersible Borehole Pump WINNER 4N1A-34 Benefits
- High efficiency with a strong 1.5 HP motor
- Suitable for deep immersion up to 100 meters
- Durable design with IP58 protection
- Handles liquids with sand content up to 50 ppm
Ebara 1.5 HP Submersible Borehole Pump WINNER 4N1A-34 Price List
| No. | Name | Price |
| 1 | Ebara 1.5 HP Submersible Borehole Pump WINNER 4N1A-34 Price | Contact us |
