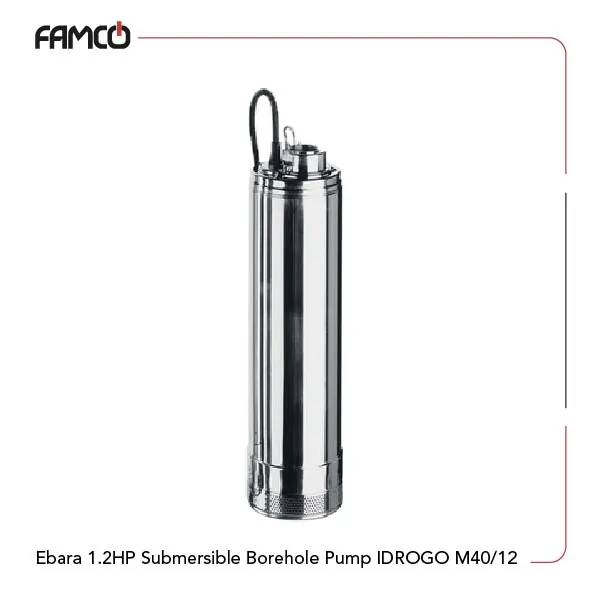

Ebara 1.2HP Submersible Borehole Pump IDROGO M40/12 Specifications
This product is designed to operate efficiently under a maximum temperature of +40°C. It can handle solids up to 2.5 mm in size, making it suitable for various applications. The materials used in its build are durable, for instance, the casing is made from EN 1.4301 (AISI 304) stainless steel for optimal resistance to corrosion. The impeller is reinforced with PPE and PS glass fiber to provide sufficient strength. This Ebara submersible pump features a dual shaft seal system, with SiC/Carbon/NBR on the pump side and Carbon/Ceramic/NBR on the motor side, enhancing its longevity. It uses white mineral oil (Esso Marcol 152) as a lubricating liquid, with a capacity of 90 cc. The product’s motor operates at a speed of approximately 2800 rpm and has an insulation class of F. Its protection degree is rated at IP 68, which is well-suited for wet environments. The dimensions are compact, with a height of 590 mm, making it easy to install in various settings.
| Specification | Value | |
| Temperature | +40 | |
| Max solids size (mm) | 2.5 | |
| No. of Poles | 2 | |
| Rotation speed (rpm) | ≈2800 | |
| Insulation Class | Class F | |
| Protection degree | IP 68 | |
| Frequency (Hz) | 50 | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Float Switch | Optional | |
| Motor frame | AISI 304 | |
| Power (kW) | 0.9 | |
| Power (HP) | 1.2 | |
| Head (m) | 20.2-72 | |
| Height (mm) | 590 | |
Ebara 1.2HP Submersible Borehole Pump IDROGO M40/12 Materials
- Casing: EN 1.4301 (AISI 304)
- Impeller: PPE+PS glass fiber reinforced
- Shaft seal Pump side: SiC/ Carbon /NBR
- Shaft seal Motor side: Carbon/Ceramic/NBR
- Lubricating liquid: White mineral oil, Esso Marcol 152 (90 cc)
Ebara 1.2HP Submersible Borehole Pump IDROGO M40/12 Technical Data
| l/min | 0 | 20 | 30 | 40 | 60 | 80 |
| m3 /h | 0 | 1.2 | 1.8 | 2.4 | 3.6 | 4.8 |
| H (m) | 72 | 64.9 | 60.2 | 54.5 | 39.2 | 20.2 |

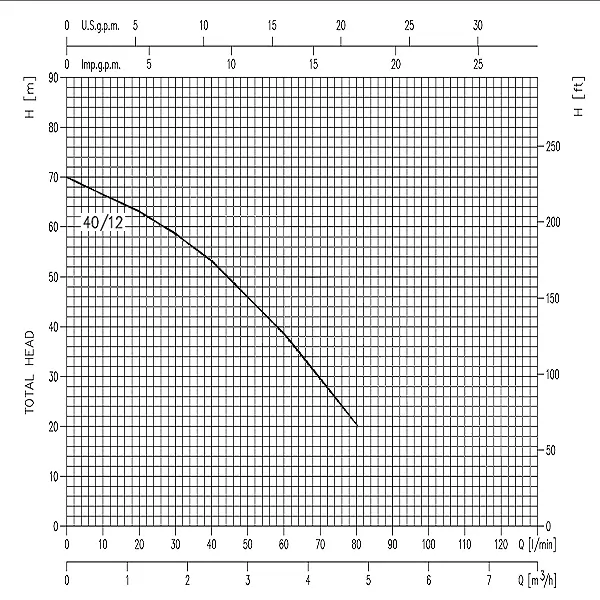

Ebara 1.2HP Submersible Borehole Pump IDROGO M40/12 Performance Curve
Ebara 1.2HP Submersible Borehole Pump IDROGO M40/12 Applications
- Water transfer in industrial settings
- Drainage in construction sites
- Irrigation systems for agriculture
- Wastewater management in municipal facilities
Ebara 1.2HP Submersible Borehole Pump IDROGO M40/12 Benefits
- Durable stainless steel construction for longevity
- High efficiency with a maximum head of 72 meters
- Versatile power options for different setups
- Optional float switch for automated operation
Ebara 1.2HP Submersible Borehole Pump IDROGO M40/12 Price List
| No. | Name | Price |
| 1 | Ebara 1.2HP Submersible Borehole Pump IDROGO M40/12 Price | Contact us |
