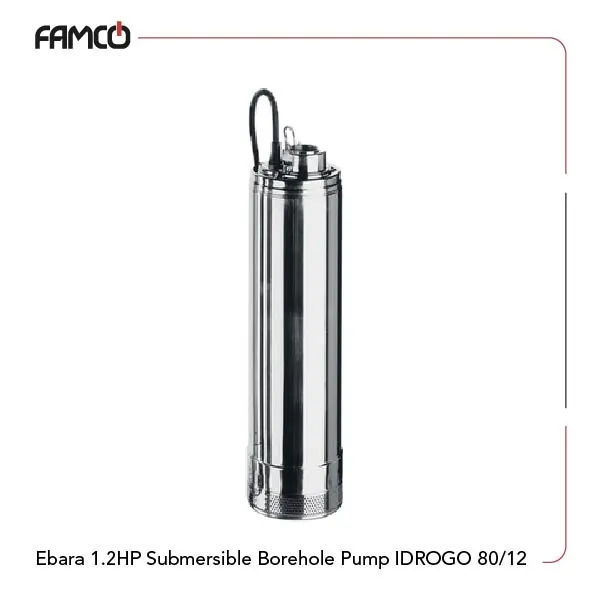

Ebara 1.2HP Submersible Borehole Pump IDROGO 80/12 Specifications
Ebara 1.2HP submersible borehole pump IDROGO 80/12 significantly operates at a maximum temperature of +40°C at various applications. This Ebara pump can handle solids up to 2.5 mm in size for efficient operation. The product’s casing is made from EN 1.4301 (AISI 304) stainless steel to increase durability and resistance to corrosion. The impeller is reinforced with PPE and PS glass fiber to enhance its ultimate strength. This Ebara submersible pump features a dual shaft seal system, with SiC/Carbon/NBR on the pump side and Carbon/Ceramic/NBR on the motor side for reliable sealing. It uses white mineral oil (Esso Marcol 152) for lubrication, with a capacity of 90 cc. The motor operates at a speed of approximately 2800 rpm and has an insulation class of F. The product’s protection degree of IP 68 is well-suited for environments with wet conditions. Ebara IDROGO 80/12 is available in both single-phase (230V) and three-phase (230-400V) configurations, with a power output of 0.9 kW (1.2 HP) and a head range of 15.2 to 49.6 meters. The overall height of the unit is 540 mm.
| Specification | Value | |
| Max. liquid temperature | +40 | |
| Max solids size (mm) | 2.5 | |
| No. of Poles | 2 | |
| Rotation speed (rpm) | ≈2800 | |
| Insulation Class | Class F | |
| Protection degree | IP 68 | |
| Frequency (Hz) | 50 | |
| Float Switch | Optional | |
| Power (kW) | 0.9 | |
| Power (HP) | 1.2 | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Head (m) | 15.2-49.6 | |
| Height (mm) | 540 | |
Ebara 1.2HP Submersible Borehole Pump IDROGO 80/12 Materials
- Motor frame: AISI 304
- Casing: EN 1.4301 (AISI 304)
- Impeller: PPE+PS glass fiber reinforced
- Shaft seal Pump side: SiC/ Carbon /NBR
- Shaft seal Motor side: Carbon/Ceramic/NBR
- Lubricating liquid: White mineral oil, Esso Marcol 152 (90 cc)
Ebara 1.2HP Submersible Borehole Pump IDROGO 80/12 Technical Data
| l/min | 0 | 20 | 30 | 40 | 60 | 80 | 100 | 120 |
| m3 /h | 0 | 1.2 | 1.8 | 2.4 | 3.6 | 4.8 | 6 | 7.2 |
| H (m) | 49.6 | – | 45.6 | 44 | 38.8 | 32 | 23.2 | 15.2 |

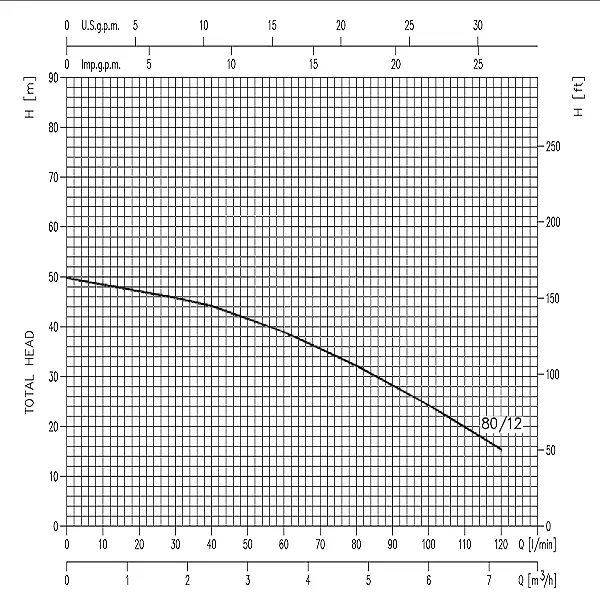

Ebara 1.2HP Submersible Borehole Pump IDROGO 80/12 Performance Curve
Ebara 1.2HP Submersible Borehole Pump IDROGO 80/12 Applications
- Industrial fluid transfer
- Wastewater management
- Irrigation systems
- Cooling systems
Ebara 1.2HP Submersible Borehole Pump IDROGO 80/12 Benefits
- Durable stainless steel construction
- High efficiency with solid handling capability
- Reliable dual shaft seal system
- Versatile power options for different setups
Ebara 1.2HP Submersible Borehole Pump IDROGO 80/12 Price List
| No. | Name | Price |
| 1 | Ebara 1.2HP Submersible Borehole Pump IDROGO 80/12 Price | Contact us |
There are no reviews yet.
