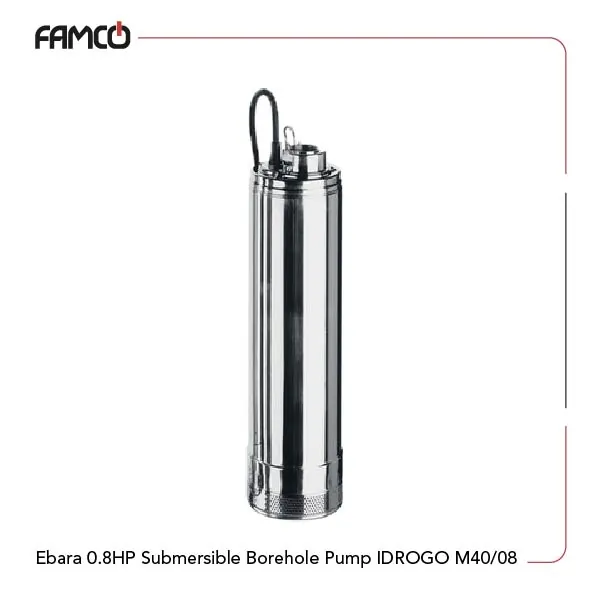

Ebara 0.8HP Submersible Borehole Pump IDROGO M40/08 Specifications
This product features a maximum temperature of +40°C and can handle solids up to 2.5 mm in size. The casing is made from EN 1.4301 (AISI 304) stainless steel, ensuring durability and resistance to corrosion. The impeller is reinforced with PPE and PS glass fiber, providing strength and efficiency. The pump’s side shaft seal consists of SiC, carbon, and NBR, while the motor side uses carbon, ceramic, and NBR for optimal sealing. It operates with white mineral oil as a lubricating liquid, specifically Esso Marcol 152 (90 cc). The product’s power output of 0.6 kW (0.8 HP) and an approximate rotation speed of 2800 rpm deliver high performance with ease. This Ebara sbmersible pump has an insulation class of F and a protection degree of IP 68, making it suitable for various environments. The voltage options include single-phase at 230V and three-phase at 230-400V. The head range is between 13.4 to 48 meters, and the dimensions are compact, measuring 30 mm in width and 513 mm in height.
| Specification | Value | |
| Temperature | +40 | |
| Max solids size (mm) | 2.5 | |
| No. of Poles | 2 | |
| Rotation speed (rpm) | ≈2800 | |
| Insulation Class | Class F | |
| Protection degree | IP 68 | |
| Frequency (Hz) | 50 | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Float Switch | Optional | |
| Power (kW) | 0.6 | |
| Power (HP) | 0.8 | |
| Head (m) | 13.4-48 | |
| Height (mm) | 513 | |
Ebara 0.8HP Submersible Borehole Pump IDROGO M40/08 Materials
- Casing: EN 1.4301 (AISI 304)
- Impeller: PPE+PS glass fiber reinforced
- Shaft seal Pump side: SiC/ Carbon /NBR
- Shaft seal Motor side: Carbon/Ceramic/NBR
- Lubricating liquid: White mineral oil, Esso Marcol 152 (90 cc)
- Motor frame: AISI 304
Ebara 0.8HP Submersible Borehole Pump IDROGO M40/08 Technical Data
| l/min | 0 | 20 | 30 | 40 | 60 | 80 |
| m3 /h | 0 | 1.2 | 1.8 | 2.4 | 3.6 | 4.8 |
| H (m) | 48 | 43.3 | 40.2 | 36.3 | 26.1 | 13.4 |

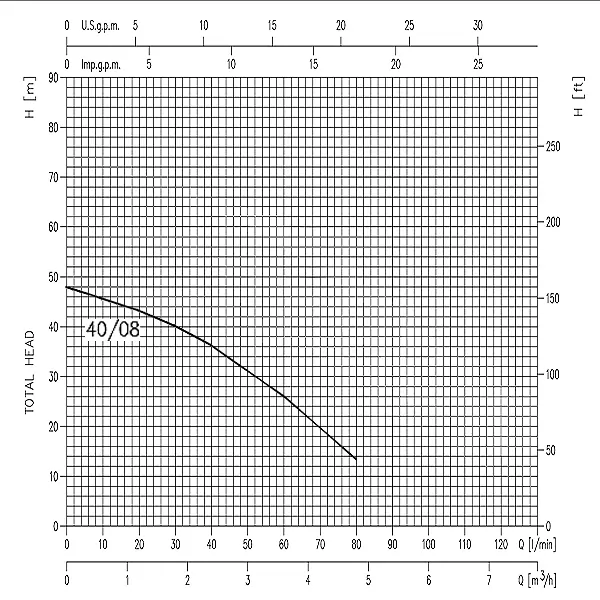

Ebara 0.8HP Submersible Borehole Pump IDROGO M40/08 Performance Curve
Ebara 0.8HP Submersible Borehole Pump IDROGO M40/08 Applications
- Industrial liquid transfer
- Wastewater management
- Agricultural irrigation systems
- Cooling systems in machinery
Ebara 0.8HP Submersible Borehole Pump IDROGO M40/08 Benefits
- Durable stainless steel construction
- High efficiency with reinforced impeller
- Versatile voltage options for various setups
- Compact design for easy installation
Ebara 0.8HP Submersible Borehole Pump IDROGO M40/08 Price List
| No. | Name | Price |
| 1 | Ebara 0.8HP Submersible Borehole Pump IDROGO M40/08 Price | Contact us |
There are no reviews yet.
