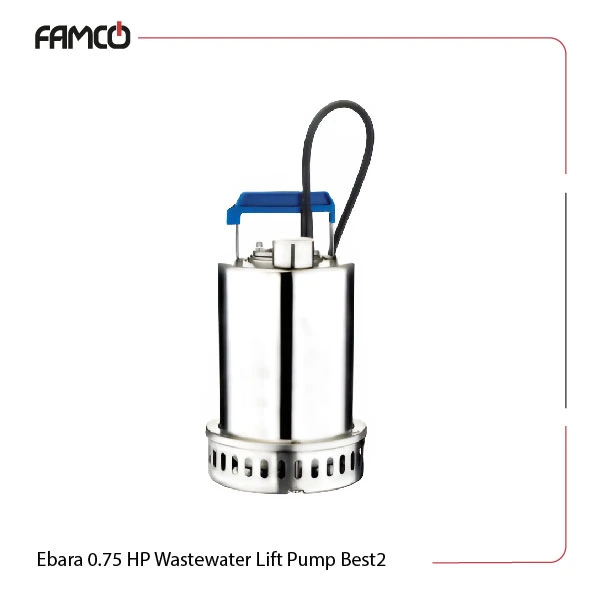

Ebara 0.75 HP Wastewater Lift Pump Best2 Specifications
This pump is designed for both clean and dirty water applications. The pump’s ability to handle suspended solids and operate at varying depths of up to 7 meters makes it ideal for a range of tasks, from drainage to irrigation. With its IP68 high protection degree and insulation class, it is built to perform reliably in demanding environments. The casing, impeller, and casing cover are made from durable AISI 304 stainless steel to reach longevity and resistance to corrosion. The shaft seal in this Ebara sewage pump features a combination of SiC and NBR materials on the pump side, while the motor side uses Carbon and Ceramic for added protection. The pump operates with a power rating of 0.55 kW or 0.75 HP in both single-phase and three-phase configurations. It has an insulation class of F and a protection degree of IP68, making it reliable in challenging conditions. As for the dimensions, these submersible pumps are compact, weighing only 12 kg.
| Specification | Value | |
| Type of liquid | clean/dirty water | |
| Max. Temperature (℃) | 35 | |
| Max. Solids size (mm) | 10 (suspended particles) | |
| Max immersion (m) | 7 | |
| No. of poles | 2 | |
| Insulation class | F | |
| Protection degree | IP68 | |
| H (m) | 2.9-13.1 | |
| Power rating (kW) | 0.55 | |
| Power rating (HP) | 0.75 | |
| Frequency (Hz) | 50 | |
| weight (kg) without packaging | 12 | |
| Voltage (V) | Single phase | 230 |
| Three phase | 400 | |
Ebara 0.75 HP Wastewater Lift Pump Best2 Materials
- Casing: AISI 304
- Impeller: AISI 304
- Casing cover: AISI 304
- Shaft seal on pump side: SiC/ SiC/NBR
- Shaft seal on motor side: Carbon/Ceramic/NBR
- Shaft: AISI 303 (wet extension)
- Mechanical seal: NBR
Ebara 0.75 HP Wastewater Lift Pump Best2 Technical Data
| l/min | 0 | 20 | 40 | 80 | 120 | 160 | 170 | 200 | 260 |
| m3 /h | 0 | 1.2 | 2.4 | 4.8 | 7.2 | 9.6 | 10.2 | 12 | 15.6 |
| H (m) | 13.1 | 12.2 | 11.4 | 9.8 | 8.3 | 6.7 | 6.3 | 5 | 2.9 |

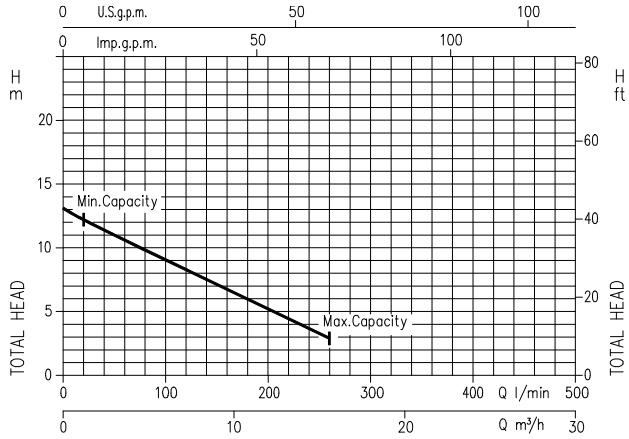

Ebara 0.75 HP Wastewater Lift Pump Best2 Performance Curve
Ebara 0.75 HP Wastewater Lift Pump Best2 Applications
- Irrigation systems for agriculture
- Drainage in construction sites
- Wastewater management
- Flood control and water removal
Ebara 0.75 HP Wastewater Lift Pump Best2 Benefits
- Durable stainless steel construction for longevity
- Handles both clean and dirty water efficiently
- High protection degree ensures reliability in harsh conditions
- Versatile applications across various industries
Ebara 0.75 HP Wastewater Lift Pump Best2 Price List
| No. | Name | Price |
| 1 | Ebara 0.75 HP Wastewater Lift Pump Best2 Price | Contact us |
