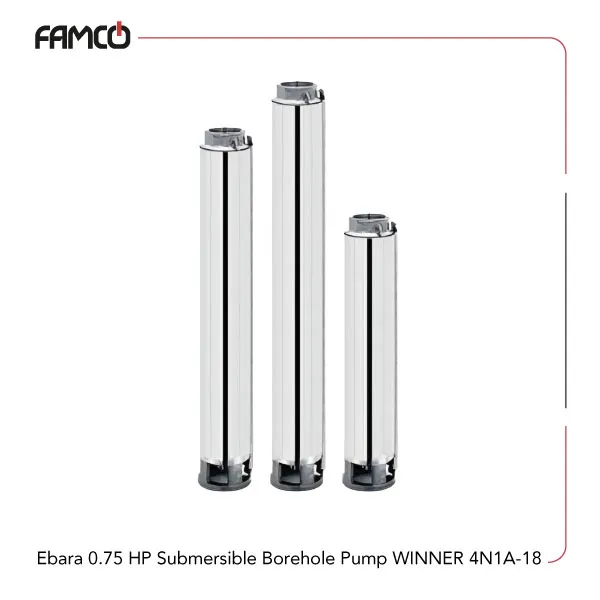

Ebara 0.75 HP Submersible Borehole Pump WINNER 4N1A-18 Specifications
Ebara submersible borehole pump WINNER 4N1A-18 delivers a power output of 0.5 kW (0.75 HP), making it suitable for a wide range of pumping tasks. It supports a maximum flow rate of 2.1 cubic meters per hour (35 liters per minute), allowing effective liquid transfer in various applications. This Ebara submersible pump can achieve a maximum delivery head of 95.5 meters, enabling it to move liquids over considerable vertical distances. Designed for submerged operation, it can be installed at depths of up to 100 meters. The unit is suitable for handling liquids with temperatures up to 40°C and can manage sand content of up to 50 ppm. It is equipped with a two-pole motor featuring insulation class F. The protection degree is IP68, providing a high level of resistance against dust and water ingress for outdoor or fully submerged use.
| Specification | Value |
| Power (kW) | 0.5 |
| Power (HP) | 0.75 |
| Maximum flow rate (m3/h) | 2.1 |
| Maximum flow rate (l/min) | 35 |
| Maximum delivery head (m) | 95.5 |
| Max.immersion (m) | 100 |
| Max.liquid temperature | 40°C |
| Max. sand content | 50 ppm |
| Poles | 2 |
| Insulation class | F |
| Protection degree | IP 68 |
Ebara 0.75 HP Submersible Borehole Pump WINNER 4N1A-18 Applications
- Deep well water extraction
- Industrial liquid transfer
- Irrigation systems
- Flood control and drainage
Ebara 0.75 HP Submersible Borehole Pump WINNER 4N1A-18 Benefits
- High durability in tough environments
- Efficient pumping with high head capacity
- Suitable for deep immersion up to 100 meters
- Waterproof and dustproof with IP 68 protection
Ebara 0.75 HP Submersible Borehole Pump WINNER 4N1A-18 Price List
| No. | Name | Price |
| 1 | Ebara 0.75 HP Submersible Borehole Pump WINNER 4N1A-18 Price | Contact us |
