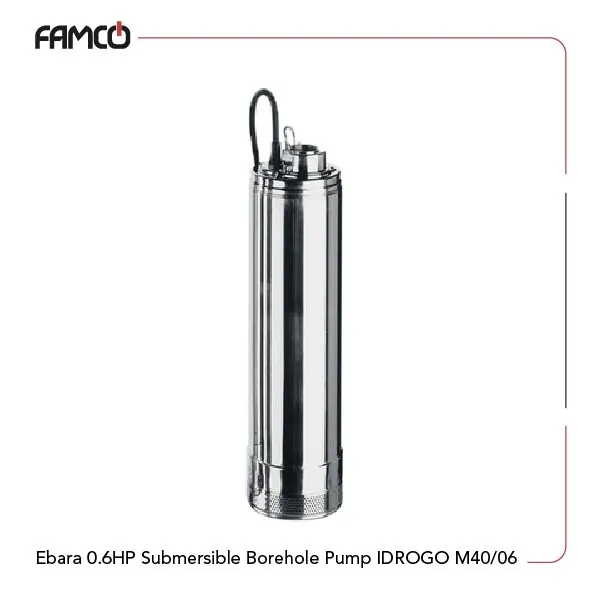

Ebara 0.6HP Submersible Borehole Pump IDROGO M40/06 Specifications
Ebara 0.6HP submersible borehole pump IDROGO M40/06 features a maximum temperature of +40°C and can handle solids up to 2.5 mm in size. The casing is made from EN 1.4301 (AISI 304) stainless steel, ensuring durability and resistance to corrosion. The impeller in this Ebara Submersible pump is reinforced with PPE and PS glass fiber, providing strength and efficiency for the whole unit. The pump side shaft seal consists of SiC, carbon, and NBR, while the motor side uses carbon, ceramic, and NBR for optimal sealing. It operates with a lubricating liquid of white mineral oil, specifically Esso Marcol 152, in a volume of 90 cc. The motor has two poles and runs at a rotation speed of approximately 2800 rpm. It is classified under insulation Class F and has a protection degree of IP 68, making it suitable for various environments. The frequency is set at 50 Hz, and an optional float switch is available. The motor frame is also made from AISI 304 stainless steel to increase durability in performance. The power output is 0.45 kW (0.6 HP), with a head range of 10.3 to 40 meters. The dimensions are compact, with a width of 30 mm and a height of 513 mm.
| Specification | Value |
| Maximum liquid temperature | +40 |
| Max solids size (mm) | 2.5 |
| No. of Poles | 2 |
| Rotation speed (rpm) | ≈2800 |
| Insulation Class | Class F |
| Protection degree | IP 68 |
| Frequency (Hz) | 50 |
| Voltage (V) | 230 |
| Phase | Single-Phase |
| Float Switch | Optional |
| Power (kW) | 0.45 |
| Power (HP) | 0.6 |
| Head (m) | 10.3-40 |
| Height (mm) | 513 |
Ebara 0.6HP Submersible Borehole Pump IDROGO M40/06 Materials
- Casing: EN 1.4301 (AISI 304)
- Impeller: PPE+PS glass fiber reinforced
- Shaft seal Pump side: SiC/ Carbon /NBR
- Shaft seal Motor side: Carbon/Ceramic/NBR
- Lubricating liquid: White mineral oil, Esso Marcol 152 (90 cc)
- Motor frame: AISI 304
Ebara 0.6HP Submersible Borehole Pump IDROGO M40/06 Technical Data
| l/min | 0 | 20 | 30 | 40 | 60 | 80 |
| m3 /h | 0 | 1.2 | 1.8 | 2.4 | 3.6 | 4.8 |
| H (m) | 40 | 33.1 | 30.8 | 27.8 | 20 | 10.3 |

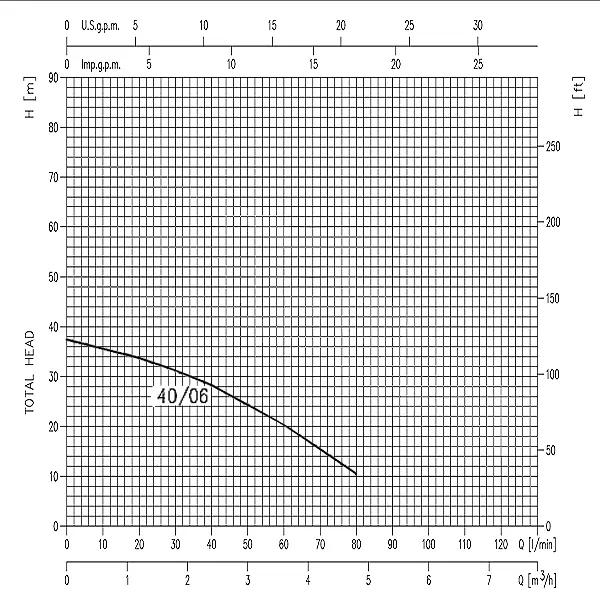

Ebara 0.6HP Submersible Borehole Pump IDROGO M40/06 Performance Curve
Ebara 0.6HP Submersible Borehole Pump IDROGO M40/06 Applications
- Water transfer in residential settings
- Industrial fluid management
- Irrigation systems
- Wastewater treatment processes
Ebara 0.6HP Submersible Borehole Pump IDROGO M40/06 Benefits
- Durable stainless steel construction
- High efficiency with reinforced impeller
- Effective sealing for reduced leaks
- Compact design for easy installation
Ebara 0.6HP Submersible Borehole Pump IDROGO M40/06Price List
| No. | Name | Price |
| 1 | Ebara 0.6HP Submersible Borehole Pump IDROGO M40/06 Price | Contact us |
