Ebara 0.5 HP Submersible Borehole Pump WINNER 4N2A-7

0.37 kW (0.5 HP)

Single- and three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Ebara Pumps, Ebara Submersible Pump

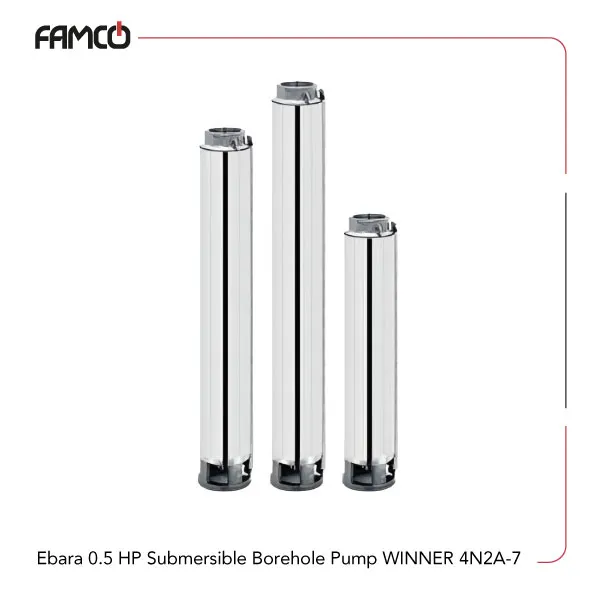

Overview of Ebara 0.5 HP Submersible Borehole Pump WINNER 4N2A-7

Ebara 0.5 HP submersible borehole pump WINNER 4N2A-7 is designed for light to medium-duty water movement where steady performance is important. It runs at 0.37 kW with an output of 0.5 HP, giving it enough strength for everyday pumping tasks. The unit can handle a maximum flow rate of 3.3 m³/h, which is equal to 55 l/min, allowing water to move at a smooth and consistent pace. For installations that require elevation or deeper wells, the motor reaches a maximum head of 46 m, providing the lift needed to move water upward without strain.

Ebara 0.5 HP Submersible Borehole Pump WINNER 4N2A-7 Specifications

Ebara submersible borehole pump WINNER 4N2A-7 is powered by a 0.37 kW (0.5 HP) motor, making it well-suited for small to medium-scale applications. It delivers a maximum flow rate of 3.3 cubic meters per hour (55 liters per minute), ensuring efficient liquid transfer across a range of operating conditions. This Ebara submersible motor can generate a maximum head of 46 meters, enabling effective pumping over substantial vertical distances. Engineered for deep-well and submerged use, the pump supports installation depths of up to 100 meters and can operate with liquids at temperatures up to 40°C. It is designed to handle sand concentrations up to 50 ppm, making it suitable for environments where moderate particulate content is present.

Specification	Value
Power (kW)	0.37
Power (HP)	0.5
Maximum Flow rate (m3/h)	3.3
Maximum Flow rate (l/min)	55
Maximum head (m)	46
Maximum immersion depth (m)	100
Maximum liquid temperature (°C)	40
Maximum sand content (ppm)	50
Poles	2
Insulation class	F
Protection degree	IP58

Ebara 0.5 HP Submersible Borehole Pump WINNER 4N2A-7 Applications

Water supply systems
Irrigation in agriculture
Drainage and flood control
Industrial liquid transfer

Ebara 0.5 HP Submersible Borehole Pump WINNER 4N2A-7 Benefits

High durability with IP58 protection
Efficient performance at deep immersion
Handles particulate matter up to 50 ppm
Energy-efficient with moderate power consumption

Ebara 0.5 HP Submersible Borehole Pump WINNER 4N2A-7 Price List

No.	Name	Price
1	Ebara 0.5 HP Submersible Borehole Pump WINNER 4N2A-7 Price	Contact us

Brand	Ebara
Power (kW)	0.37
Power (HP)	0.5
Maximum Flow Rate (L/min)	55
Maximum Flow Rate (m3/h)	3.3
Maximum Delivery Head (m)	46
Maximum immersion depth (m)	100
Maximum Liquid Temperature (°C)	40
Insulation Class	F
Degree of Protection	IP58
