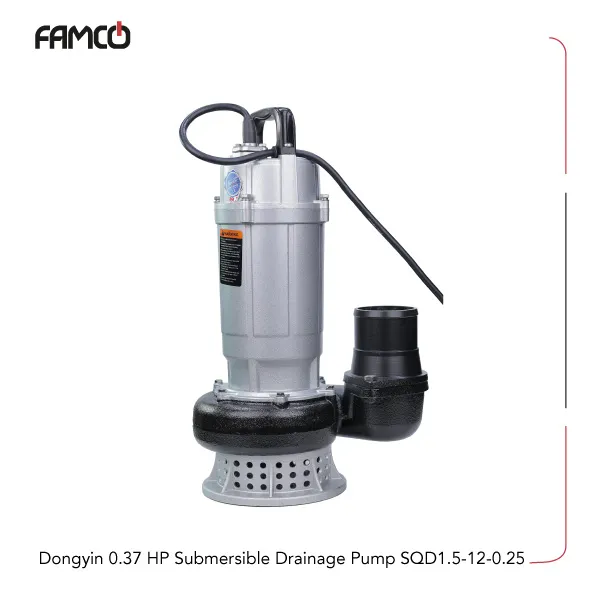

Dongyin 0.37 HP Submersible Drainage Pump SQD1.5-12-0.25

Dongyin 0.37 HP Submersible Drainage Pump SQD1.5-12-0.25 Specifications

This pump features a compact design with a power output of 0.25 kW, equivalent to 0.37 HP, making it suitable for various small to medium applications. It can handle a maximum flow rate of 5 cubic meters per hour and delivers a maximum head of 13 meters, providing efficient water transfer. The outlet size of this Dongying pump is 1 inch, and it has a solid passage of 5 mm, allowing it to pump liquids with small solids without clogging. The pump body is made from durable aluminum, a lightweight yet sturdy choice of material. Its impeller is cast aluminum, which offers good corrosion resistance and durability. The mechanical seal is composed of graphite and ceramic, providing reliable sealing and long service life. The shaft is made of stainless steel, ensuring strength and corrosion resistance. It is designed to operate with liquids up to 40°C and runs on a single-phase power supply at 50 Hz frequency. Additionally, the pump includes a float switch for automatic operation.

Dongyin 0.37 HP Submersible Drainage Pump SQD1.5-12-0.25 Applications

• Water transfer in residential and commercial settings
• Drainage and wastewater management
• Irrigation systems for farms and gardens
• Industrial fluid transfer and pumping

Dongyin 0.37 HP Submersible Drainage Pump SQD1.5-12-0.25 Benefits

• Lightweight and durable aluminum construction
• Reliable performance with cast aluminum impeller
• Automatic operation with float switch included
• Capable of handling small solids with a 5 mm passage
