Daewoo 8 kW Diesel Portable Generator DDAE 11000DSE-3 Specifications
This diesel generator offers a maximum power output of 8 kW and a rated power of 7.5 kW, making it suitable for various industrial and backup power needs. It operates on a voltage of 230/380 V with an AVR voltage regulator to ensure stable power supply. The generator features multiple sockets, including a 16A and 32A options at different voltages, and is equipped with an ATS connector for automatic transfer switch integration. This Daewoo generator’s control board has a comprehensive display for easy monitoring.
The generator can run for up to 18.5 hours at 50% load, providing reliable long-term operation. It produces a sound level of 56 dB(A) at the source and 78 dB(A) in the environment, which is relatively quiet for its class. The engine is a 670 cc, 4-stroke diesel model from Daewoo, delivering 18 HP.
It has a fuel tank capacity of 25 liters and an oil capacity of 2.1 liters. The system includes an electro-starting battery for quick ignition. Its dimensions are 1150 mm in length, 650 mm in width, and 890 mm in height, with a total weight of 220 kg. Castor wheels are included for easy mobility.
| Specification | Value |
| Maximum power | 8 kW |
| Rated power | 7.5 kW |
| Voltage | 230/380 V |
| Voltage regulator | AVR |
| Power Factor | 0.8 Cosφ |

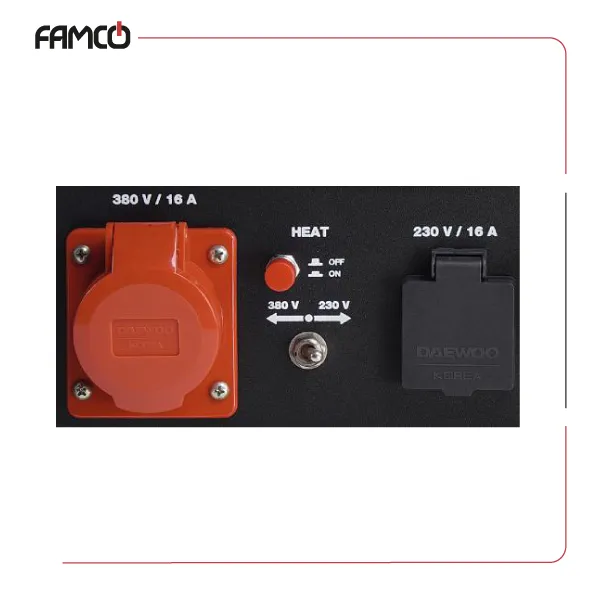

| Sockets | 1x16A (230V), 1x32A (230V), 1x16A (380V) |
| ATS Connector | YES |

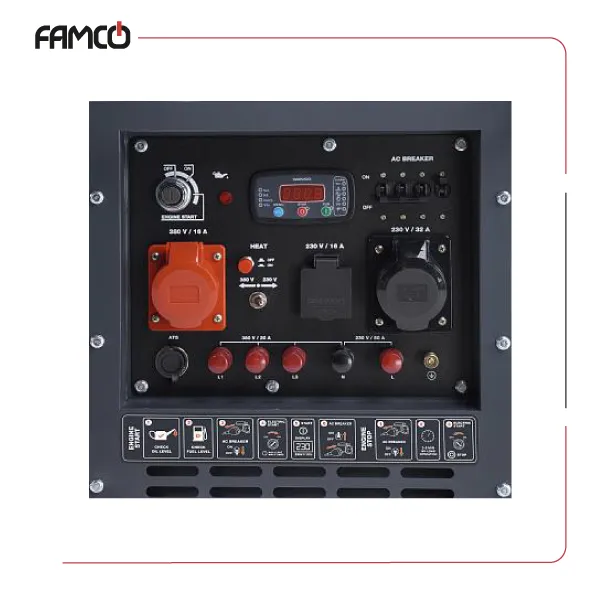

| Display | control board |
| Run time 50% load | 18.5 h |
| Sound power level | LpA 56 dB(A), LwA 78 dB |
| Displacement | 670 cc |
| Engine power | 18 HP |
| Engine model | 670 diesel |
| Engine type | 4-stroke |
| Engine manufacturer | DAEWOO |
| Fuel type | Diesel |
| Fuel tank volume | 25 l |
| Oil volume | 2.1 l |
| Starter battery | yes |
| Starting system | electro |
| Castor wheels | included |
Daewoo 8 kW Diesel Portable Generator DDAE 11000DSE-3 Dimensions and Weight
| Dimensions (L/W/H) | 1150 x 650 x 890 mm |
| Weight | 220 kg |
Daewoo 8 kW Diesel Portable Generator DDAE 11000DSE-3 Applications
- Backup power for industrial sites
- Construction site power supply
- Emergency power during outages
- Power for events and outdoor activities
Daewoo 8 kW Diesel Portable Generator DDAE 11000DSE-3 Benefits
- Reliable and stable power output
- Long runtime of up to 18.5 hours at half load
- Easy mobility with castor wheels
- Multiple socket options for versatile use
Daewoo 8 kW Diesel Portable Generator DDAE 11000DSE-3 Price List
| No. | Name | Price |
| 1 | Daewoo 8 kW Diesel Portable Generator DDAE 11000DSE-3 Price | Contact us |
