Daewoo 6.3 kW Diesel Portable Generator DDAE 9000DXE-3

6.3 kW (8.4 HP)

Single-phase or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

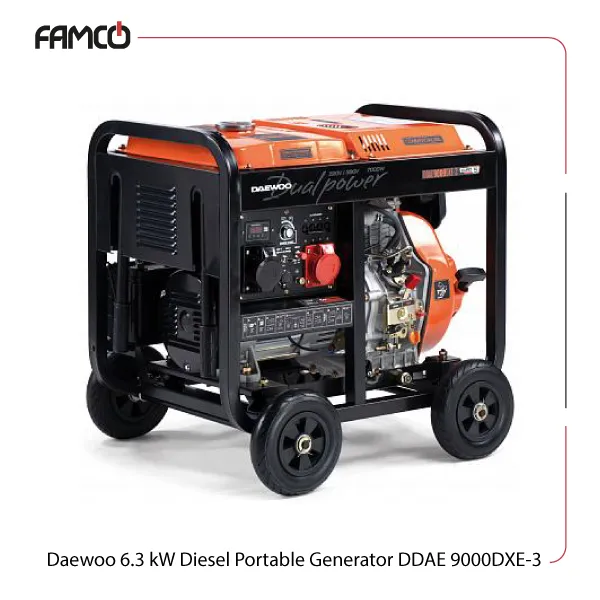

Overview of Daewoo 6.3 kW Diesel Portable Generator DDAE 9000DXE-3

This Daewoo 6.3 kW diesel generator is designed for reliable power supply in different settings. It is perfect for construction sites, backup power at homes, or small businesses. Its robust engine and efficient fuel consumption make it a popular choice for continuous operation. The generator’s compact size and manageable weight allow for easy transportation and setup. With features like a 5-in-1 display and AVR voltage regulation, users can monitor performance and ensure stable output. The generator’s quiet operation and long runtime make it suitable for extended use without disturbing the environment.

Related Products

Daewoo 6.3 kW Diesel Portable Generator DDAE 9000DXE-3 Specifications

This diesel generator offers a maximum power output of 6.3 kW and a rated power of 6 kW, making it suitable for various power needs. It operates on a voltage of 230/380 V with an AVR voltage regulator to ensure stable power supply. The generator features a power factor of 0.8 Cosφ, which helps optimize energy efficiency.

Daewoo 6.3 kW Diesel Portable Generator DDAE 9000DXE-3



It includes two sockets: a 32A socket at 230V and a 16A socket at 380V, along with an ATS connector for automatic transfer switching. The display is a 5-in-1 type, providing this Daewoo generator with multiple functions for easy monitoring. With a runtime of 13 hours at 50% load, it is ideal for extended use. The sound power level is 69 dB(A), which is relatively quiet for a generator.

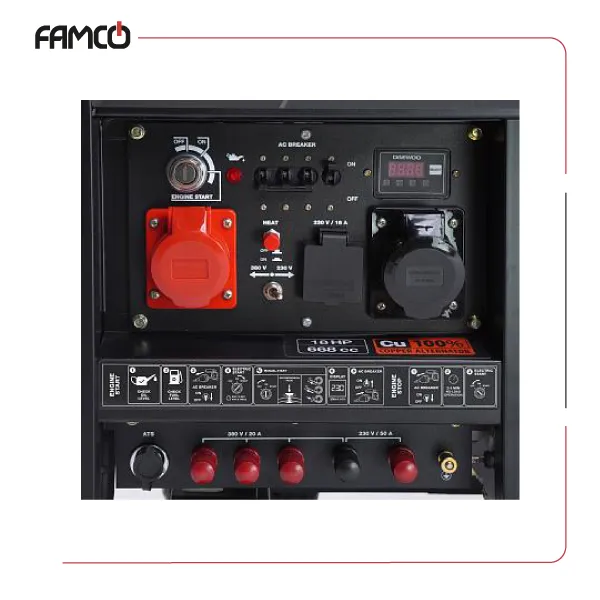

Daewoo 6.3 kW Diesel Portable Generator DDAE 9000DXE-3 Control Panel

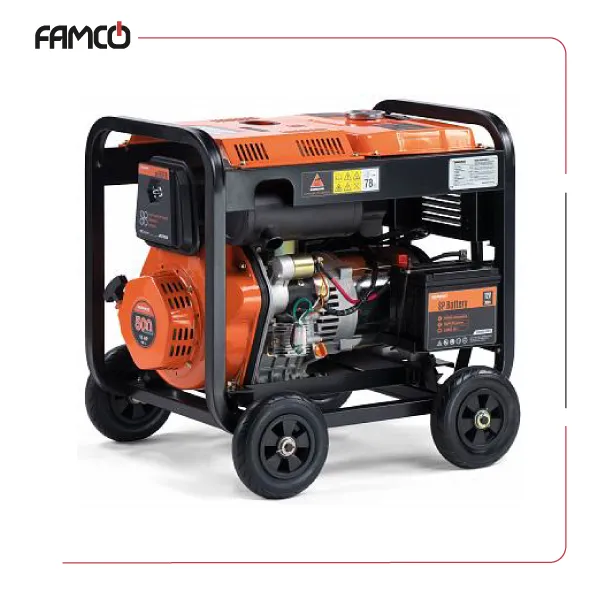

The engine is a 498 cc, 4-stroke diesel model manufactured by DAEWOO, delivering 12 HP of power. This portable Daewoo generator’s fuel tank capacity is 13.5 liters with an oil volume of 1.65 liters. The starter system includes a manual-electro starter with a battery included. Its dimensions are 745 mm in length, 510 mm in width, and 670 mm in height, and it weighs 108 kg, making it portable yet sturdy for various applications.

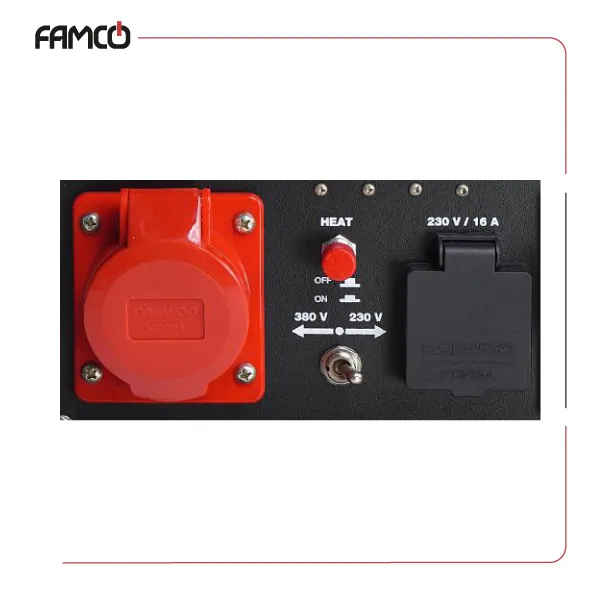

Daewoo 6.3 kW Diesel Portable Generator DDAE 9000DXE-3 Dual Mode



Specification Value
Maximum power 6.3 kW
Rated power 6 kW
Voltage 230/380 V
Voltage regulator AVR
Power Factor 0.8 Cosφ
Sockets 1x32A (230V), 1x16A (380V)
ATS Connector YES
Display 5 in 1
Run time 50% load 13 h
Sound power level 69 dB(A)
Displacement 498 cc
Engine power 12 HP
Engine model 500 diesel
Engine type 4-stroke
Engine manufacturer DAEWOO
Fuel type Diesel
Fuel tank volume 13.5 l
Oil volume 1.65 l
Starter battery yes
Starting system manual-electro



Daewoo 6.3 kW Diesel Portable Generator DDAE 9000DXE-3 Dimensions and Weight

Dimensions (L/W/H) 745 x 510 x 670 mm
Weight 108 kg



Daewoo 6.3 kW Diesel Portable Generator DDAE 9000DXE-3 Applications

  • Construction site power supply
  • Backup power for homes
  • Small business operations
  • Event and outdoor activities



Daewoo 6.3 kW Diesel Portable Generator DDAE 9000DXE-3 Benefits

  • Reliable power with high efficiency
  • Long runtime for extended use
  • Easy to monitor with 5-in-1 display
  • Portable and durable design



Daewoo 6.3 kW Diesel Portable Generator DDAE 9000DXE-3 Price List

No. Name Price
1 Daewoo 6.3 kW Diesel Portable Generator DDAE 9000DXE-3 Price Contact us
