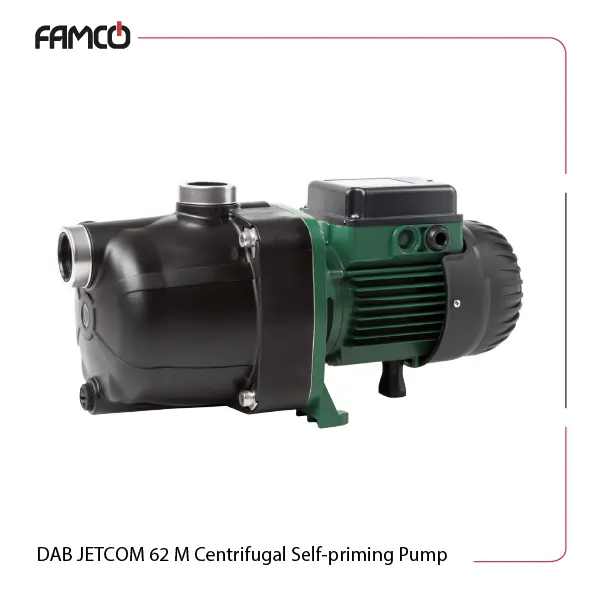

Overview of DAB JETCOM 62 M Centrifugal Self-priming Pump
The DAB JETCOM 62 M centrifugal self-priming pump is a high-performance centrifugal self-priming pump designed for a variety of residential and commercial water handling applications. Featuring a robust, corrosion-resistant construction, this pump is equipped with a stainless steel impeller and a high-quality cast iron pump body, ensuring durability and long-term reliability. The JETCOM 62 M boasts impressive self-priming capabilities, capable of drawing water from depths of up to 8 meters, making it ideal for use in systems where the water source is located below the pump level. It offers a maximum flow rate of approximately 60 liters per minute and a maximum head of up to 47 meters, delivering efficient water transfer for tasks such as irrigation, water supply, and pressure boosting.
In terms of performance, the DAB JETCOM 62 M centrifugal self-priming pump is engineered for optimal efficiency and quiet operation. It integrates a powerful, energy-efficient motor that delivers consistent performance while maintaining low noise levels. The pump’s design incorporates a built-in thermal protection system to prevent overheating and ensure safe operation under varying conditions. Additionally, the JETCOM 62 M features user-friendly installation and maintenance processes, with accessible components for easy servicing. Overall, this pump stands out for its reliable operation, robust construction, and versatile application potential in both domestic and small-scale commercial settings.
You can check the specification of DAB JETCOM 62 M centrifugal self-priming pump on this page.
How does DAB JETCOM 62 M Centrifugal Self-priming Pump work?
The DAB JETCOM 62 M centrifugal self-priming water pump operates through a combination of centrifugal force and a self-priming mechanism to move water efficiently from one location to another. Initially, the pump casing is filled with water, which is crucial for the self-priming process. When the pump is activated, the motor drives the impeller to rotate at high speeds. This rotation generates a centrifugal force that propels the water from the inlet through the pump chamber, creating a pressure differential. The resulting centrifugal force forces water outwards towards the pump’s discharge outlet, while simultaneously drawing more water into the pump’s intake from the source.
The self-priming feature of the JETCOM 62 M ensures that the pump can start without needing to manually prime it every time. This is achieved through a special design that allows the pump to automatically expel air from the pump casing and create a vacuum that pulls water into the pump chamber from a depth of up to 8 meters. Once the initial priming phase is complete, the pump continuously maintains its prime, allowing for consistent water flow and efficient operation. The combination of centrifugal force and a self-priming mechanism ensures that the pump can handle a variety of water movement tasks effectively, such as irrigation, water supply, and pressure boosting applications.
Exclusive features and benefits of DAB JETCOM 62 M Centrifugal Self-priming Pump
This DAB pump is a high-performance pump with several exclusive features and benefits:
- Self-Priming: The pump has excellent suction capacity, even in the presence of air bubbles. It’s renowned for its unique self-priming and extraordinary deep suction capability, up to 9 meters at sea level.
- Techno-polymer Construction: The pump body, impeller, diffuser, venturi tube, and sand guard are all made of techno-polymer. This material offers strength, flexibility, and corrosion resistance.
- Stainless Steel Components: The shaft with rotor is made of AISI 416 stainless steel, and the seal holder cover is made of AISI 304 stainless steel.
- Mechanical Seal: The pump features a carbon/ceramic mechanical seal.
- Motor Features: The motor is of the asynchronous type, closed, with external air cooling. The rotor is mounted on oversized greased-for-life ball bearings, ensuring low noise and long life. The single-phase version has a permanently inserted capacitor.
- Operating Range: The pump operates from 0.6 to 5.4 m3/h with a head up to 54 meters.
- Liquid Quality Requirements: The pump is suitable for pumping clean water that is free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised, and chemically neutral.
- Electronic Pump Control: The pump features electronic pump control with dry run protection and auto restart.
- Temperature Range: The liquid temperature range for domestic use is from 0°C to +35°C. For other uses, the range is from 0°C to +40°C.
DAB JETCOM 62 M Centrifugal Self-priming Pump installation and usage
Installation:
- Site Preparation: Ensure the pump is installed on a stable, level surface near the water source.
- Pipe Connections: Connect the inlet and outlet pipes. Ensure the inlet pipe is submerged and free from air leaks.
- Priming: Fill the pump casing and the inlet pipe with water to enable self-priming.
- Electrical Connection: Connect the pump to a suitable power source according to the manufacturer’s specifications.
- Check Operation: Power the pump and check for proper operation and any leaks.
Applications:
- Domestic Water Supply: Providing water for homes and small buildings.
- Garden Irrigation: Watering plants and lawns.
- Pressure Boosting: Increasing water pressure in residential systems.
- Rainwater Harvesting: Pumping rainwater for reuse.
DAB JETCOM 62 M Centrifugal Self-priming Pump components
The DAB JETCOM 62 M centrifugal self-priming pump components include:
- Pump Body: Main housing for internal components.
- Impeller: Rotates to move water.
- Diffuser: Directs water flow from the impeller.
- Self-Priming Chamber: Allows the pump to draw water from the source.
- Motor: Powers the impeller.
- Mechanical Seal: Prevents leaks between the motor and pump chamber.
- Pressure Switch: Controls pump operation based on water pressure.
- Inlet/Outlet Ports: Connect pipes for water intake and discharge.
Important tips for buying DAB JETCOM 62 M Centrifugal Self-priming Pump
- Check Flow Rate: Ensure it meets your water supply needs.
- Verify Head Height: Confirm it matches the required lift for your application.
- Assess Power Requirements: Match the pump’s power needs with your electrical supply.
- Consider Build Quality: Look for durable materials for long-term use.
- Check Self-Priming Capacity: Ensure it can prime effectively for your setup.
- Review Manufacturer’s Warranty: Look for a reliable warranty for support and service.
- Price: You can check DAB JETCOM 62 M centrifugal self-priming pump price on Famcocorp website
You can buy DAB JETCOM 62 M centrifugal self-priming pump online from Famcocorp.
DAB JETCOM 62 M Centrifugal Self-priming Pump Price List
| No. | Name | Price |
| 1 | DAB JETCOM 62 M centrifugal self-priming pump price | Contact us |
