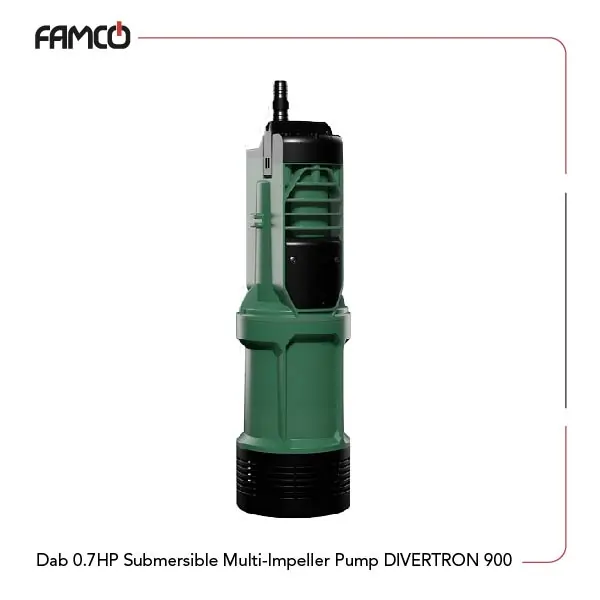

Dab 0.7HP Submersible Multi-Impeller Pump DIVERTRON 900

Dab 0.7HP Submersible Multi-Impeller Pump DIVERTRON 900 Specifications

Dab 0.7HP submersible multi-impeller pump DIVERTRON 900 is designed for a maximum operation depth of 12 meters; suitable for various applications. This Dab submersible pump handles clean liquids that are free from solid or abrasive substances. The temperature range for the liquid in this Dab pump is anywhere from 0°C to +40°C to increase adaptability to different setups. The product’s maximum immersion depth is 15 meters and the pump diameter is set at 160 mm. The impeller is made from a combination of technopolymer and stainless steel AISI 304 to reach utmost durability. The shaft and motor shaft are constructed from stainless steel AISI 304 and AISI 416, respectively, adding up to the pumps’ strength and longevity. The pump body, diffuser, and handle are also made from technopolymer, contributing to a lightweight design. It has a protection class of IP 68, which means it is well-protected against dust and water particles in most cases. The motor insulation class is F to guarantee a safe operation under various conditions. It requires a single-phase power input of 230 V at 50 Hz and can be installed either fixed or movable in a vertical position. The head range is impressive, varying from 13.6 to 44.5 meters, making it suitable for different pumping needs.

Specification	Value
Maximum Operation Depth	12 m
Liquid Temperature Range	From 0°C to +40°C
Maximum Immersion Depth	15 m
Pump Maximum Diameter	160 mm
Protection Class	IP 68
Motor Insulation Class	F
Single Phase Power Input	230 V
Frequency (Hz)	50
Power (kW)	0.56
Power (HP)	0.75
Head (m)	13.6-44.5
Voltage (V)	220-240
Frequency (Hz)	50

Dab 0.7HP Submersible Multi-Impeller Pump DIVERTRON 900 Materials

• Shaft: SS AISI 304
• Motor Shaft: SS AISI 416
• Pump Body: Technopolymer
• Diffuser: Technopolymer
• Handle: Technopolymer
• Impeller Material: Technopolymer/ SS AISI 304



Dab 0.7HP Submersible Multi-Impeller Pump DIVERTRON 900 Weight and Dimensions

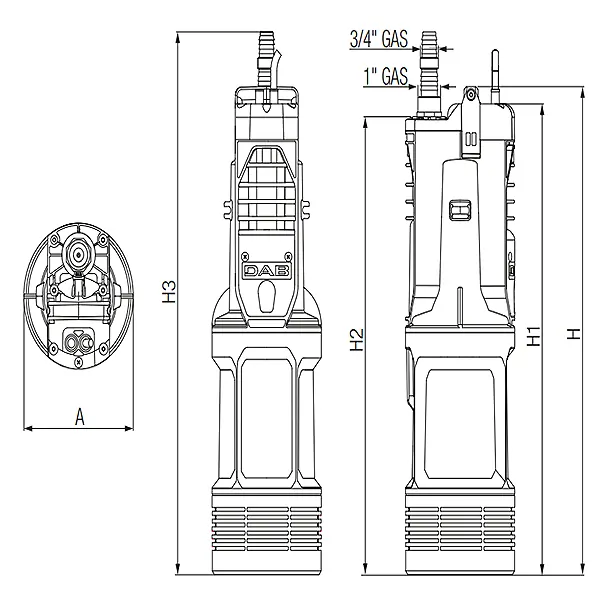

The figure below shows the dimensions of Dab 0.7HP submersible multi-impeller pump Diverton 900:

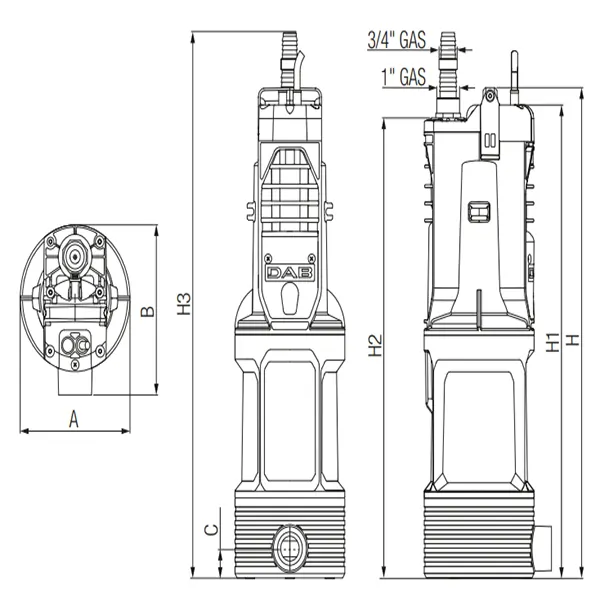

Also the picture below illustrates the dimensions of Dab 0.7HP submersible multi-impeller pump Diverton X 900:

Dimensions (mm)								Weight (kg)
Diverton 900	A	B	C	H	H1	H2	H3	11
	Ø 160	–	–	536	517	503	596
Diverton X 900	Ø 160	186	33	536	517	503	596



Dab 0.7HP Submersible Multi-Impeller Pump DIVERTRON 900 Technical Data

m3/h	0	1.2	1.8	2.4	3.0	3.6	4.2	4.8
l/min	0	20	30	40	50	60	70	70
H (m)	44.5	40.9	37.8	34.1	30.2	25.3	19.8	13.6

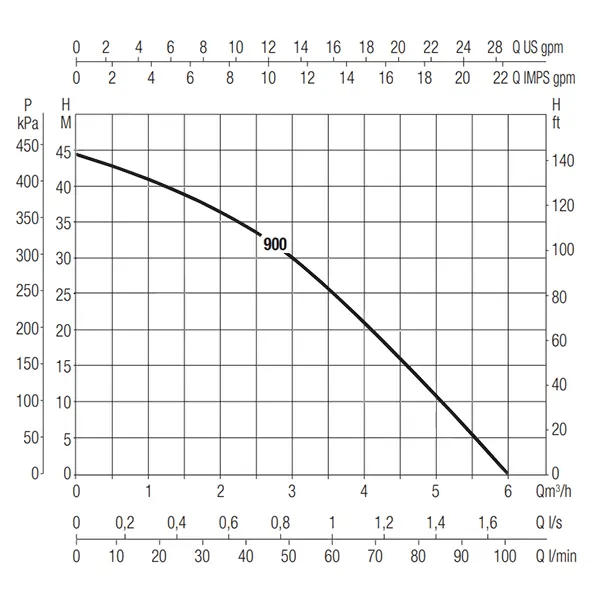

Dab 0.7HP Submersible Multi-Impeller Pump DIVERTRON 900 Performance Curve

Dab 0.7HP Submersible Multi-Impeller Pump DIVERTRON 900 Applications

• Residential water supply systems
• Agricultural irrigation
• Industrial liquid transfer
• Aquarium and pond water circulation



Dab 0.7HP Submersible Multi-Impeller Pump DIVERTRON 900 Benefits

• Durable construction with stainless steel and technopolymer materials
• Versatile temperature and depth range for various applications
• Lightweight and easy to install in different positions
• High protection class ensures reliability in harsh environments



Dab 0.7HP Submersible Multi-Impeller Pump DIVERTRON 900 Price List

No.	Name	Price
1	Dab 0.7HP Submersible Multi-Impeller Pump DIVERTRON 900 Price	Contact us
