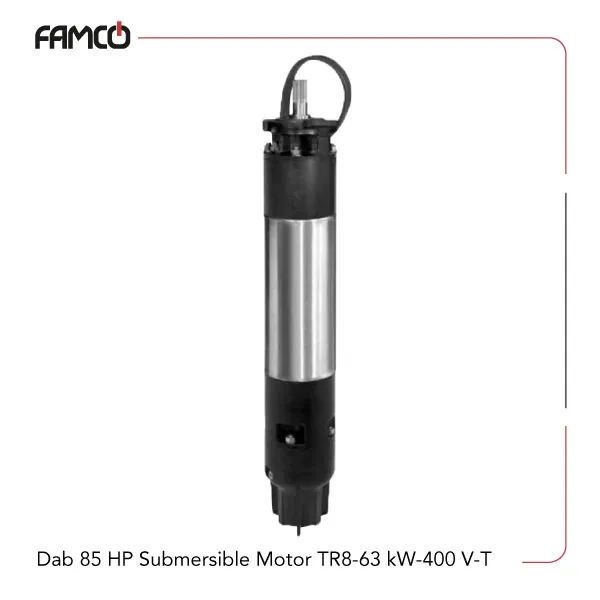

Dab 85 HP Submersible Motor TR8-63 kW-400 V-T Specifications
Dab 85 HP submersible motor TR8-63 kW-400 V-T delivers 63 kW (85 HP) of power and operates at 3000 rpm, making it suited for demanding applications. It draws 126 amperes and has a starting current ratio of 5.7, offering strong starting performance. The motor is equipped with a NEMA 8″ flanging, ensuring compatibility with a wide range of equipment. This Dab submersible motor carries an IP58 protection rating, with an IP68 option available for environments that require higher resistance to dust and water. Cooling is supported by a flow speed of 0.5 meters per second, helping maintain stable temperatures during operation. The motor accepts voltage variations of +6% to -10% and can handle up to 10 starts per hour, making it appropriate for setups that involve intermittent operation. Designed for underwater and high-pressure conditions, it can operate at depths up to 300 meters and withstand pressures up to 60 bar.
| Specification | Value |
| Power (kW) | 63 |
| Power (HP) | 85 |
| Current (A) | 126 |
| Starting Current Ratio | 5.7 |
| P1 (W) | 72414 |
| Speed (rpm) | 3000 |
| Flanging | NEMA 8″ |
| Protection Class | IP58(IP68 on request) |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts | 10/h |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation | 30 HP – 125 HP |
Dab 85 HP Submersible Motor TR8-63 kW-400 V-T Applications
- Underwater pumping systems
- High-pressure industrial machinery
- Oil and gas extraction equipment
- Marine and subsea operations
Dab 85 HP Submersible Motor TR8-63 kW-400 V-T Benefits
- High power output for demanding tasks
- Excellent water and dust resistance
- Flexible operation with multiple starts per hour
- Durable design suitable for harsh environments
Dab 85 HP Submersible Motor TR8-63 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 85 HP Submersible Motor TR8-63 kW-400 V-T Price | Contact us |
