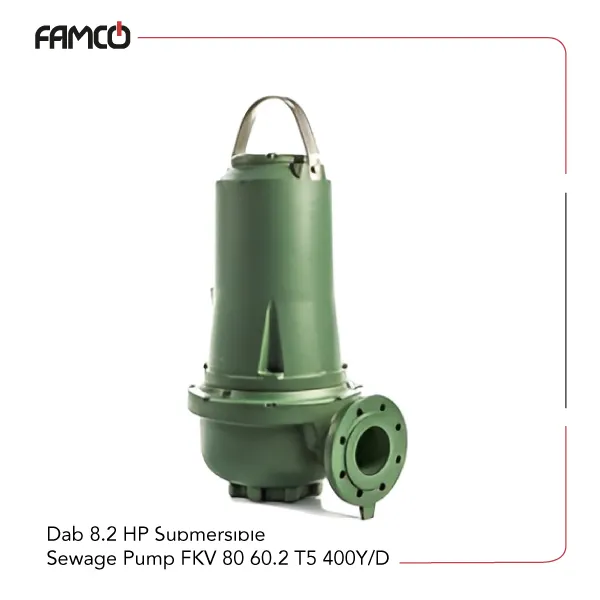

Overview of Dab 8.2 HP Submersible Sewage Pump FKV 80 60.2 T5 400Y/D

The FKV 80 60.2 T5 400Y/D Dab pump is configured on a three-phase voltage of 400V. It has the built-in capacity to handle heavy-duty applications where solids are present in the fluid. Its vortex impeller efficiently handles debris up to 100 mm, making it ideal for wastewater, industrial, and drainage systems. The robust cast iron construction ensures longevity, even in tough environments. With a high flow rate and substantial head capacity, it can move large volumes of liquid quickly and effectively. The pump’s ability to operate at various depths and temperatures adds to its versatility. It is suitable for use in industrial settings, sewage management, and other demanding fluid transfer tasks. The reliable mechanical seals and powerful motor make it a dependable choice for continuous operation.

Dab 8.2 HP Submersible Sewage Pump FKV 80 60.2 T5 400Y/D Specifications

This pump features a vortex impeller made of durable cast iron, designed to handle solids between 65 and 100 mm. It operates efficiently within a pH range of 6.5 to 12 and can manage fluid temperatures from 0°C up to 40°C. The pump can be installed at depths up to 20 meters, making the presented Dab sewage pump suitable for various applications. It has a maximum delivery head of 29.1 meters and a flow rate of 1320 liters per minute, ensuring strong performance. The mechanical seals are made of SiC/SiC on the pump side of this Dab submersible pump and SiC/Carbon on the motor side, providing reliable sealing and durability. Powered by a 6 kW (8.2 HP) motor supplied at 400 V three-phase voltage, it weighs 152 kg, indicating a solid build for demanding tasks.

Specification	Value
Impeller Type	Vortex
Solid Handling	65 – 100 mm
Fluid pH	6.5- 12
Fluid Temperature Range	from 0° to +40°C
Max installation Depth	20 m
Impeller Material	cast iron
Mechanical seal pump side	SiC/SiC
Mechanical seal motor side	SiC/Carbon
Max delivery head	29.1 m
Max flow rate	1320 l/min
Three-phase voltage	400 V
Power	6 kW
Power (HP)	8.2 HP
Weight	152 kg

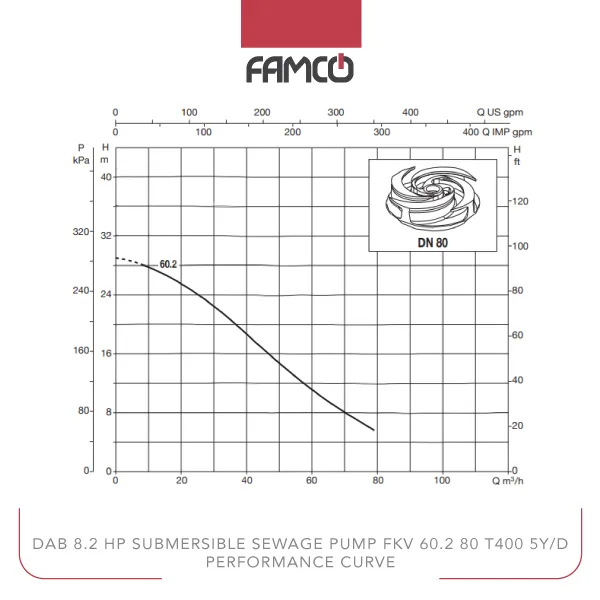

Dab 8.2 HP Submersible Sewage Pump FKV 80 60.2 T5 400Y/D Performance Data

m3 /h	0	7.2	14.4	21.6	28.8	36	43.2	50.4	57.6	64.8	72	79.2
l/min	0	120	240	360	480	600	720	840	960	1080	1200	1320
Head (m)	29.1	28.4	27	25.1	22.8	20.3	17.6	14.8	12.2	9.8	7.3	5.5

Dab 8.2 HP Submersible Sewage Pump FKV 80 60.2 T5 400Y/D Applications

Wastewater and sewage pumping
Industrial fluid transfer
Drainage systems
Flood control and water management

Dab 8.2 HP Submersible Sewage Pump FKV 80 60.2 T5 400Y/D Benefits

Handles solids up to 100 mm easily
Durable cast iron construction
High flow rate and head capacity
Reliable mechanical seals for long-term use

Dab 8.2 HP Submersible Sewage Pump FKV 80 60.2 T5 400Y/D Price List

No.	Name	Price
1	Dab 8.2 HP Submersible Sewage Pump FKV 80 60.2 T5 400Y/D Price	Contact us

Brand	Dab
Applications	Industrial, Sewage management, Wastewater management
Power (kW)	6
Power (HP)	8.2
Maximum Flow Rate (L/min)	1320
Maximum Delivery Head (m)	29.1
Weight (kg)	157
