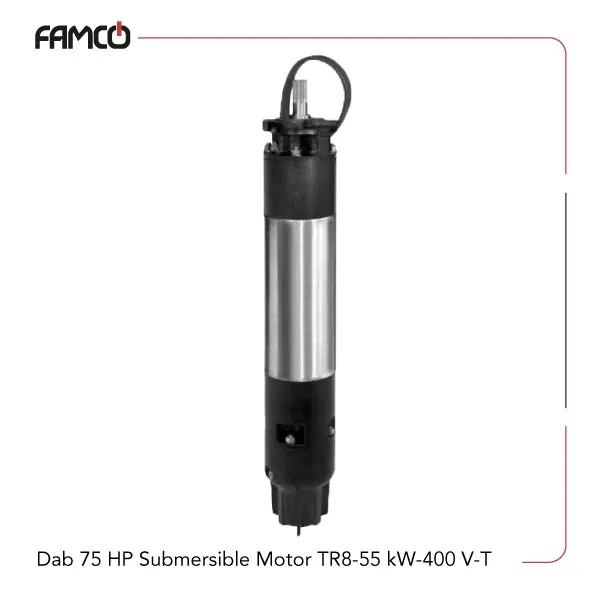

Dab 75 HP Submersible Motor TR8-55 kW-400 V-T

55 kW (75 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: DAB Pumps, Dab Submersible Motors

Overview of Dab 75 HP Submersible Motor TR8-55 kW-400 V-T

This industrial motor is built for heavy-duty tasks, offering high power and durability. It is ideal for applications requiring reliable performance in challenging environments. With a sturdy design, it can handle deep water operations and high temperatures. Its compatibility with various mounting options makes it versatile for different machinery. The motor’s protection features ensure longevity and minimal maintenance, making it a popular choice for industrial plants and water-related projects.

Dab 75 HP Submersible Motor TR8-55 kW-400 V-T Specifications

This motor offers a robust power output of 55 kW (75 HP), making it suitable for demanding industrial applications. It operates at a speed of 3000 rpm, providing reliable performance. The motor draws a current of 109

Dab 75 HP Submersible Motor TR8-55-kW-400-V-T

This Dab submersible motor features a flange size of NEMA 8″, compatible with various mounting setups. The protection class is IP58, with an option for IP68 upon request, offering excellent resistance against dust and water ingress. Cooling is managed with a flow speed of 0.5 meters per second, maintaining optimal operating temperatures. The motor can tolerate power supply fluctuations of +6% to -10%, ensuring stable operation in variable power conditions. It can be started up to 10 times per hour without issues. Designed for deep water applications, it can operate at depths up to 300 meters and withstand temperatures up to 60 bar. Its horizontal operation range covers motors from 30 HP to 125 HP, making it versatile for different industrial setups.

Specification	Value
Power (kW)	55
Power (HP)	75
Current (A)	109
Starting Current Ratio	5.9
P1 (W)	63953
Speed (rpm)	3000
Flanging	NEMA 8″
Protection Class	IP58 (IP68 on request)
Cooling Flow Speed (m/s)	0.5
Power Supply Tolerance	+6%/-10%
Max Starts	10/h
Max Operating Depth(m)	300
Max Operating Temperature (bar)	60
Horizontal Operation	30 HP – 125 HP

Dab 75 HP Submersible Motor TR8-55 kW-400 V-T Applications

Water pumping stations
Industrial machinery
Deep-sea exploration equipment
Chemical processing plants

Dab 75 HP Submersible Motor TR8-55 kW-400 V-T Benefits

High power output for demanding tasks
Excellent water and dust resistance
Stable operation with power fluctuations
Suitable for deep water and high-temperature environments

Dab 75 HP Submersible Motor TR8-55 kW-400 V-T Price List

No.	Name	Price
1	Dab 75 HP Submersible Motor TR8-55 kW-400 V-T Price	Contact us

Brand	Dab
Power (HP)	75
Power (kW)	55
Degree of Protection	IP58
Speed (RPM)	3000
