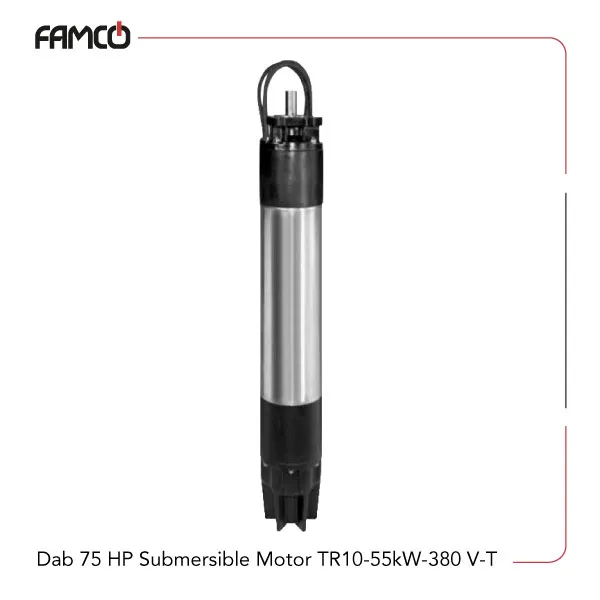

Dab 75 HP Submersible Motor TR10-55 kW-380 V-T Specifications
This robust motor provides a power output of 55 kW (75 HP), making it well-suited for demanding industrial applications. It operates at 1500 rpm and draws 113 amperes, with a starting current ratio of 5.3, ensuring strong and reliable startup performance under heavy loads. This Dab submersible motor is equipped with a 10-inch flanging interface, enabling secure installation and straightforward integration into various systems. The protection class is IP58, offering high resistance to dust and water ingress, and an IP68 variant is available upon request for environments requiring enhanced protection. Cooling is supported by a flow speed of 0.5 meters per second, ensuring effective thermal management during continuous operation. The power supply tolerance of +6%/-10% provides stability and adaptability across varying electrical conditions. With the capability of up to eight starts per hour, the motor is suitable for applications involving frequent operational cycles. Engineered for submersible use, the motor can operate at depths of up to 300 meters and withstand pressures up to 60 bar, making it ideal for underwater, deep-well, and marine environments.
| Specification | Value |
| Power (kW) | 55 |
| Power (HP) | 75 |
| Current (A) | 113 |
| Starting Current Ratio | 5.3 |
| P1 (W) | 62500 |
| Speed (rpm) | 1500 |
| Flanging | 10″ |
| Protection class | IP58 (IP68 on request) |
| Cooling flow speed | 0.5 m/s |
| Power supply tolerance | +6%/-10% |
| Max. starts | 8/h |
| Max operating depth | 300 m |
| Max operating temperature | 60 bar |
| Horizontal operation | 100 HP-230 HP |
Dab 75 HP Submersible Motor TR10-55 kW-380 V-T Applications
- Underwater exploration and subsea equipment
- Industrial pumping systems
- Deep-sea drilling operations
- Heavy-duty manufacturing machinery
Dab 75 HP Submersible Motor TR10-55 kW-380 V-T Benefits
- High power output for demanding tasks
- Excellent water and dust resistance with IP58/IP68
- Reliable operation at great depths and high pressure
- Flexible installation with 10-inch flanging
Dab 75 HP Submersible Motor TR10-55 kW-380 V-T Price List
| No. | Name | Price |
| 1 | Dab 75 HP Submersible Motor TR10-55 kW-380 V-T Price | Contact us |
