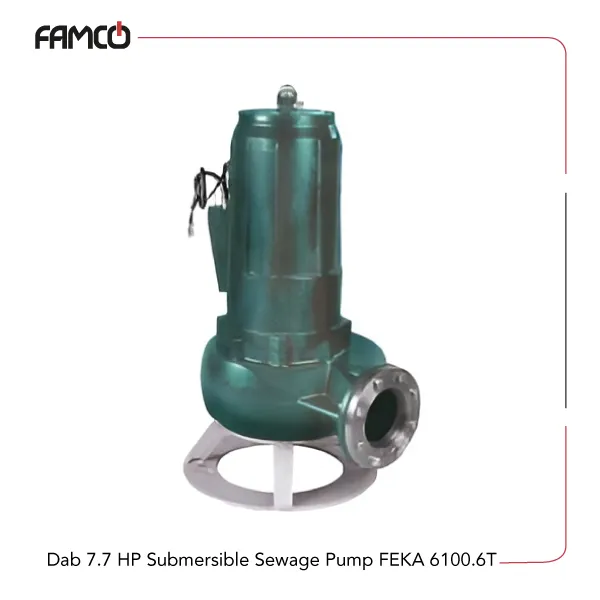

Dab 7.7 HP Submersible Sewage Pump FEKA 6100.6T Specifications
This pump features a single-channel, closed impeller made of durable cast iron, designed for efficient operation in various conditions. It can handle liquids with pH levels from 6 to 11 and operates within a temperature range of 0°C to 40°C. The FEKA 6100.6T Dab sewage pump allows for a free solids passage of 95 to 108 mm, making it suitable for handling slightly contaminated liquids. It is capable of delivering a maximum head of 15 meters and a flow rate up to 5000 liters per minute, powered by a 5.75 kW (7.7 HP) motor connected to a 400 V three-phase power supply. The Dab submersible pump you see here is designed for continuous operation when fully submerged and can be installed either fixed with a coupling or freely in a vertical position. Its maximum installation depth is 20 meters, making it versatile for various applications. The pump weighs approximately 330 kg, indicating a robust build suitable for demanding environments.
| Specification | Value |
| Type of impeller | single-channel, closed |
| Free solids passage (mm) | 95-108 |
| pH of the liquid | 6 to 11 |
| Liquid temperature range | 0°C to +40°C |
| Maximum installation depth | 20 metres |
| Installation | fixed using a coupling device, or free in the vertical position |
| Continuous duty | completely submerged pump |
| Impeller material | cast iron |
| Three-phase voltage | 400 V |
| Maximum delivery head (m) | 15 |
| Maximum flow rate (l/min) | 5000 |
| Power (kW) | 5.75 |
| Power (HP) | 7.7 |
| Weight (kg) | 330 |
Dab 7.7 HP Submersible Sewage Pump FEKA 6100.6T Performance Data
| m3 /h | 0 | 24 | 36 | 48 | 60 | 72 | 90 | 108 | 126 | 150 | 180 | 210 | 240 | 300 |
| l/min | 0 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2100 | 2500 | 3000 | 3500 | 4000 | 5000 |
| Head (m) | 15 | 14.2 | 13.7 | 13 | 12.6 | 11.5 | 10.9 | 9.3 | 8.8 | 8.5 | 6.2 | 3.5 | 2.8 | 1.2 |
Dab 7.7 HP Submersible Sewage Pump FEKA 6100.6T Applications
- Wastewater and sewage pumping
- Industrial fluid transfer
- Municipal water systems
- Flood control and drainage
Dab 7.7 HP Submersible Sewage Pump FEKA 6100.6T Benefits
- Durable cast iron construction for long-lasting use
- High flow capacity for efficient liquid transfer
- Flexible installation options for various setups
- Suitable for handling liquids with solids and varying pH
Dab 7.7 HP Submersible Sewage Pump FEKA 6100.6T Price List
| No. | Name | Price |
| 1 | Dab 7.7 HP Submersible Sewage Pump FEKA 6100.6T Price | Contact us |
